Contact for Pricing
Overview
- Convertible Main Lug to Main Breaker configuration
- 200 Amp Copper Bus with 60°C/75°C rating
- 12 spaces for 1-inch circuit breakers
- Combination flush/surface enclosure with white front
- Suitable for service entrance applications (per NEC)
Specifications
Amperage Rating | 125 A |
Color | White |
Current Rating | 200 A |
Enclosure | Indoor |
Interrupt Rating | 22 22 |
Load Regulation | 120/240V ac |
Material | Copper |
Mounting Type | Combination/Flush |
Number Of Feeders | Either |
Phase | 1 |
Series | ReliaHome T-Series |
Size | 12 spaces |
Standard | UL |
Wiring Configuration | 3 Wire |
Wiring Configuration | 3-Wire |
Package Dimensions (L x W x H) | 17.75 IN x 16 IN x 4.75 IN |
Package Dimensions (L x W x H) | 45.085 cm x 40.64 cm x 12.065 cm |
Package Weight (Imperial) | 14.890 L |
Package Weight (Metric) | 6.754 kg |
PLM1212W

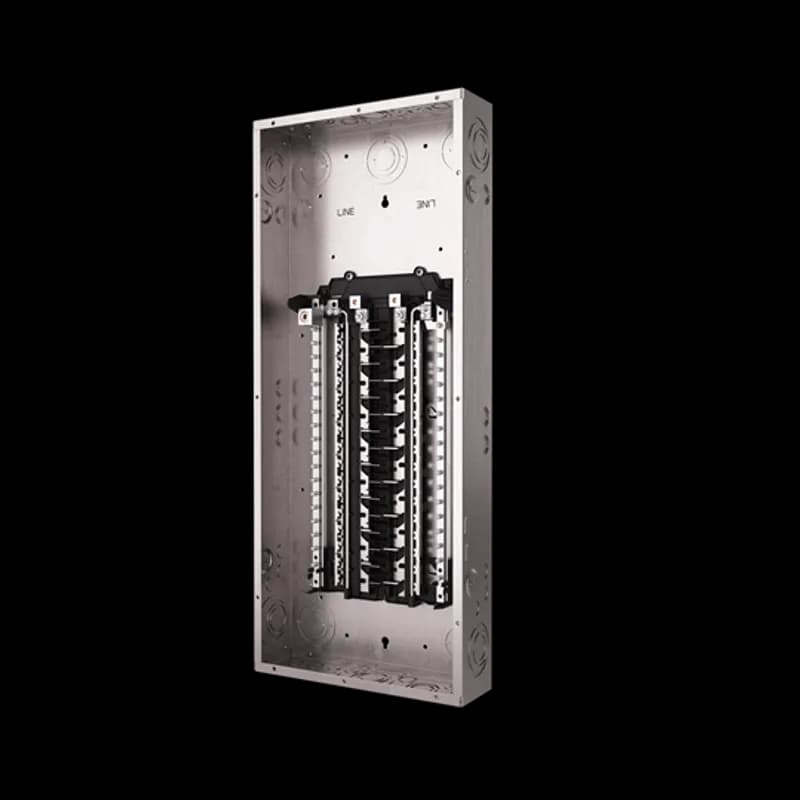

PowerMark PRO convertible plug-on neutral load centers arrive as main lug but have the capability to have a main circuit breaker installed in the field. All ABB load centers are rated up to 60 degree/75 degree centigrade and suitable for use as service entrance equipment when installed in accordance with electrical code. The PLM1212W features space for 12 - 1" circuit breakers and 24 circuits, a 125-ampere bus rating, copper bus bars, and a white combination/flush enclosure.
PLM3212W
PowerMark PRO convertible plug-on neutral load centers arrive as main lug but have the capability to have a main circuit breaker installed in the field. All ABB load centers are rated up to 60 degree/75 degree centigrade and suitable for use as service entrance equipment when installed in accordance with electrical code. The PLM3212W features space for 32 - 1" circuit breakers and 64 circuits, a 125-ampere bus rating, copper bus bars, and a white combination/flush enclosure.
PM3212W
PowerMark PRO main breaker plug-on neutral load centers arrive with a main circuit breaker installed for a convenient and swift install. Main circuit breakers allow for the user to stop the flow of electricity in the load center, shutting off all the power in the residence. The PM3212W features spaces for 32 - 1" circuit breakers and 64 circuits, a 125-ampere bus rating, copper bus bars, and a white combination/flush enclosure.
PLM3220W
PowerMark PRO convertible plug-on neutral load centers arrive as main lug but have the capability to have a main circuit breaker installed in the field. All ABB load centers are rated up to 60 degree/75 degree centigrade and suitable for use as service entrance equipment when installed in accordance with electrical code. The PLM3220W features space for 32 - 1" circuit breakers and 64 circuits, a 200-ampere bus rating, copper bus bars, and a white combination/flush enclosure.Frequently Asked Questions
What is the operating voltage range?
The device operates on 24V DC with a range of 20-28V DC.
What is the product's design type?
The product is designed as a modular load center for electrical distribution.
What are the installation requirements?
Installation must be done in accordance with electrical codes and standards.
What safety precautions should be taken?
Safety precautions include following installation guidelines and adhering to electrical codes.
What is the product's enclosure type?
The product features an indoor enclosure suitable for various applications.
Is the product compatible with other equipment?
The product is suitable for use with service entrance equipment when installed correctly.
What type of circuit breakers can be used?
The product is compatible with specific circuit breakers as per the manufacturer's guidelines.
What is the temperature range for operation?
The product is designed to operate within specified temperature limits, but exact values are not provided.
How to troubleshoot common issues?
Common issues can be addressed by checking connections and ensuring proper installation.
What maintenance is required for the product?
Regular maintenance should be performed to ensure optimal performance, but specific procedures are not detailed.
