ABB - Electrification

SUP403M-K25

Name: ABB SUP403M-K25 SMISSLINE TP Pluggable Miniature Circuit Breaker, 25A, K-Type, UL489
Brand: ABB - Electrification
SKU: SUP403M-K25
Availability: InStock

Contact for Pricing

Overview

The ABB Electrification SUP403M-K25 is a pluggable miniature circuit breaker designed for the SMISSLINE TP System, providing UL489 branch circuit protection. This device is rated for 480Y/277 VAC systems, ensuring reliable operation in industrial and commercial applications. Its tripping characteristic 'K' is optimized for circuits with higher inrush currents, such as those powering motors and transformers, with a rated tripping current of 1.6 x In. The rated current (In) is 25A, offering precise overcurrent and short-circuit protection. The pluggable design of the SUP403M-K25 facilitates rapid installation and replacement, minimizing downtime. Key specifications include a rated voltage of 480Y/277 V AC and a tripping characteristic K. The reference temperature for tripping characteristics is 40 °C. This breaker is suitable for general use and supplementary protection, with Application Codes: TC2, OL0, SC:U1. It features contact position indication and a trip position indicator. The housing is Insulation group I, RAL 7035, with a toggle. Mechanical endurance is rated for 20,000 operations, and electrical endurance for 6,000 operations. It meets protection degree standards of IP20, and IP40 when installed in an enclosure with a cover. The SUP403M-K25 is manufactured in the US. Leverage the advanced protection and ease of integration offered by ABB's SMISSLINE TP System with the SUP403M-K25 for enhanced electrical safety and system efficiency. SKU: SUP403M-K25.

ABB SUP403M-K25 SMISSLINE TP Pluggable Miniature Circuit Breaker
Rated Current (In): 25A
Tripping Characteristic: K (1.6 x In)
System Voltage: 480Y/277 VAC
UL489 Branch Circuit Protection

Specifications

Current Rating	25 A
Special Features	Pluggable Miniature circuit-breaker for the SMISSLINE TP System acc. UL489 in 277/480 VAC systems, Tripping characteristic K, Rated current In 25A
Voltage Rating	277/480 VAC
Package Dimensions (L x W x H)	7.17 IN x 3.86 IN x 4.13 IN
Package Dimensions (L x W x H)	18.2118 cm x 9.8044 cm x 10.4902 cm
Package Weight (Imperial)	0.790 L
Package Weight (Metric)	0.358 kg

DNGL

Ground Lug

83411621001

INTERLOCK UNIT,AR-12M(SEPERATE),GMC(D)-6~16M

76512124011

ZCT,LZR-030(V),EMPR,EXP

1SNK905302R0000

JB5-2 2 POLE JUMPER 5.2MM SPACING

1SNK905305R0000

JB5-5 5 POLE JUMPER 5.2MM SPACING

LCMA6-8-C

One-hole, metric conductor, standard barrel with window lug, 4-6mm wire, M8 stud hole.

PS-60

Power supply for DIN-rail

C3SC10106GY

N3 SCREW COVER - 10X10X6 - GRA

ACS380-040S-07A2-4

ACS380 AC Drive, 3-380-480V In, 3HP, 6A, Type OPEN, 1.5 overload, Integrated, HxWxD 6.69x2.76x7.52 in, Module

1338006700

MC-50a AC120V 50/60Hz SCREW 1a1b (Metasol) EXP (MC50A-30-11-K7-S-E)

1270040900

GMD-16M DC240V 3W 1b EXP (GMD16M-30-01-UD-3W-S-E)

1SNK705010R0000

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

CR104PXN1B

Pushbuttons. 104P heavy duty Oiltight Pushbutton. Nameplate. XN1B PR.No. CR100699

CR324E610F

General Electric Control Products. Nema Power Devices. Ol Relay 610F8364

XT2NU3090BFF000XXX

C.BREAKER TMAX XT2N 125 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 90 I3=450...900 A

NNC75X75WH2

The NNC75X75WH2 Halogen-Free Wide Slot Wiring Duct is used to route, protect, and manage wires near sensitive electronic equipment and in environments where heat resistance or public safety is a concern. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95 C (203 F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 2.85" x 2.97" (72.4 mm x 75.4 mm) and 6.6' (2 m) long. Cover included. Color White. 5 pieces per package.

3194213000K04

DS9 RECEPTACLE POLY BLUE SIZE 5 IP 66/67/69 3P+G 150 A 480 VAC 60 Hz

C2G0150MQMJ

HPS Open Style Control Transformer, 150VA 240x480V-120x240V 50/60Hz

SU201M-K25

SU201M-K25 Miniature Circuit Breaker K-Char., 10kA, 25A, 1P UL489

SUP401M-K25

Pluggable Miniature circuit-breaker for the SMISSLINE TP System acc. UL489 in 277/480 VAC systems, Tripping characteristic K, Rated current In 25A

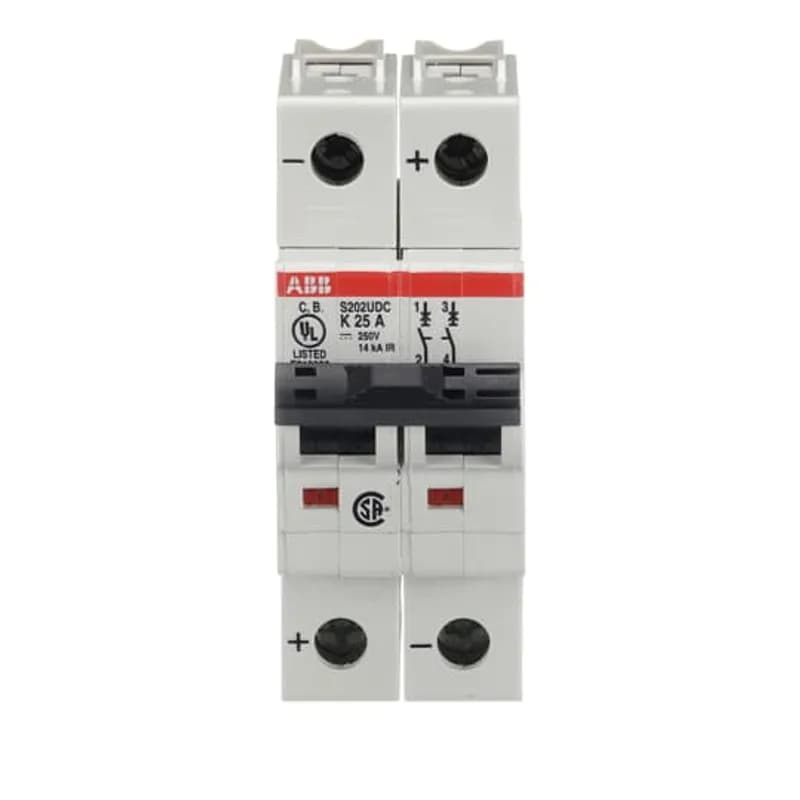

S202UDC-K25

S201MUC-K25

All current System pro M compact® accessories can be combined easily with the new model line. Whether warehousing or project engineering, planning, installing or maintaining your equipment, the S 200 M UC is a simple and flexible solution.

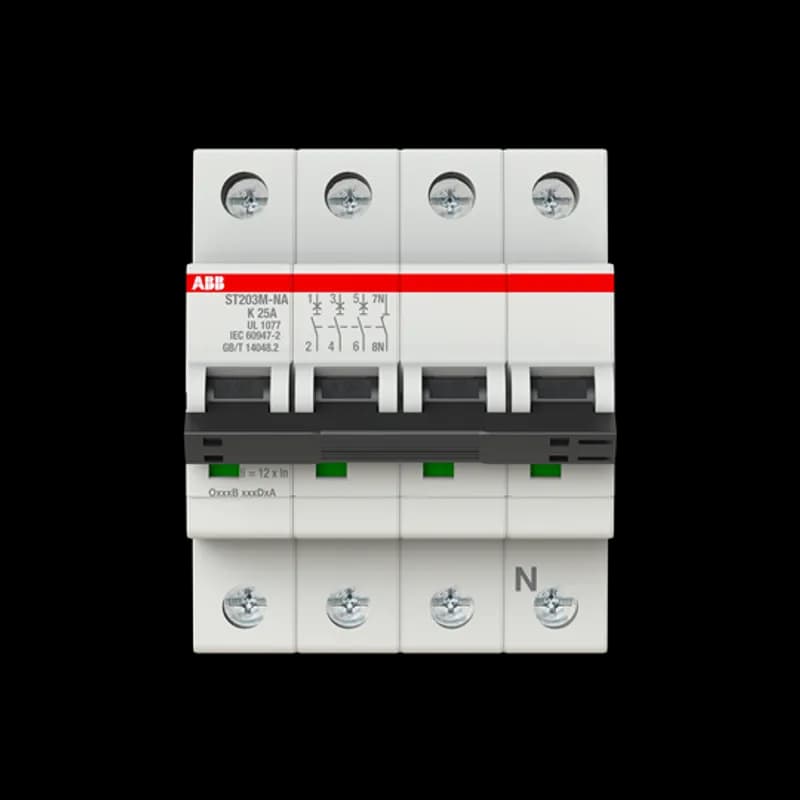

ST203M-K25NA

ST203M-K25NA Miniature Circuit Breaker ST203M-K25NA Miniature Circuit Breaker K-Char., 10kA, 25A, 3P+NA

S804S-K25

The S804S-K25 is a 4-pole High Performance Circuit breaker with K-Characteristic, with cage terminal and a rated current of 25 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804S-K25 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804S-K25 more comfortable. Due to the fast arc extinction of S804S-K25 your application will be secured.

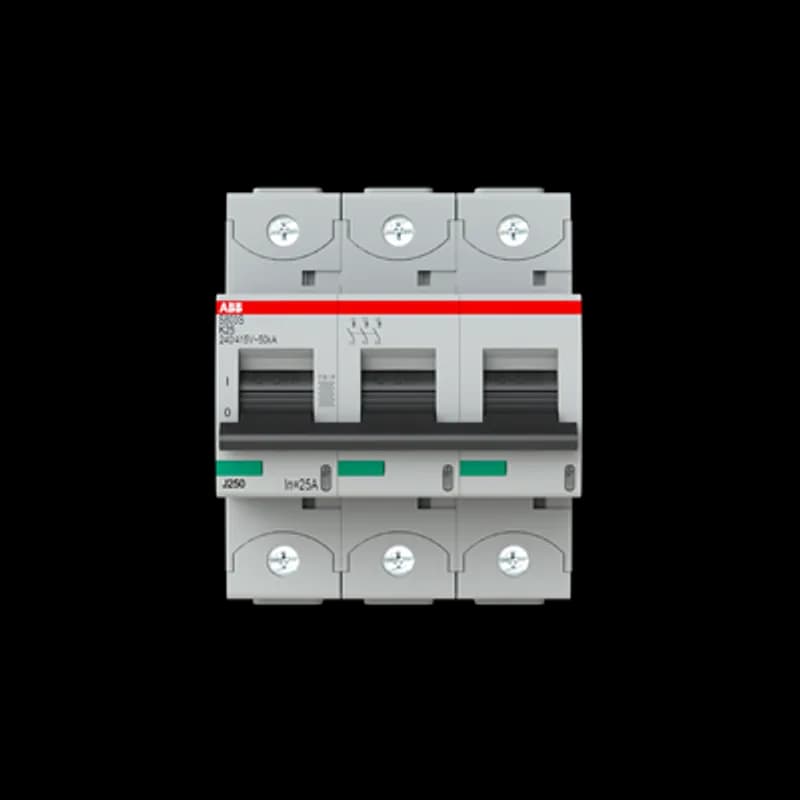

S803S-K25

The S803S-K25 is a 3-pole High Performance Circuit breaker with K-Characteristic, with cage terminal and a rated current of 25 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-K25 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-K25 more comfortable. Due to the fast arc extinction of S803S-K25 your application will be secured.

ST202M-K25

ST202M-K25 Miniature Circuit Breaker ST202M-K25 Miniature Circuit Breaker K-Char., 10kA, 25A, 2P

PLU701M-K25L

PL 25A 1P 240V-35KA AC K LEFT

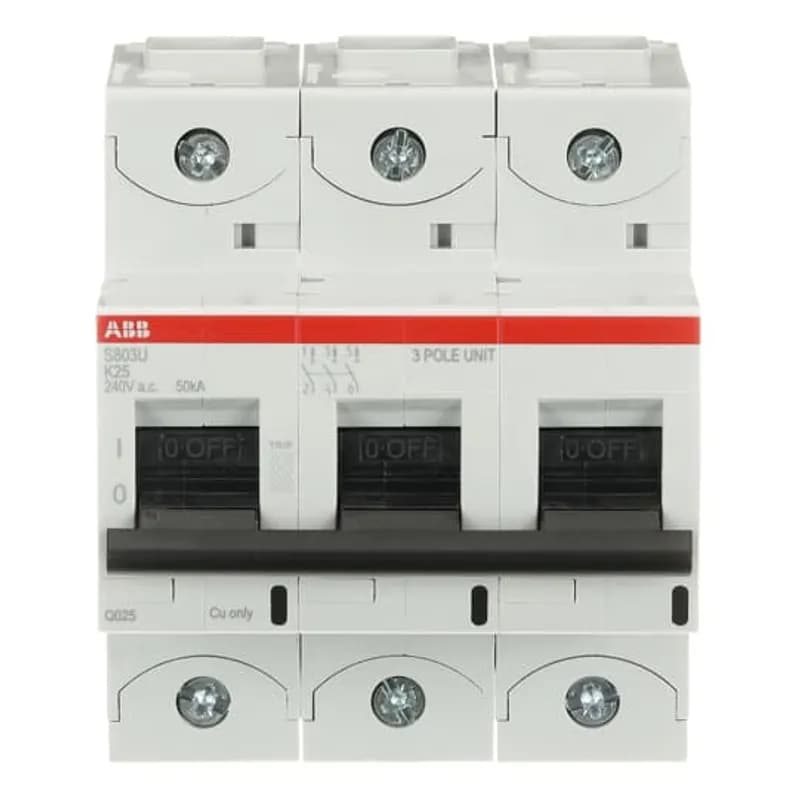

S803U-K25

S803U-K25 3 Pole K Characteristic 25A 50kA 240/415VAC High Performance Circuit Breaker HPCB

ST201M-K25NA

ST201M-K25NA Miniature Circuit Breaker ST201M-K25NA Miniature Circuit Breaker K-Char., 10kA, 25A, 1P+NA

S801S-K25

The S801S-K25 is a 1-pole High Performance Circuit breaker with K-Characteristic, with cage terminal and a rated current of 25 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S801S-K25 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S801S-K25 more comfortable. Due to the fast arc extinction of S801S-K25 your application will be secured.

Frequently Asked Questions

What is the rated voltage for the ABB SUP403M-K25?

The ABB SUP403M-K25 is rated for 480Y/277 V AC systems.

What tripping characteristic does this breaker have?

This breaker features a Tripping Characteristic K, suitable for circuits with higher inrush currents.

What is the rated current of the SUP403M-K25?

The rated current (In) for the ABB SUP403M-K25 is 25A.

Is this breaker UL489 listed?

Yes, the ABB SUP403M-K25 is UL489 listed for branch circuit protection.

What type of applications is the K-Type tripping characteristic suitable for?

The K-Type tripping characteristic is optimized for applications requiring higher inrush current handling capability, such as protecting circuits with inductive loads like motors and transformers.

What is the reference temperature for tripping characteristics?

The reference temperature for tripping characteristics for this breaker is 40 °C.
