ABB - Electrification

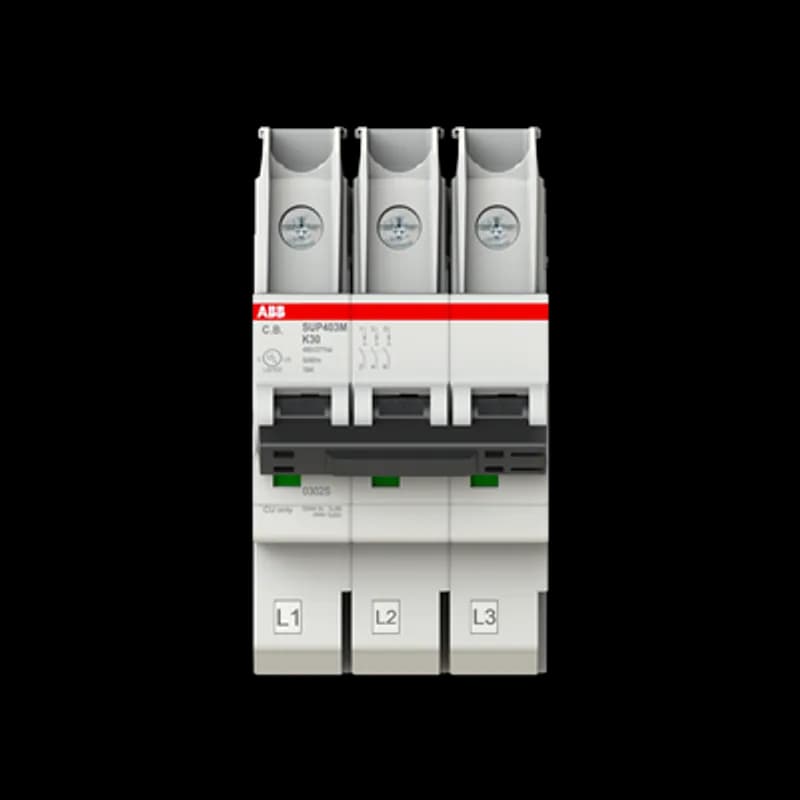

SUP403M-K13
Contact for Pricing
Overview
- UL489 Listed Miniature Circuit Breaker for Branch Circuit Protection
- Pluggable design for SMISSLINE TP System integration
- K-Type Tripping Characteristic for high inrush currents
- Rated Current (In): 13A
- System Voltage: 277/480 VAC
- Rated Interrupting Capacity: 10 kA
- Mechanical Endurance: 20,000 operations
- Shock Resistance: 25 g
- Real Contact Position Indicator (green OFF / red ON)
- Trip Position Indicator (gray NO TRIP / orange TRIP)
Specifications
Connection Type | Pluggable |
Current Rating | 13 A |
Ip Rating | IP20/IP40 |
Mounting Type | DIN Rail |
Poles | 1P |
Series | SMISSLINE TP |
Special Features | Pluggable Miniature circuit-breaker for the SMISSLINE TP System acc. UL489 in 277/480 VAC systems, Tripping characteristic K, Rated current In 13A |
Voltage Rating | 277/480 VAC |
Package Dimensions (L x W x H) | 7.17 IN x 3.86 IN x 4.13 IN |
Package Dimensions (L x W x H) | 18.2118 cm x 9.8044 cm x 10.4902 cm |
Package Weight (Imperial) | 0.790 L |
Package Weight (Metric) | 0.358 kg |
Frequently Asked Questions
What is the rated interrupting capacity of this breaker?
The rated interrupting capacity is 10 kA, meeting UL489 standards for branch circuit protection.
What is the tripping characteristic of the SUP403M-K13?
The SUP403M-K13 features a K-type tripping characteristic, designed to handle high inrush currents typical in motor control and transformer-fed loads.
What voltage ratings does the SUP403M-K13 support?
The SUP403M-K13 supports 277 VAC for 1P and 480Y/277 VAC for 2-4P configurations, meeting UL489 requirements.
Is the SUP403M-K13 compatible with the SMISSLINE TP System?
Yes, the SUP403M-K13 is designed as a pluggable miniature circuit-breaker for the SMISSLINE TP System, enabling quick installation and maintenance.
What is the mechanical endurance of the SUP403M-K13?
The mechanical endurance is rated at 20,000 operations, ensuring long-term reliability in industrial applications.
What is the protection degree of the SUP403M-K13?
The protection degree is IP20 (IP40 when installed with a cover), providing resistance to solid foreign objects and limited liquid ingress.
What is the reference temperature for tripping characteristics?
The reference temperature for tripping characteristics is 40°C, as specified for the SUP403M-K13.
What is the electrical endurance of the SUP403M-K13?
The electrical endurance is 6,000 operations with a 1-second ON and 9-second OFF cycle, ensuring reliable switching performance.
How to Install the ABB SUP403M-K13 Miniature Circuit Breaker
Step-by-step guide to installing the ABB SUP403M-K13 pluggable miniature circuit breaker in the SMISSLINE TP System.
Estimated time: 15m
Tools needed:
Screwdriver, DIN rail mounting tool (if required)
Supplies needed:
Mounting screws (if not pre-installed), SMISSLINE TP base unit
- Prepare the mounting surface
Ensure the SMISSLINE TP base unit is securely mounted on a flat, stable surface. Verify the DIN rail is properly aligned and free of obstructions.
- Position the circuit breaker
Align the SUP403M-K13 with the designated slot on the SMISSLINE TP base unit. Ensure the breaker’s pluggable terminals are facing the correct direction for engagement.
- Engage and secure the breaker
Firmly press the breaker into the base unit until it clicks into place, confirming a secure connection. If required, secure the breaker to the DIN rail using the provided mounting screws.
- Connect the wiring
Connect the load and line wires to the breaker’s terminals, ensuring proper torque (refer to ABB wiring guidelines). Verify that all connections are tight and insulated.
- Verify installation
Power on the system and test the breaker by simulating a fault condition (if safe to do so). Check the contact position indicator (green OFF/red ON) and trip position indicator (gray NO TRIP/orange TRIP) for correct operation.
