ABB - Electrification

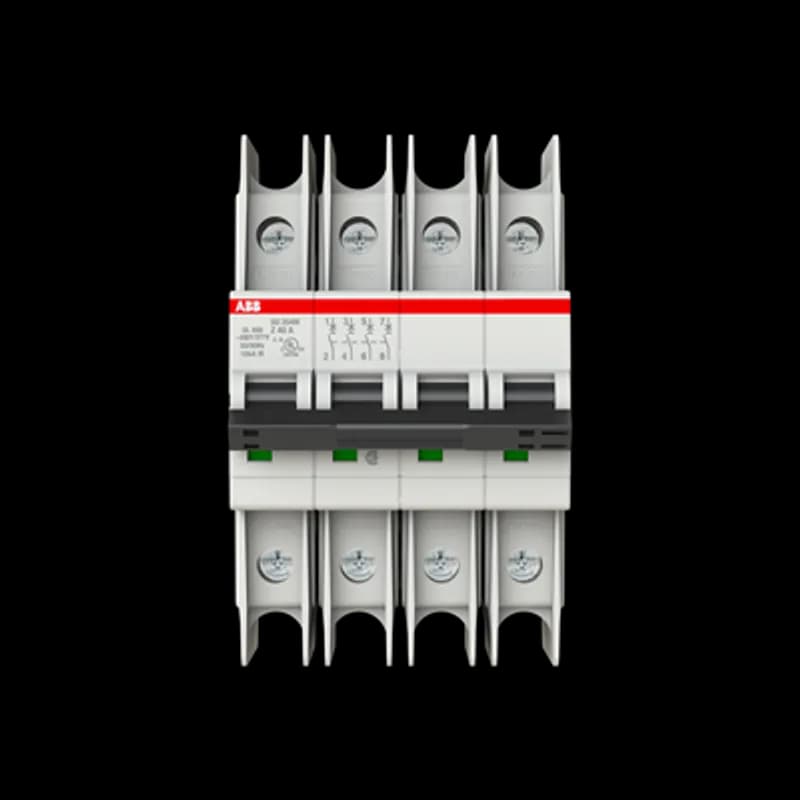

S204MUC-Z40
Contact for Pricing
Overview
- 4-pole configuration for comprehensive circuit control.
- Rated current of 40A, suitable for various load requirements.
- Fully compatible with the entire ABB System pro M compact® accessory line.
- Simplifies warehousing, planning, and installation processes.
- Manufactured in the US by ABB - Electrification.
Specifications
Amperage Rating | 40 A |
Amperage Rating, Maximum | 40 A |
Amperage Rating, Minimum | 40 A |
Application | Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits. |
Interrupt Rating | (500 V DC) 10 kA / (480Y / 277 V AC) 6 kA |
Number of Poles | 4 |
Series | System pro M compact |
Size | 82x110x108mm |
Special Features | The miniature circuit breaker S 200 M UC extends the establishedABB System pro M compact® product range with an MCB for DC and AC applications. The S 200 M UC impresses with its performance range and the accordingly large amount of approvals. Its high inbuilt short circuit breaking capacity across theentire model line, its flexible AC and DC application and its approval and compliance in accordance with all major international and local standards make it truly unique.All current System pro M compact® accessories can be combined easily with the new model line. Whether warehousing or project engineering, planning, installing or maintaining your equipment, the S 200 M UC is a simple and flexible solution. |
Standard | CSA 22.2 No. 235 / IEC/EN 60947-2 / UL 1077 |
Trip Type | Z |
Tripping Characteristic | Z |
Type | Contactors |
Voltage Rating | (500 V DC) / (480Y / 277 V AC) |
Package Dimensions (L x W x H) | 3.07 IN x 3.62 IN x 3.15 IN |
Package Dimensions (L x W x H) | 7.7978 cm x 9.1948 cm x 8.001 cm |
Package Weight (Imperial) | 1.200 L |
Package Weight (Metric) | 0.544 kg |
Frequently Asked Questions
What is the rated current of the ABB S204MUC-Z40?
The ABB S204MUC-Z40 has a rated current (I_n) of 40A.
How many poles does the S204MUC-Z40 have?
The ABB S204MUC-Z40 is a 4-pole accessory.
Is the S204MUC-Z40 compatible with other System pro M compact accessories?
Yes, all current System pro M compact® accessories can be combined easily with the S200MUC model line, including the S204MUC-Z40.
Where is the ABB S204MUC-Z40 manufactured?
The ABB S204MUC-Z40 is manufactured in the US.
What standards does the ABB S204MUC-Z40 comply with?
The ABB S204MUC-Z40 complies with IEC 60898-1 and UL 489 standards.
