ABB - Electrification

PSTX1250-600-70

Name: ABB PSTX1250-600-70 softstarter for 1250A motors, 208-600V AC, with bypass & Fieldbus options.
Brand: ABB - Electrification
SKU: PSTX1250-600-70
Availability: InStock

Contact for Pricing

Overview

The ABB PSTX1250-600-70 softstarter is a high-capacity three-phase motor control solution designed for medium to large industrial applications. Rated for a maximum operational current of 1250 A (inline) or 2160 A (inside delta), this unit operates efficiently across a voltage range of 208–600 V AC with a control supply voltage of 100–250 V AC at 50/60 Hz. Ideal for motors from 30 A to 1250 A (inline) or 52 A to 2160 A (delta), the PSTX1250-600-70 delivers reliable soft start and stop functionality through voltage or torque ramp control, reducing mechanical stress and electrical surges during motor startup. Key features include built-in bypass for energy savings and simplified installation, programmable digital inputs, and relay outputs (RUN, TOR, Event) for system monitoring. The detachable full graphic display (IP66, 4X outdoor rated) supports 17 languages for easy configuration and diagnostics. Communication flexibility is unmatched with integrated Modbus RTU, optional ANYBUS modules (Profinet, Profibus, Modbus TCP, Ethernet/IP), or external adaptors for seamless automation integration. Additional capabilities include current limiting, kickstart, analog output (for current, voltage, power factor measurement), motor heating protection, pump cleaning mode, jogging (slow speed forward/reverse), braking, stand-still brake, diagnostics, sequence start, and emergency/fire pump mode. The unit supports up to 10 starts per hour (PSTX20–250) or 6 starts per hour (PSTX300–1000) with overload class 10 compliance. Operating temperature range is -25°C to +40°C (derate above 40°C), with storage from -40°C to +70°C. Maximum altitude is 4000 m (13,123 ft) with current derating required above 1000 m. Typical applications include pumps, fans, compressors, conveyors, and other heavy-duty industrial equipment where smooth motor acceleration and deceleration are critical for system longevity and energy efficiency.

Rated current: 30–1250 A (inline), 52–2160 A (delta)
Operating voltage: 208–600 V AC, control voltage: 100–250 V AC (50/60 Hz)
Built-in bypass for energy savings and easy installation
Communication: Modbus RTU (built-in), optional ANYBUS modules (Profinet, Profibus, Modbus TCP, Ethernet/IP)
Advanced features: Current limit, kickstart, jogging, braking, motor heating protection, pump cleaning mode

Specifications

Connection Type	Inline or Delta
Current Rating	1250 A
Frequency	50/60 Hz
IP Rating	IP66
Series	PSTX
Voltage Rating	208...600 V AC
Package Dimensions (L x W x H)	14.45 IN x 20.28 IN x 14.21 IN
Package Dimensions (L x W x H)	36.703 cm x 51.5112 cm x 36.0934 cm
Package Weight (Imperial)	142.660 L
Package Weight (Metric)	64.711 kg

1270040900

GMD-16M DC240V 3W 1b EXP (GMD16M-30-01-UD-3W-S-E)

1311001000

MT-63 34A 3D SCREW EXP (MT63-3D-34-S-E)

LCMA6-8-C

One-hole, metric conductor, standard barrel with window lug, 4-6mm wire, M8 stud hole.

DNGL

Ground Lug

BLB-02

CONTACT BLOCK BU BLB-02

BFB-40

CONTACT BLOCK BU BFB-40

1SNK705010R0000

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

C2G0150MQMJ

HPS Open Style Control Transformer, 150VA 240x480V-120x240V 50/60Hz

PS-60

Power supply for DIN-rail

0626030563

BK63H 1P B2A 10kA 120/240VAC UL1077

ACS380-040S-07A2-4

ACS380 AC Drive, 3-380-480V In, 3HP, 6A, Type OPEN, 1.5 overload, Integrated, HxWxD 6.69x2.76x7.52 in, Module

XT2NU3090BFF000XXX

C.BREAKER TMAX XT2N 125 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 90 I3=450...900 A

CR104PXN1B

Pushbuttons. 104P heavy duty Oiltight Pushbutton. Nameplate. XN1B PR.No. CR100699

1338006700

MC-50a AC120V 50/60Hz SCREW 1a1b (Metasol) EXP (MC50A-30-11-K7-S-E)

C3SC10106GY

N3 SCREW COVER - 10X10X6 - GRA

NNC75X75WH2

The NNC75X75WH2 Halogen-Free Wide Slot Wiring Duct is used to route, protect, and manage wires near sensitive electronic equipment and in environments where heat resistance or public safety is a concern. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95 C (203 F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 2.85" x 2.97" (72.4 mm x 75.4 mm) and 6.6' (2 m) long. Cover included. Color White. 5 pieces per package.

3194213000K04

DS9 RECEPTACLE POLY BLUE SIZE 5 IP 66/67/69 3P+G 150 A 480 VAC 60 Hz

CR324E610F

General Electric Control Products. Nema Power Devices. Ol Relay 610F8364

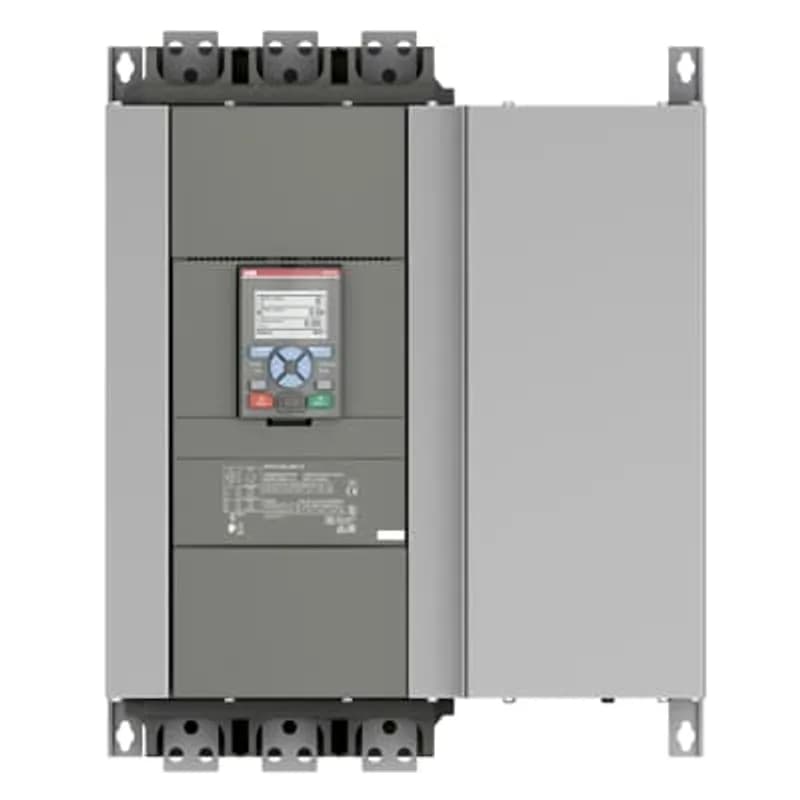

PSTX1250-690-70
