ABB - Electrification

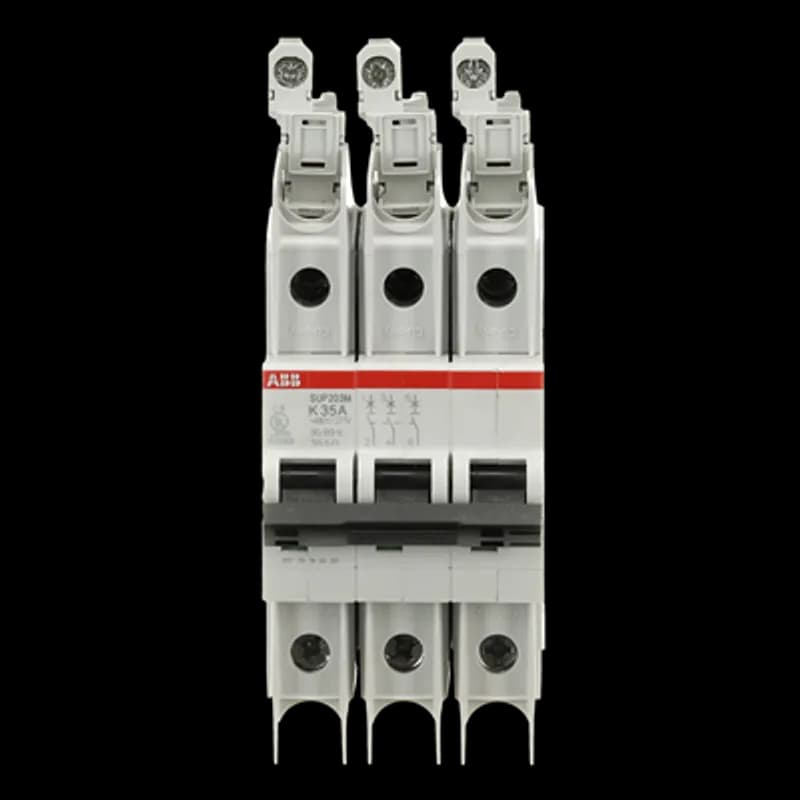

PLU703M-K25R
UPC: 888614981638
Contact for Pricing
Overview
- 3-pole, 25 Ampere, 240 VAC AC circuit breaker
- 35 kA interrupt rating at 240V for robust protection
- Bi-directional cylinder-lift terminals for versatile cable connections
- Right-mount installation on 35 mm DIN rail (EN 60715)
- Manufactured in the USA by ABB - Electrification
Specifications
Connection Type | Bi-directional cylinder-lift terminals (top and bottom) |
Connection Type | Cylinder-lift terminals (IEC 25mm² / UL/CSA AWG 18-4) |
Current Rating | 25 A |
Frequency | 50/60 Hz |
Material | Metal/Copper (implied by circuit breaker construction) |
Mounting Type | Right-mounting, 35 mm DIN rail (EN 60715) |
Mounting Type | Right-mount on 35 mm DIN rail (EN 60715) |
Poles | 3 |
Poles | 3P |
Series | PLU703M |
Series | PLU series |
Voltage Rating | 240 Vac |
Package Dimensions (L x W x H) | 4.61 IN x 3.17 IN x 4.89 IN |
Package Dimensions (L x W x H) | 11.7094 cm x 8.0518 cm x 12.4206 cm |
Package Weight (Imperial) | 1.750 L |
Package Weight (Metric) | 0.794 kg |
Frequently Asked Questions
What is the current rating of the ABB PLU703M-K25R circuit breaker?
The ABB PLU703M-K25R circuit breaker is rated for 25 Amperes.
What is the voltage rating for this ABB circuit breaker?
This ABB circuit breaker is rated for 240 VAC.
What is the interrupt rating of the PLU703M-K25R?
The PLU703M-K25R has an interrupt rating of 35 kA at 240V.
How is the ABB PLU703M-K25R circuit breaker mounted?
The breaker is designed for right-mount installation on a 35 mm DIN rail (EN 60715) via a fast clip device.
What type of terminals does the PLU703M-K25R feature?
It features bi-directional cylinder-lift terminals at the top and bottom.
What cable sizes are compatible with the terminals?
The terminals are compatible with IEC 25mm² cable sizes and UL/CSA AWG 18-4.
What is the frequency range supported by this breaker?
The breaker supports a frequency range of 50/60 Hz.
Where is the ABB PLU703M-K25R circuit breaker manufactured?
This ABB circuit breaker is manufactured in the USA.
How to Install the ABB PLU703M-K25R Circuit Breaker
Step-by-step guide for mounting the ABB PLU703M-K25R circuit breaker onto a 35 mm DIN rail.
Estimated time: 15m
Tools needed:
Flathead screwdriver (for terminal tightening), DIN rail mounting tool (optional, for easier rail installation)
Supplies needed:
35 mm DIN rail (EN 60715), Appropriate gauge electrical wire, Wire ferrules (recommended for stranded wire)
- Prepare the DIN Rail
Ensure the 35 mm DIN rail is securely mounted and accessible in the intended location.
- Attach the Circuit Breaker
Align the fast clip device on the back of the ABB PLU703M-K25R with the DIN rail. Push the breaker firmly onto the rail until it clicks into place. For removal, pull the breaker downwards while engaging the clip from the bottom.
- Connect Electrical Wiring
Prepare the electrical wires according to the required gauge and strip them appropriately. Insert the wires into the bi-directional cylinder-lift terminals at the top and bottom of the breaker. Tighten the terminal screws to the specified torque: 2.8 Nm (IEC) or 25 in-lbs (UL/CSA).
- Verify Connections
Double-check that all wire connections are secure and that the breaker is properly seated on the DIN rail. Ensure correct polarity if applicable to your system.
