ABB - Electrification E92/30SJ - E 90 30 J is a fuseholder for overcurrent and short circuit protection specific for class J fuses
ABB - Electrification

E92/30SJ

Contact for Pricing

Overview

The ABB E92/30SJ is a Class J fuseholder designed for reliable overcurrent and short-circuit protection in industrial electrical systems. This panel-mount unit is rated for 30A and 600V AC/DC, with a high interrupting capacity of 200kA. Constructed with durable steel and tin-plated copper contacts, it ensures corrosion resistance and longevity. The E92/30SJ series offers flexibility with 1, 2, and 3-pole configurations, and features screw terminals for secure conductor connections. It is compatible with rigid and stranded copper conductors ranging from 14-10 AWG and 14-8 AWG, respectively. Designed for easy installation, it includes 1/2" NPT conduit entry. The fuseholder meets UL 4248-8 and CSA C22.2 No. 59 standards. Operating temperature range is -40°C to +85°C. Certifications include UL, cUL, and CE. This ABB fuseholder is suitable for power distribution, machinery control, and panel assemblies. The E92/30SJ is specifically engineered for use with Class J fuses, which are recognized for their high performance in protecting against overcurrent and short-circuit conditions. Its robust construction and compliance with stringent safety standards make it a dependable choice for critical applications in industrial environments. Manufacturer SKU: E92/30SJ.
  • Class J fuseholder for overcurrent and short-circuit protection
  • Rated 30A continuous current and 600V AC/DC
  • High interrupting capacity of 200kA
  • Durable steel construction with tin-plated copper contacts
  • Panel mount design with 1/2" NPT conduit entry

Specifications

Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
Connection Type
Screw Terminals
Current Rating
30 A
Material
Steel and tin-plated copper
Mounting Type
Panel Mount
Poles
1, 2, and 3-pole
Series
E92
Size
82x110x108mm
Special Features
E 90 30 J is a fuseholder for overcurrent and short circuit protection specific for class J fuses
Standard
RoHs, CSA, cUL, CE, GOST
Type
Contactors
Voltage Rating
600 V AC/DC
Package Dimensions (L x W x H)
5.512 IN x 4.449 IN x 2.756 IN
Package Dimensions (L x W x H)
14.0005 cm x 11.3005 cm x 7.0002 cm
Package Weight (Imperial)
1.190 L
Package Weight (Metric)
0.540 kg
PRIMARY FUSE KIT, CLASS CC, 2POLE

FKTP-1001

PRIMARY FUSE KIT, CLASS CC, 2POLE
E 92/30S CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses

E92/30SCC

E 92/30S CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses
E 93N/30 CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses

E93N/30CC

E 93N/30 CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses
E 90 50/125 fuse holders are appropriate to protect against overloads and short circuits. They are designed for use with cylindrical fuses from 50 to 125 A.

E93/50S

E 90 50/125 fuse holders are appropriate to protect against overloads and short circuits. They are designed for use with cylindrical fuses from 50 to 125 A.
E 90 50/125 fuse holders are appropriate to protect against overloads and short circuits. They are designed for use with cylindrical fuses from 50 to 125 A.

E91/125S

E 90 50/125 fuse holders are appropriate to protect against overloads and short circuits. They are designed for use with cylindrical fuses from 50 to 125 A.
E 90 50/125 fuse holders are appropriate to protect against overloads and short circuits. They are designed for use with cylindrical fuses from 50 to 125 A.

E93N/125S

E 90 50/125 fuse holders are appropriate to protect against overloads and short circuits. They are designed for use with cylindrical fuses from 50 to 125 A.

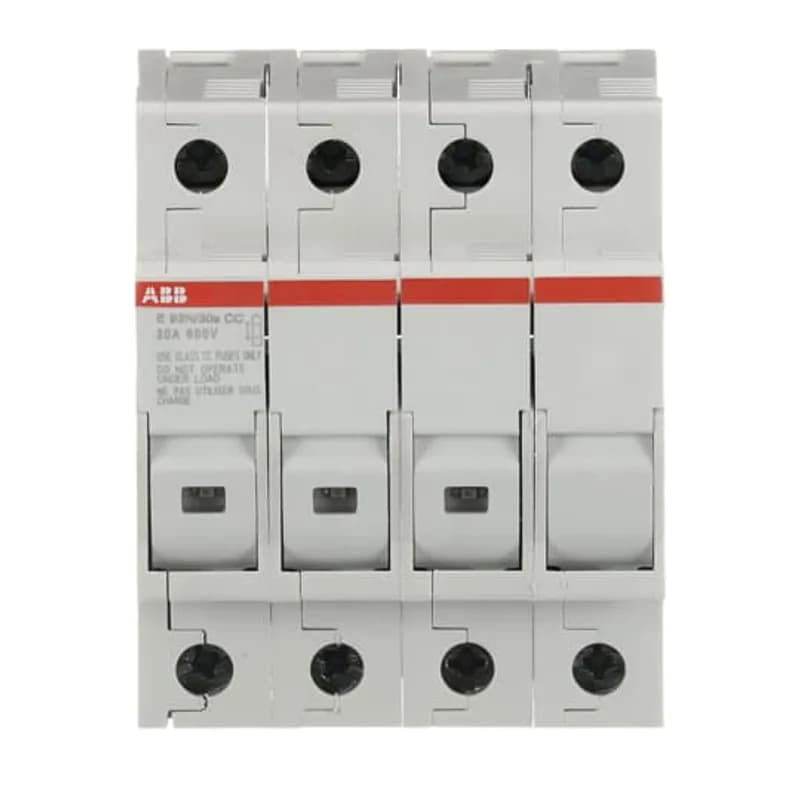

E 93N/30S CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses

E93N/30SCC

E 93N/30S CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses
E 91N/30 CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses

E91N/30CC

E 91N/30 CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses
E 93/32 is a fuseholder for overcurrent and short circuit protection. No blown fuse indicator.

E93/32

E 93/32 is a fuseholder for overcurrent and short circuit protection. No blown fuse indicator.

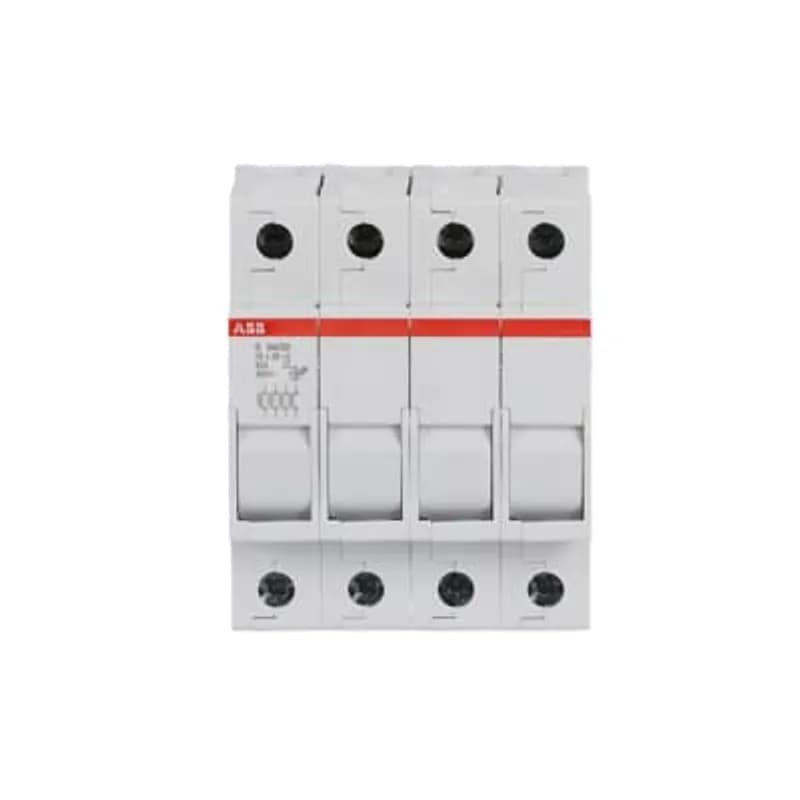

E 94/32 is a fuseholder for overcurrent and short circuit protection. No blown fuse indicator.
