ABB - Electrification C3SS7-30B-20 - Compact Selector Switch - 3-pos Fixed B&C Return A to B - Short handle - Black - Non-illuminated - Chrome metal - 2NO
ABB - Electrification

C3SS7-30B-20

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB C3SS7-30B-20 is a compact 3-position selector switch designed for industrial control panels where space efficiency and reliable operation are critical. This non-illuminated unit features a durable chrome metal bezel and a short black plastic handle, optimized for installations with limited panel space without compromising functionality. The switch operates with a fixed return to position B from both B and C positions, ensuring predictable operational sequences essential for safety and efficiency in automated systems. Key specifications include 2 normally open (2NO) contacts, providing essential switching capabilities for control circuits. The 30mm mounting diameter allows straightforward integration into standard control panels, while the chrome metal construction delivers superior resistance to corrosion and wear in harsh industrial environments. The short handle design reduces panel space requirements while maintaining ergonomic operation. This selector switch is ideal for manufacturing automation, power distribution systems, and process control applications where reliable operator interface components are required. The C3SS7-30B-20 meets ABB's rigorous standards for pilot devices, offering consistent performance in demanding conditions. The unit weighs 0.032 kg per piece and is supplied in packages of 10 units. The C3SS7-30B-20 provides a reliable operator interface solution for control panels requiring precise switching between three positions with automatic return to the central B position. Its chrome metal bezel ensures long-term durability, while the 2NO contact configuration supports standard control circuit requirements. The 30mm panel mount design aligns with common industrial panel standards, facilitating easy installation and replacement.
  • 3-position selector switch with fixed return to position B from B and C
  • Chrome metal bezel with 30mm panel mount diameter
  • 2 normally open (2NO) contacts for control circuit switching
  • Short black plastic handle for space-efficient installations
  • Non-illuminated design with 0.032 kg per unit weight

Specifications

Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
Color
Black
Material
Chrome metal
Mounting Type
30mm mounting
Poles
2NO
Series
C3SS7
Series
Compact Selector Switch
Size
82x110x108mm
Size
30mm mounting diameter
Special Features
Compact Selector Switch - 3-pos Fixed B&C Return A to B - Short handle - Black - Non-illuminated - Chrome metal - 2NO
Standard
RoHs, CSA, cUL, CE, GOST
Type
Contactors
Package Dimensions (L x W x H)
3.93 IN x 3.93 IN x 1.18 IN
Package Dimensions (L x W x H)
9.9822 cm x 9.9822 cm x 2.9972 cm
Package Weight (Imperial)
0.070 L
Package Weight (Metric)
0.032 kg

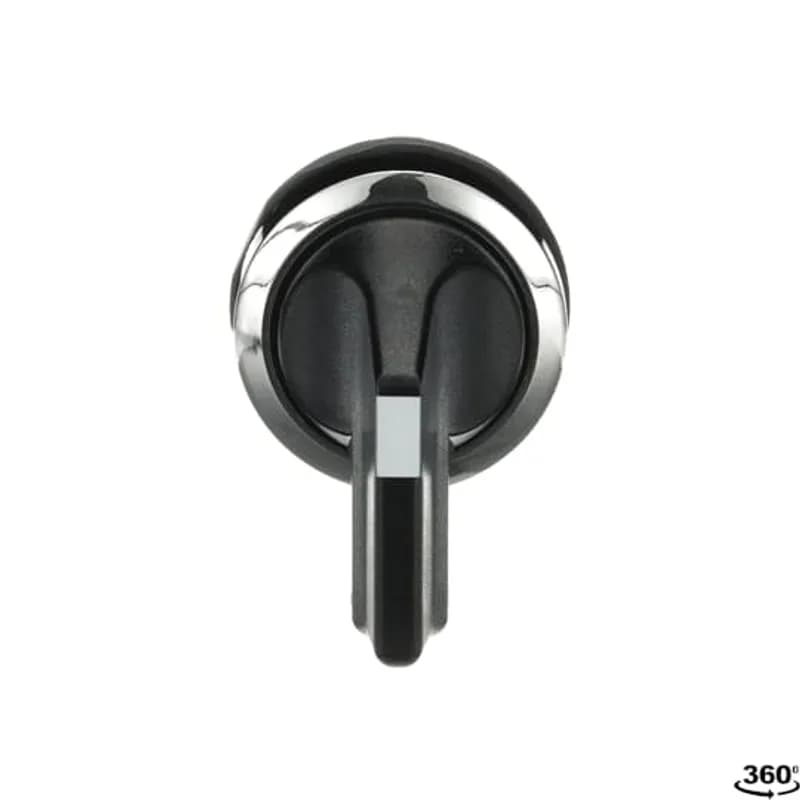

Modular Selector Switch - 3-Pos Momentary, spring return from A and C to B - Long handle - Black - Non-illuminated - Chrome metal - No contact block

M3SS5-30B

Modular Selector Switch - 3-Pos Momentary, spring return from A and C to B - Long handle - Black - Non-illuminated - Chrome metal - No contact block

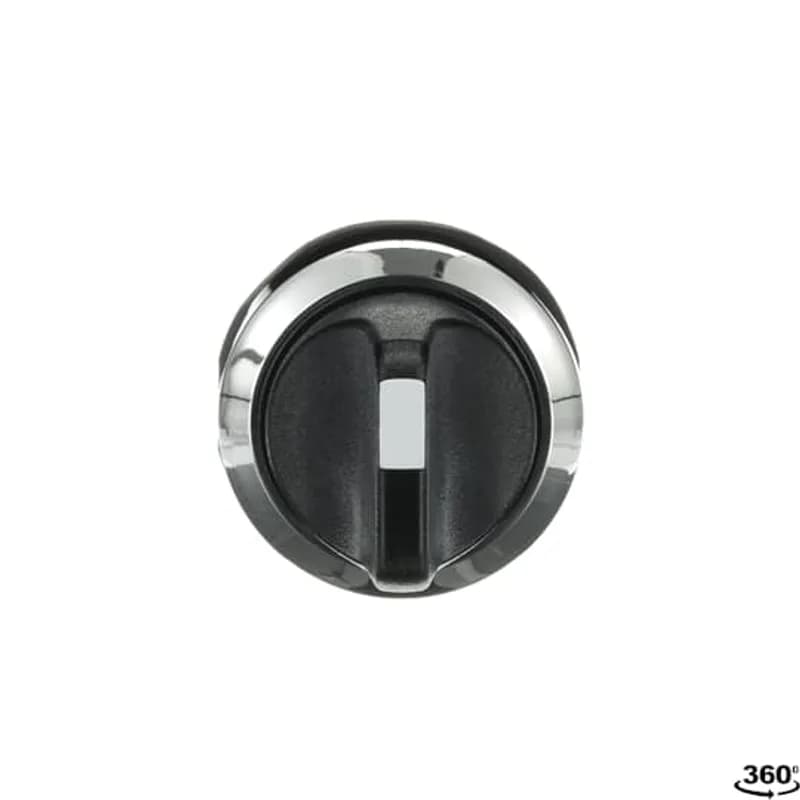

Modular Selector Switch - 3-Pos Maintained/Momentary, B and C fixed, spring return from A to B - Short handle - Black - Non-illuminated - Chrome metal - No contact block

M3SS7-30B

Modular Selector Switch - 3-Pos Maintained/Momentary, B and C fixed, spring return from A to B - Short handle - Black - Non-illuminated - Chrome metal - No contact block
Compact Selector Switch - 2-pos Fixed B&C - Short handle - Black - Non-illuminated - Chrome metal - 2NO

C2SS130B-20

Compact Selector Switch - 2-pos Fixed B&C - Short handle - Black - Non-illuminated - Chrome metal - 2NO

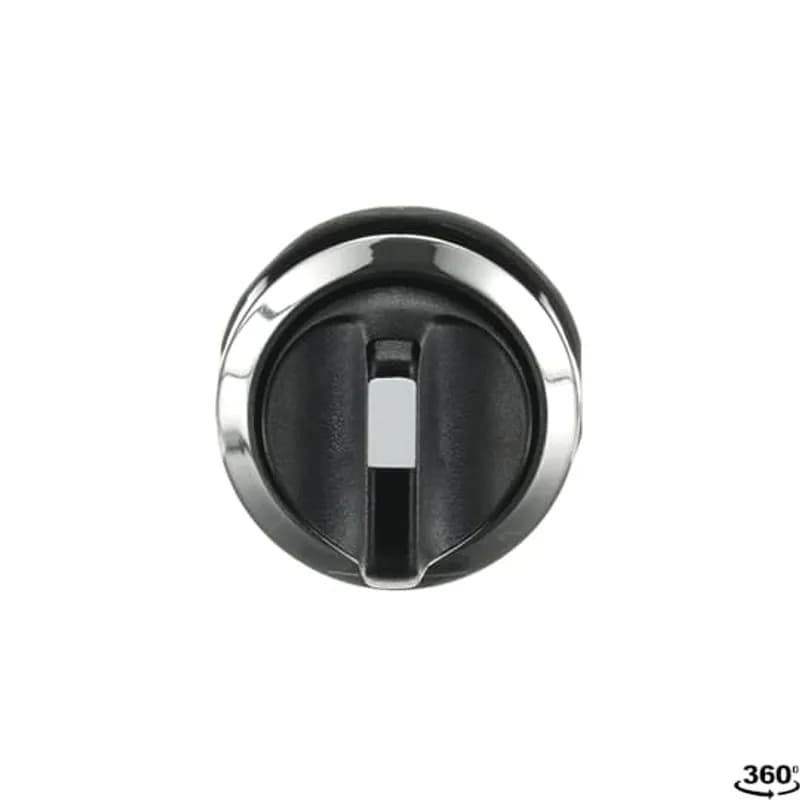

Modular Selector Switch - 3-Pos Momentary, spring return from A and C to B - Short handle - Black - Non-illuminated - Chrome metal - No contact block

M3SS2-30B

Modular Selector Switch - 3-Pos Momentary, spring return from A and C to B - Short handle - Black - Non-illuminated - Chrome metal - No contact block
Compact Selector Switch - 2-pos Fixed A&C - Short handle - Black - Non-illuminated - Chrome metal - 1NO

C2SS2-30B-10

Compact Selector Switch - 2-pos Fixed A&C - Short handle - Black - Non-illuminated - Chrome metal - 1NO

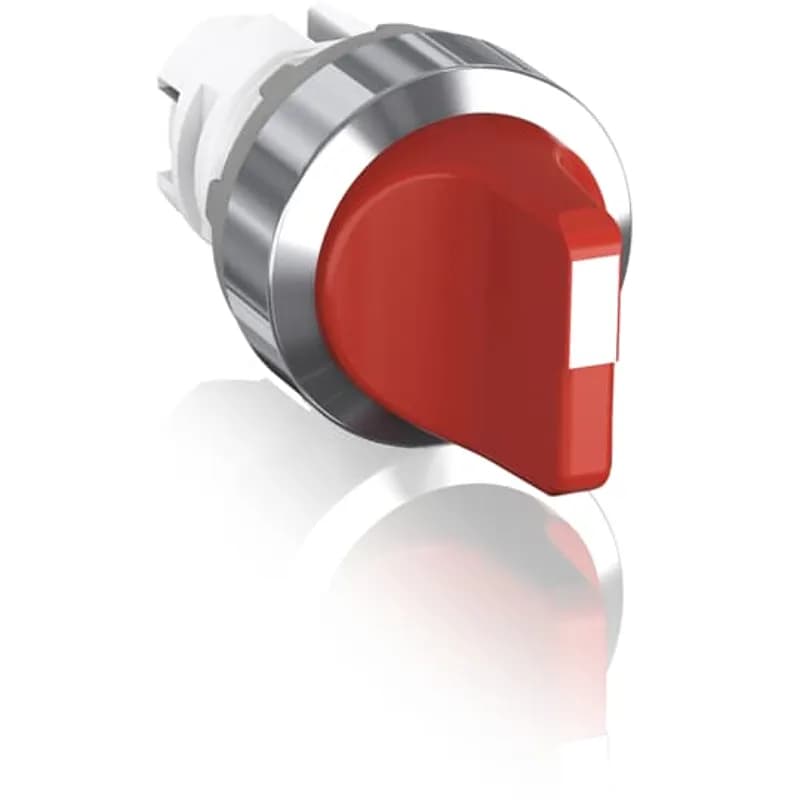

Modular Selector Switch - 3-Pos Maintained - Short handle - Red - Non-illuminated - Chrome metal - No contact block

M3SS1-30R

Modular Selector Switch - 3-Pos Maintained - Short handle - Red - Non-illuminated - Chrome metal - No contact block
Modular Selector Switch - 3-Pos Maintained - Short handle - Green - Illuminated - Chrome metal - No contact block

M3SS1-31G

Modular Selector Switch - 3-Pos Maintained - Short handle - Green - Illuminated - Chrome metal - No contact block

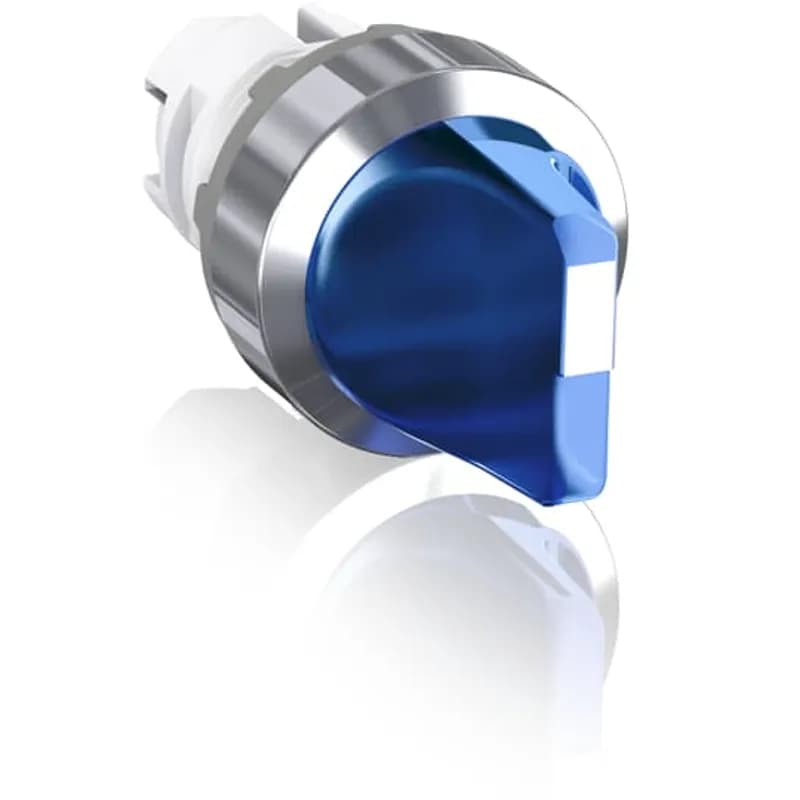

Modular Selector Switch - 3-Pos Maintained - Short handle - Blue - Illuminated - Chrome metal - No contact block

M3SS1-31L

Modular Selector Switch - 3-Pos Maintained - Short handle - Blue - Illuminated - Chrome metal - No contact block
Modular Selector Switch - 2-Pos Maintained - Short handle - Green - Illuminated - Chrome metal - No contact block

M2SS1-31G

Modular Selector Switch - 2-Pos Maintained - Short handle - Green - Illuminated - Chrome metal - No contact block

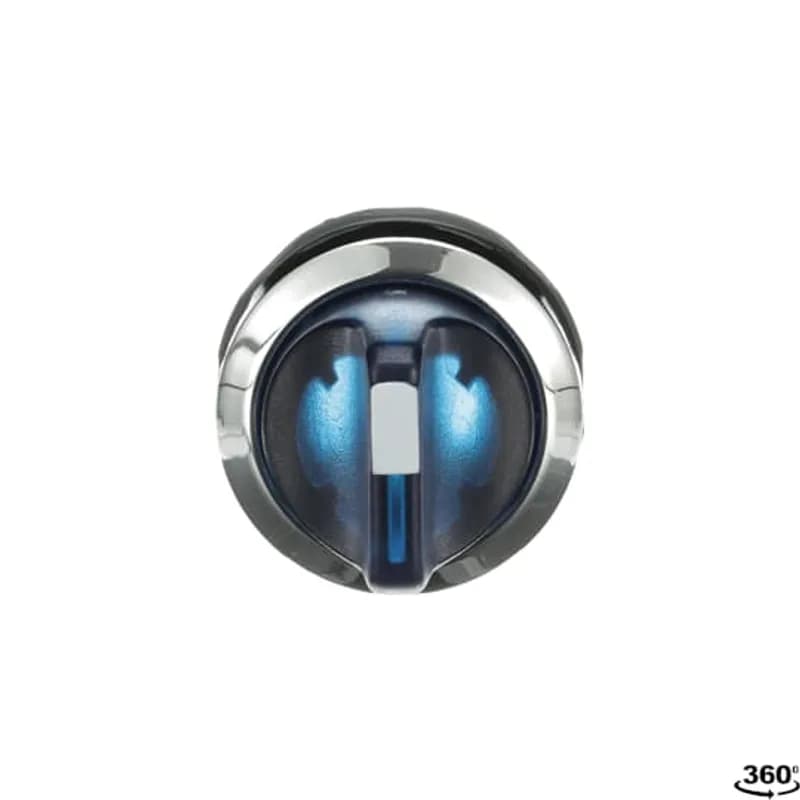

Modular Selector Switch - 3-Pos Momentary, spring return from A and C to B - Short handle - Blue - Illuminated - Chrome metal - No contact block
