Overview
- 3-pole mini contactor with 1 auxiliary contact
- Rated for 20 A / 690 V (AC-1) and 4 kW (AC-3)
- Equipped with soldering pins for direct PCB mounting
- Compact design ideal for space-constrained applications
- Silent coil operation and switch position indication
Specifications
Application | Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits. |
Connection Type | Solder Pins |
Connection Type | Soldering Pins |
Current Rating | 20 A |
Mounting Type | Rail Mounting |
Poles | 3 |
Poles | 3P |
Rated Control Circuit Voltage | 110 ... 127 V AC |
Series | B6 |
Series | B6-30-10-P |
Series | B6-30-10 |
Size | 82x110x108mm |

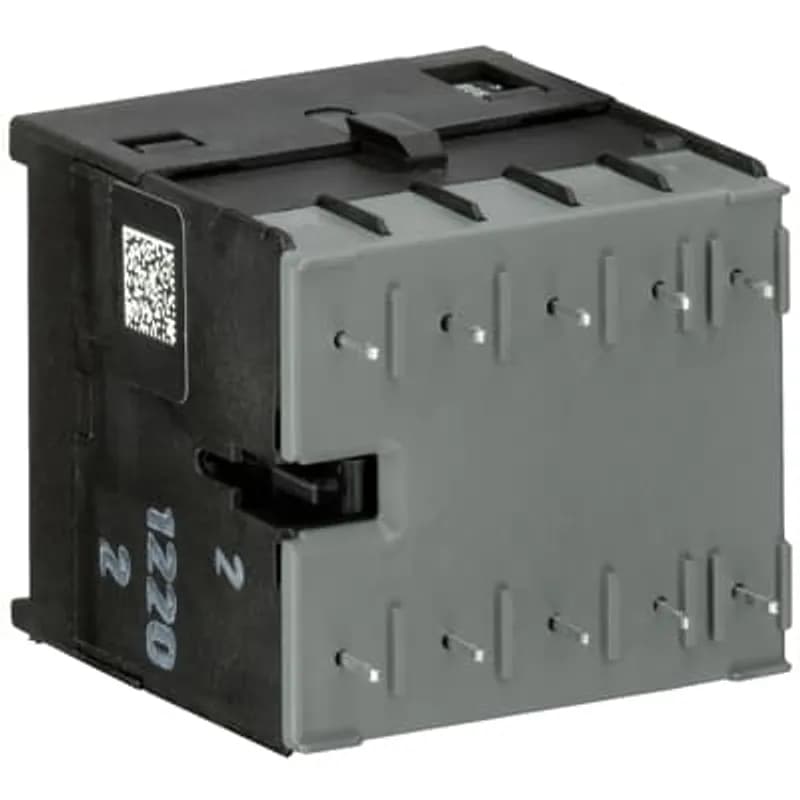

Special Features | The B6-30-10-P mini contactor is a compact 3 pole contactor with 1 auxiliary contact and soldering pins. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail mounting. |
Standard | RoHs, CSA, cUL, CE, GOST |
Terminal Type | Soldering Pins |
Type | Contactors |
Voltage Rating | 690 V |
Package Dimensions (L x W x H) | 9.724 IN x 4.252 IN x 2.717 IN |
Package Dimensions (L x W x H) | 24.699 cm x 10.8001 cm x 6.9012 cm |
Package Weight (Imperial) | 3.913 L |
Package Weight (Metric) | 1.775 kg |
