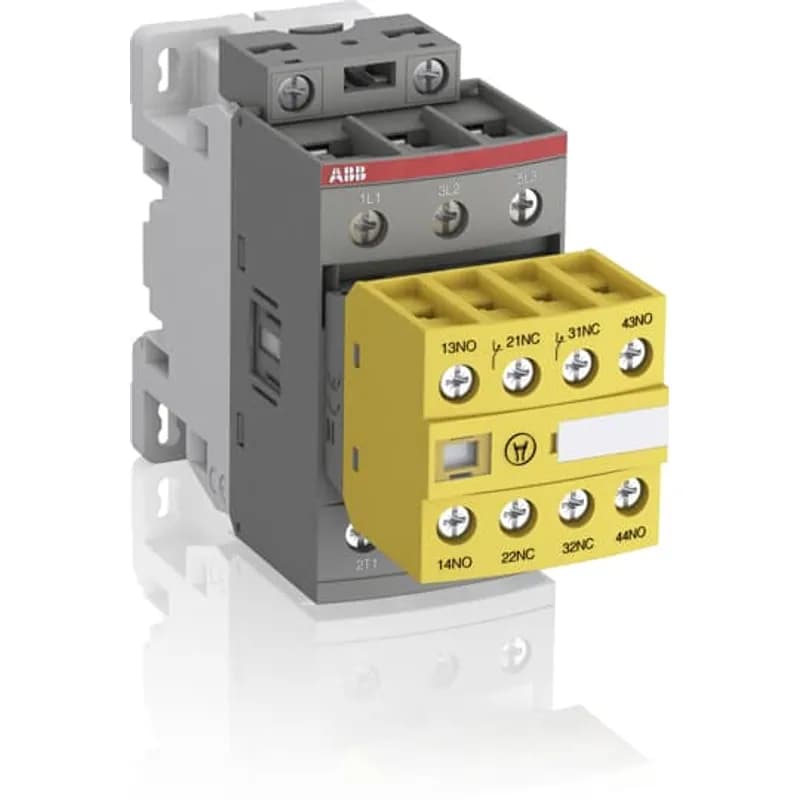

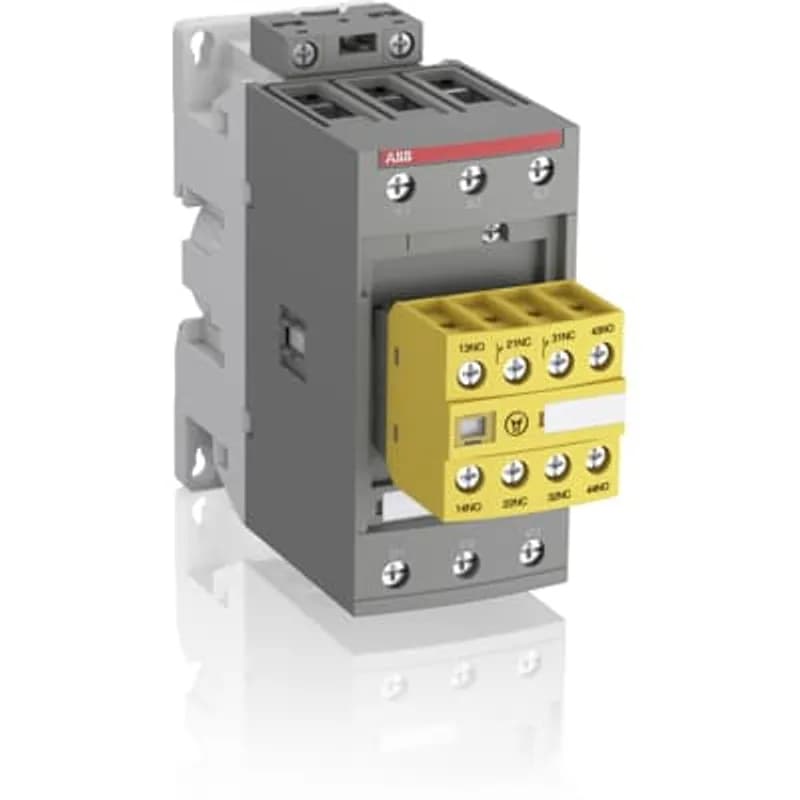

ABB - Electrification AFS16-30-22-13 - AFS09 ... AFS38 contactors are designed for machine safety applications. They are delivered with fixed front-mounted auxiliary contact blocks making them ideal for monitoring and controlling circuits. Mechanically linked and mirror contacts make your system safer. - control circuit with electronic coil interface: - 24...60 V AC, 20...60 V DC and 100...250 V AC / DC operated accepting a wide control voltage range - reduced panel energy consumption - mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always guaranteeing the right contactor status - front-mounted auxiliary contact block: - permanently fixed - protective cover to prevent manual operation - yellow housing for easy identification - minimum switching capacity 12 V / 3 mA, with a failure rate 10-7 acc. to IEC 60947-5-4 - built-in surge suppression
ABB - Electrification

AFS16-30-22-13

Contact for Pricing

Overview

The ABB AFS16-30-22-13 is a 3-pole safety contactor (SKU: AFS16-30-22-13) designed for critical machine safety applications. Manufactured by ABB - Electrification, this contactor is part of the AFS series, offering enhanced reliability and compliance with IEC 60947-5-1 standards. Key features include a permanently fixed front-mounted auxiliary contact block with 2 normally open (N.O.) and 2 normally closed (N.C.) contacts. These contacts are marked with a front symbol according to IEC60947-5-1, ensuring accurate status feedback. The yellow housing facilitates easy identification within control panels. The AFS16-30-22-13 operates with a versatile electronic coil interface, accepting a wide control voltage range: 24-60 V AC, 20-60 V DC, and 100-250 V AC/DC. This broad compatibility simplifies integration with various control systems, including safety PLCs and relays. The electronic coil interface also contributes to reduced panel energy consumption. For enhanced system safety, the contactor incorporates mechanically linked and mirror contacts. These features guarantee the correct contactor status, crucial for safety-critical circuits. The minimum switching capacity is rated at 12 V / 3 mA with a failure rate of 10⁻⁷, ensuring reliable operation even in low-power applications. Built-in surge suppression is integrated into the design, eliminating the need for external surge protection components, which simplifies installation and reduces panel complexity. The general use rating is 600 V AC, with a rated operational current AC-1 at θ ≤ 40 °C of 50 A. The rated operational power at 400 V AC-3 is 18.5 kW. This contactor is ideal for safety chain applications, emergency stop circuits, and other machine safety systems where dependable operation and compliance with international standards are paramount. Its robust construction and specific safety features make it a reliable choice for industrial automation and control.
  • 3-pole safety contactor for machine safety applications
  • Wide control voltage range: 24-60V AC, 20-60V DC, 100-250V AC/DC
  • Fixed front-mounted auxiliary contact block: 2 N.O. + 2 N.C.
  • Mechanically linked and mirror contacts for enhanced system safety
  • Built-in surge suppression and yellow housing for easy identification
  • Mechanically linked and mirror contacts per IEC 60947-5-1
  • Minimum switching capacity: 12V/3mA with failure rate 10^-7
  • Reduced energy consumption (up to 60% less than conventional contactors)
  • Compatible with safety PLCs and relays, tested with ABB Pluto and Sentry
  • Compact design for efficient panel space utilization

Specifications

Color
Yellow
Rated Control Circuit Voltage
50 Hz /60 Hz DC Operation 100 ... 250 V
Series
AFS09-AFS38
Special Features
AFS09 ... AFS38 contactors are designed for machine safety applications. They are delivered with fixed front-mounted auxiliary contact blocks making them ideal for monitoring and controlling circuits. Mechanically linked and mirror contacts make your system safer. - control circuit with electronic coil interface: - 24...60 V AC, 20...60 V DC and 100...250 V AC / DC operated accepting a wide control voltage range - reduced panel energy consumption - mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always guaranteeing the right contactor status - front-mounted auxiliary contact block: - permanently fixed - protective cover to prevent manual operation - yellow housing for easy identification - minimum switching capacity 12 V / 3 mA, with a failure rate 10-7 acc. to IEC 60947-5-4 - built-in surge suppression
Terminal Type
Screw Terminals
Voltage Rating
24...60 V AC, 20...60 V DC, 100...250 V AC/DC
Package Dimensions (L x W x H)
4.449 IN x 3.425 IN x 1.85 IN
Package Dimensions (L x W x H)
11.3005 cm x 8.6995 cm x 4.699 cm
Package Weight (Imperial)
0.710 L
Package Weight (Metric)
0.322 kg
