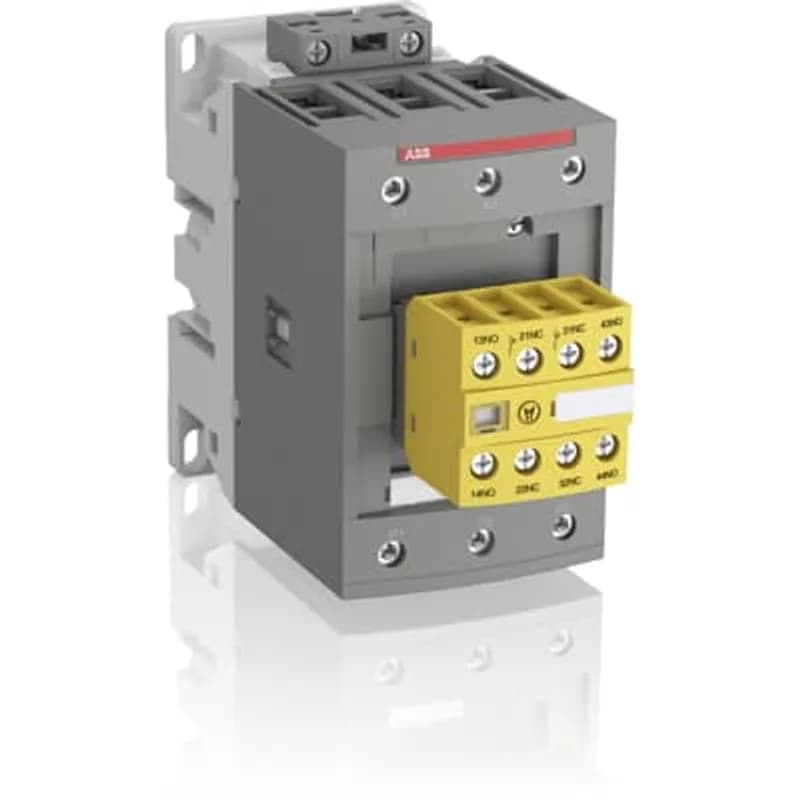

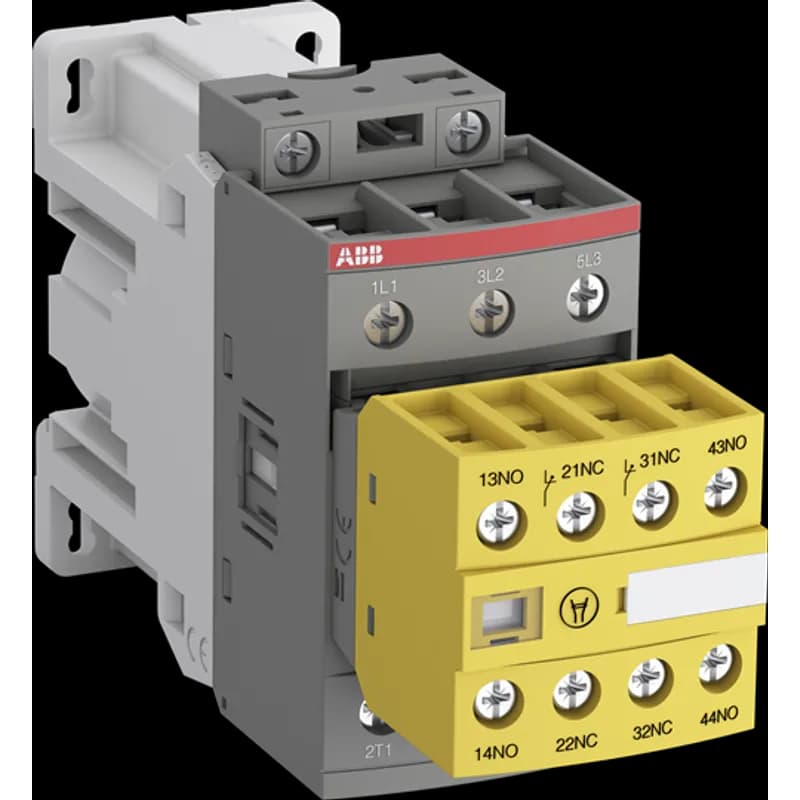

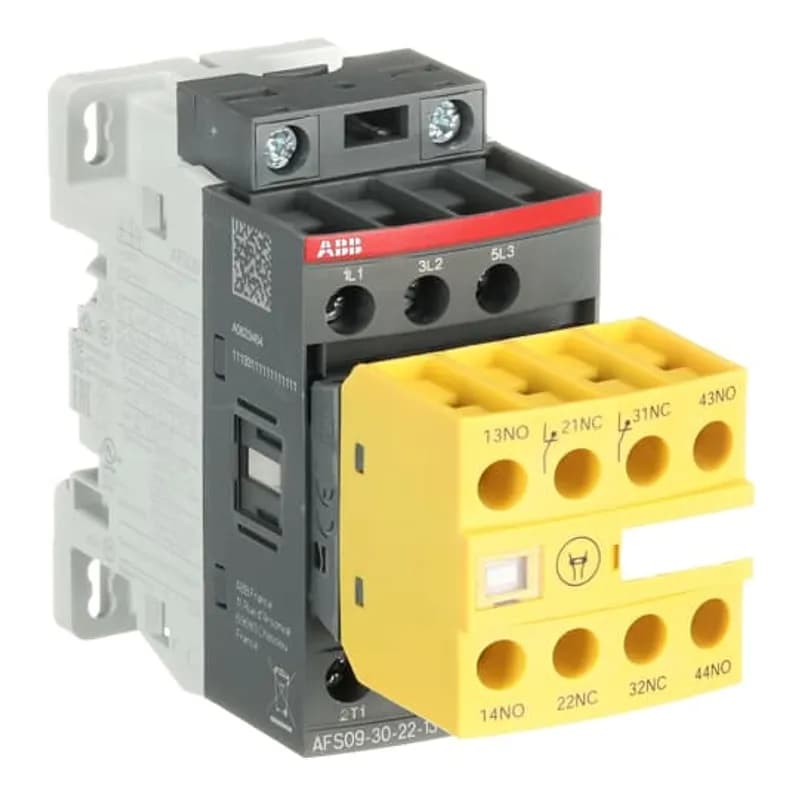

ABB - Electrification AFS16-30-22-11 - AFS09 ... AFS38 contactors are designed for machine safety applications. They are delivered with fixed front-mounted auxiliary contact blocks making them ideal for monitoring and controlling circuits. Mechanically linked and mirror contacts make your system safer. - control circuit with electronic coil interface: - 24...60 V AC, 20...60 V DC and 100...250 V AC / DC operated accepting a wide control voltage range - reduced panel energy consumption - mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always guaranteeing the right contactor status - front-mounted auxiliary contact block: - permanently fixed - protective cover to prevent manual operation - yellow housing for easy identification - minimum switching capacity 12 V / 3 mA, with a failure rate 10-7 acc. to IEC 60947-5-4 - built-in surge suppression
ABB - Electrification

AFS16-30-22-11

Contact for Pricing

Overview

The ABB AFS16-30-22-11 is a 3-pole contactor designed for machine safety applications, ensuring reliable control and monitoring in industrial environments. This model features an electronic coil interface that accepts a broad control voltage range of 24-60V AC/DC, 20-60V DC, and 100-250V AC/DC, reducing panel energy consumption while maintaining compatibility with diverse control systems. The contactor is rated for general use at 30A at 600V AC (AC-1) and supports motor applications up to 7.5kW at 400V (AC-3), making it suitable for heavy-duty industrial machinery. Delivered with permanently fixed, front-mounted auxiliary contact blocks, the AFS16-30-22-11 simplifies circuit monitoring and control. These blocks are equipped with a protective cover to prevent manual operation and feature a distinctive yellow housing for easy identification. Safety is enhanced through mechanically linked and mirror contacts, clearly marked with the symbol according to IEC60947-5-1, ensuring accurate status feedback. The auxiliary contacts meet a minimum switching capacity of 12V / 3mA with a failure rate of 10⁻⁷ according to IEC 60947-5-4, guaranteeing dependable operation even at low loads. Built-in surge suppression protects the control circuit without requiring external components, reducing system complexity and cost. Manufactured in the US by ABB - Electrification, the AFS16-30-22-11 is part of the AFS series, designed for machine safety applications where reliability and compliance with international standards are critical. The contactor's robust construction and compliance with IEC 60947-5-1 ensure long-term performance in demanding industrial environments.
  • 3-pole design for machine safety applications
  • Electronic coil interface accepts 24-60V AC/DC, 20-60V DC, 100-250V AC/DC
  • Rated 30A at 600V AC (AC-1) and 7.5kW at 400V (AC-3)
  • Front-mounted auxiliary contact blocks with protective cover and yellow housing
  • Mechanically linked and mirror contacts for enhanced safety and status feedback

Specifications

Color
Yellow
Current Rating
30 A
Frequency
50/60 Hz
Poles
3
Rated Control Circuit Voltage
50 Hz /60 Hz 24 ... 60 V / DC Operation 20 ... 60 V
Series
AFS
Special Features
AFS09 ... AFS38 contactors are designed for machine safety applications. They are delivered with fixed front-mounted auxiliary contact blocks making them ideal for monitoring and controlling circuits. Mechanically linked and mirror contacts make your system safer. - control circuit with electronic coil interface: - 24...60 V AC, 20...60 V DC and 100...250 V AC / DC operated accepting a wide control voltage range - reduced panel energy consumption - mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always guaranteeing the right contactor status - front-mounted auxiliary contact block: - permanently fixed - protective cover to prevent manual operation - yellow housing for easy identification - minimum switching capacity 12 V / 3 mA, with a failure rate 10-7 acc. to IEC 60947-5-4 - built-in surge suppression
Terminal Type
Screw Terminals
Voltage Rating
24-60 V AC, 20-60 V DC, 100-250 V AC/DC
Package Dimensions (L x W x H)
4.449 IN x 3.425 IN x 1.85 IN
Package Dimensions (L x W x H)
11.3005 cm x 8.6995 cm x 4.699 cm
Package Weight (Imperial)
0.710 L
Package Weight (Metric)
0.322 kg
GMD-16M DC240V 3W 1b EXP (GMD16M-30-01-UD-3W-S-E)

1270040900

GMD-16M DC240V 3W 1b EXP (GMD16M-30-01-UD-3W-S-E)
MT-63 34A 3D SCREW EXP (MT63-3D-34-S-E)

1311001000

MT-63 34A 3D SCREW EXP (MT63-3D-34-S-E)
One-hole, metric conductor, standard barrel with window lug, 4-6mm wire, M8 stud hole.

LCMA6-8-C

One-hole, metric conductor, standard barrel with window lug, 4-6mm wire, M8 stud hole.
Ground Lug

DNGL

Ground Lug
CONTACT BLOCK BU BLB-02

BLB-02

CONTACT BLOCK BU BLB-02
CONTACT BLOCK BU BFB-40

BFB-40

CONTACT BLOCK BU BFB-40
