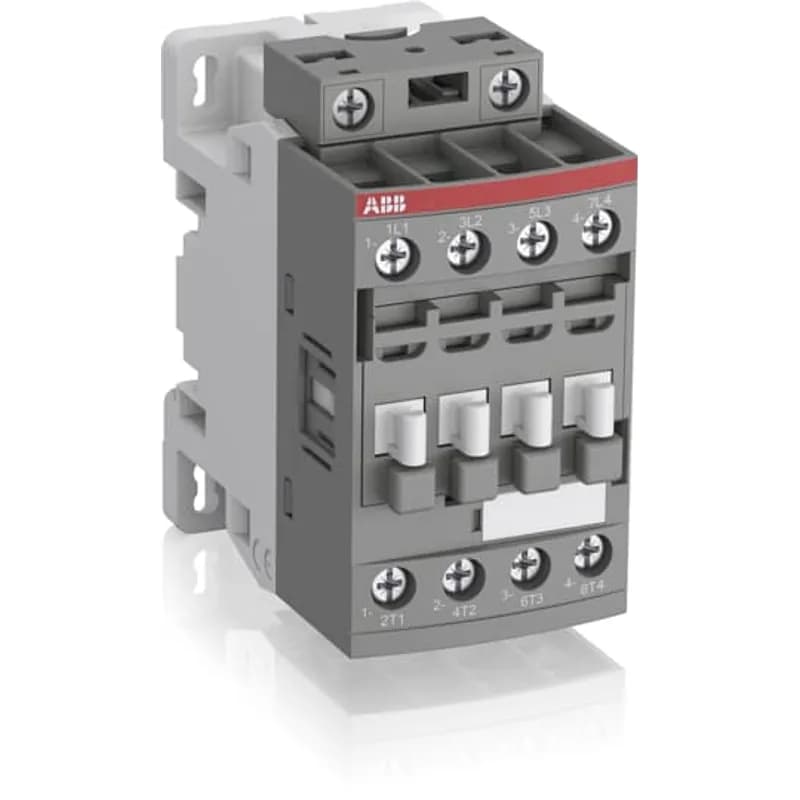

ABB - Electrification AF16Z-40-00-30 - AF16Z 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC. They are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...). AF16Z contactors with coil 30 include a 24 V DC electronic coil interface with a built-in surge suppression, obtaining a reduced holding coil consumption up to 1.7 W for a low panel energy consumption and a direct control by PLC-output ⥠250 mA 24 V DC, without need of additional interface relay. Only AF..Z..-30 contactors need to respect the polarity on the coil terminals (A1+ and A2-). The AF... series 4-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 4 N.O. main poles, front and side-mounted add-on auxiliary contact blocks. (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Accessories: a wide range of accessories is available.
ABB - Electrification

AF16Z-40-00-30

Contact for Pricing

Overview

The ABB AF16Z-40-00-30 is a 4-pole contactor designed for precise control of non-inductive or slightly inductive loads such as resistance furnaces, heating elements, and other resistive applications. Rated for power circuits up to 690V AC and 440V DC, this block-type contactor delivers reliable performance in industrial environments. Key specifications include a 30A rated operational current at ≤40°C (AC-1) and a 24V DC electronic coil interface with built-in surge suppression, reducing holding coil consumption to just 1.7W for energy-efficient operation. The coil is directly compatible with PLC outputs ≥250mA at 24V DC, eliminating the need for additional interface relays. Note that polarity must be respected on coil terminals (A1+ and A2-) for proper function. The AF16Z-40-00-30 features 4 normally open main poles with front and side-mounted auxiliary contact blocks for flexible configuration. Auxiliary contacts comply with IEC 60947-5-1 (Annex L) for mechanically-linked operation and IEC 60947-4-1 (Annex F) for NC mirror contacts. A wide range of accessories is available to extend functionality. Engineered for medium-duty applications, this contactor is suitable for industrial control panels with a compact 35mm DIN rail mounting design. Its robust construction ensures durability in demanding environments where reliable switching and low energy consumption are critical. The AF16Z series is part of ABB's AF..Z..-30 contactor family, optimized for direct PLC control and energy-efficient operation.
  • 4-pole block-type design for non-inductive/slightly inductive loads (resistance furnaces, heating elements)
  • Rated for 690V AC and 440V DC power circuits with 30A operational current at ≤40°C (AC-1)
  • 24V DC electronic coil with built-in surge suppression (1.7W holding consumption)
  • Direct PLC compatibility (≥250mA 24V DC output) eliminates need for interface relays
  • Complies with IEC 60947-5-1 (Annex L) for mechanically-linked auxiliary contacts and IEC 60947-4-1 (Annex F) for NC mirror contacts
  • Compliant with IEC 60947-5-1 (Annex L) and IEC 60947-4-1 (Annex F)
  • 30A rated operational current at ≤40°C
  • Polarity-sensitive coil terminals (A1+ and A2-) for 24V DC models

Specifications

Connection Type
Screw Terminal
Current Rating
30 A
Material
Plastic
Mounting Type
DIN Rail
Mounting Type
Block type
Poles
4
Rated Control Circuit Voltage
DC Operation 24 V
Series
AF
Special Features
AF16Z 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC. They are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...). AF16Z contactors with coil 30 include a 24 V DC electronic coil interface with a built-in surge suppression, obtaining a reduced holding coil consumption up to 1.7 W for a low panel energy consumption and a direct control by PLC-output ? 250 mA 24 V DC, without need of additional interface relay. Only AF..Z..-30 contactors need to respect the polarity on the coil terminals (A1+ and A2-). The AF... series 4-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 4 N.O. main poles, front and side-mounted add-on auxiliary contact blocks. (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Accessories: a wide range of accessories is available.
Terminal Type
Screw Terminals
Voltage Rating
690 VAC / 440 VDC
Package Dimensions (L x W x H)
4.409 IN x 3.78 IN x 1.969 IN
Package Dimensions (L x W x H)
11.1989 cm x 9.6012 cm x 5.0013 cm
Package Weight (Imperial)
1.050 L
Package Weight (Metric)
0.476 kg
GMD-16M DC240V 3W 1b EXP (GMD16M-30-01-UD-3W-S-E)

1270040900

GMD-16M DC240V 3W 1b EXP (GMD16M-30-01-UD-3W-S-E)
MT-63 34A 3D SCREW EXP (MT63-3D-34-S-E)

1311001000

MT-63 34A 3D SCREW EXP (MT63-3D-34-S-E)
One-hole, metric conductor, standard barrel with window lug, 4-6mm wire, M8 stud hole.

LCMA6-8-C

One-hole, metric conductor, standard barrel with window lug, 4-6mm wire, M8 stud hole.
Ground Lug

DNGL

Ground Lug
CONTACT BLOCK BU BLB-02

BLB-02

CONTACT BLOCK BU BLB-02
CONTACT BLOCK BU BFB-40

BFB-40

CONTACT BLOCK BU BFB-40
