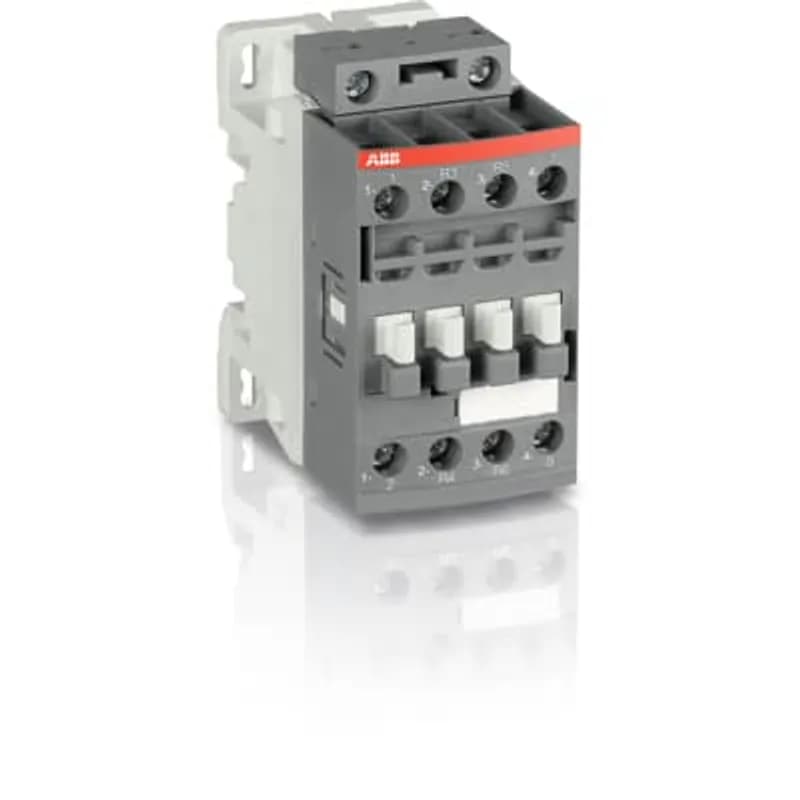

AF16Z-40-00-23
Contact for Pricing
Overview
- 4-pole contactor for power circuits up to 690 V AC and 440 V DC
- Rated operational current: 30 A (AC-1, ≤ 40 °C)
- Electronic coil interface accepts 24-250 V 50/60 Hz or 12-250 V DC
- SEMI F47-0706 compliant for voltage dip and sag tolerance
- Built-in surge protection, direct PLC control support (≥ 24 V DC 500 mA)
- Block-type design with 4 N.O. main poles and IEC-compliant auxiliary contacts
- Compatible with resistance furnaces, heating elements, and non-inductive loads
- Wide range of accessories available for extended functionality
Specifications
Connection Type | Screw Terminal (implied) |
Current Rating | 30 A |
Frequency | 50/60 Hz |
Mounting Type | Block type design |
Poles | 4 |
Poles | 4-Pole |
Rated Control Circuit Voltage | 50 Hz /60 Hz DC Operation 100 ... 250 V |
Series | AF |
Series | AF..Z |
Series | AF16Z |
Special Features | AF16Z 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC. They are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...). AF..Z contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...250 V 50/60 Hz or 12...250 V DC. AF..Z contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF..Z contactors allow direct control by PLC-output ? 24 V DC 500 mA and obtain a reduced holding coil consumption. AF..Z contactors withstand short voltage dips and voltage sags (SEMI F47-0706 compliance) between 24...250 V 50/60 Hz AF..Z contactors have built-in surge protection and do not require additional surge suppressors The AF... series 4-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 4 N.O. main poles, front and side-mounted add-on auxiliary contact blocks. (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available. |
Terminal Type | Screw Terminals |
Voltage Rating | 690 V AC / 440 V DC |
Voltage Rating | 690 V AC, 440 V DC |
Package Dimensions (L x W x H) | 3.11 IN x 3.425 IN x 1.85 IN |
Package Dimensions (L x W x H) | 7.8994 cm x 8.6995 cm x 4.699 cm |
Package Weight (Imperial) | 0.690 L |
Package Weight (Metric) | 0.313 kg |
Frequently Asked Questions
What voltage range does the AF16Z-40-00-23 support?
The AF16Z-40-00-23 supports control voltages from 24V to 250V AC (50/60Hz) or 12V to 250V DC, covering most global standards with a single coil.
What is the rated operational current of this contactor?
The AF16Z-40-00-23 has a rated operational current of 30A at ≤40°C for AC-1 applications, such as resistive loads.
Does this contactor require additional surge protection?
No, the AF16Z-40-00-23 includes built-in surge protection and complies with SEMI F47-0706 standards for voltage dips and sags.
Can this contactor be controlled directly by a PLC?
Yes, the AF16Z-40-00-23 supports direct control from PLC outputs ≥24V DC at 500mA, reducing additional components.
What type of loads is this contactor suitable for?
The AF16Z-40-00-23 is designed for non-inductive or slightly inductive loads, including resistance furnaces and heating elements.
What standards does this contactor comply with?
The AF16Z-40-00-23 complies with IEC 60947-4-1, IEC 60947-5-1 (Annex L and F), and SEMI F47-0706 for voltage stability.
How many auxiliary contacts does the AF16Z-40-00-23 include?
The base model AF16Z-40-00-23 includes no auxiliary contacts, but front and side-mounted add-on blocks are available for expansion.
Is the AF16Z-40-00-23 suitable for global voltage variations?
Yes, the electronic coil interface allows the same coil to operate across 24-250V AC/DC, eliminating the need for coil changes in different regions.
