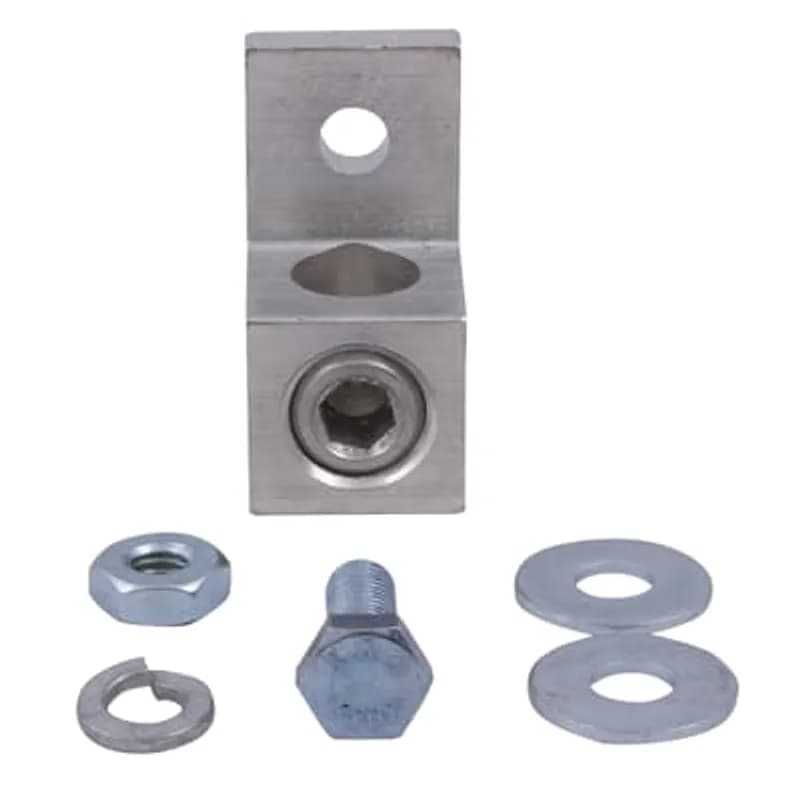

ABB - Electrification 9T18Y7327 - Transformers - Accessories and Lugs. Lug Kit for QL Transformers. Proximity of bus bars would prohibit dual lugs per bus bar. 18Y7327
ABB - Electrification

9T18Y7327

UPC: 783173004869

Contact for Pricing

Overview

The ABB QL Transformer Lug Kit (SKU: 9T18Y7327) is a precision-engineered accessory designed for ABB's QL series transformers, providing a reliable solution for secure bus bar connections in confined spaces. This kit is specifically engineered to address applications where the proximity of bus bars would otherwise prevent the use of dual lugs per bus bar, ensuring flexibility in wiring configurations even in tight installations. Manufactured in the United States, the 9T18Y7327 lug kit meets stringent UL486B standards for wire connectors, guaranteeing safety and performance in electrical systems. With a maximum operating temperature of 90°C and a voltage rating of 600V, this kit is rated for AL9CU applications, supporting conductor sizes ranging from 6 AWG up to 350 MCM for both primary and secondary connections. The design features 3/8 inch stud holes for secure attachment, allowing multiple lugs per connection point for adaptable wiring setups. This lug kit is ideal for electrical contractors, maintenance professionals, and system integrators working with ABB QL transformers in industrial, commercial, or utility applications where space constraints are a critical factor. The UL486B listing ensures compliance with electrical connection standards, providing peace of mind for critical installations. For precise compatibility and application guidance, refer to the ABB QL transformer catalog for frame size-specific details.
  • Designed for ABB QL series transformers
  • UL486B compliant for wire connectors
  • Supports conductor sizes from 6 AWG to 350 MCM
  • Maximum operating temperature: 90°C, voltage rating: 600V
  • 3/8 inch stud holes for secure attachment

Specifications

Phase
3
Special Features
Transformers - Accessories and Lugs. Lug Kit for QL Transformers. Proximity of bus bars would prohibit dual lugs per bus bar. 18Y7327
Package Dimensions (L x W x H)
4.25 IN x 4 IN x 4.25 IN
Package Dimensions (L x W x H)
10.795 cm x 10.16 cm x 10.795 cm
Package Weight (Imperial)
1.570 L
Package Weight (Metric)
0.712 kg
