ACS380 AC Drive, 3-380-480V In, 3HP, 6A, Type OPEN, 1.5 overload, Integrated, HxWxD 6.69x2.76x7.52 in, Module

Double plastic fiber optic, Qty 1, 5 meters long

The FENA 21 DualPort module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard.

WALL-MOUNTED DRIVE ULTRA LOW HARMONIC , Product Family: ACS800, Horsepower: 50 HP, Output Current: 67 A, Voltage: 480 VAC, Voltage Range: 380-500V, NEMA 1 / UL Type 1 (IP21), Wall-mounted, Local or Remote Mounted LCD Display and Keypad, ModBus Adapter, EMC/RFI Filter (1st Envir), 3-Phase Input, 3-Phase Output, Frame: R5, Product HxWxD: 32.12 in x 10.43 in x 15.35 in, Product Weight: 144 lbs

Braking Resistor, 100 OHMS, 600 WATTS, GCE2 Enclosure, 12W x 7D x 5H in, 10 lbs

DCS880 DC Drive, 3-400-525 In, 40, 74A, Type OPEN, 1.1 overload, Local or Remote Mounted LCD Display and Keypad, HxWxD 14.57x10.63x8.46 in, Wall

Braking Resistor, 6 OHMS, 3800 WATTS, GCE6 Enclosure, 19W x 10D x 5H in, 19 lbs

WALL-MOUNTED DRIVE REGENERATIVE, Product Family: ACS800, Horsepower: 125 HP, Output Current: 156 A, Voltage: 480 VAC , Voltage Range: 380-500V, NEMA 1 / UL Type 1 (IP21), Wall-mounted, Local or Remote Mounted LCD Display and Keypad, ProfiBus-DP Adapter, Pulse Encoder Interface, 3-Phase Input, 3-Phase Output, Frame: R6, Product HxWxD: 38.19 in x 11.81 in x 17.28 in, Product Weight: 221 lbs

MACHINERY DRIVE, Product Family: ACS850, Horsepower: 5 HP, Output Current: 9.7 A, Voltage: 480 VAC, Voltage Range: 380-500V, UL TYPE OPEN (IP20), Mounting: Cabinet-mounted (Side-by-Side or DIN Rail), Control Unit Cover with Drive Mount Control Panel, ProfiBus-DP Adapter, 3-Phase Input, 3-Phase Output, Frame: B, Product HxWxD: 15 in x 4 in x 11.7 in, Product Weight: 11 lbs

Powered by 115 VAC the ACS880 democase includes an ACS880 R2 drive mounted on a panel. Included is a motor with brake and an I/O board. Also included are an RAIO-01, RDIO-01 and RDCO-03 mounted internally to the drive. Fiber optic ports are provided for connection to DriveWindow or external options.

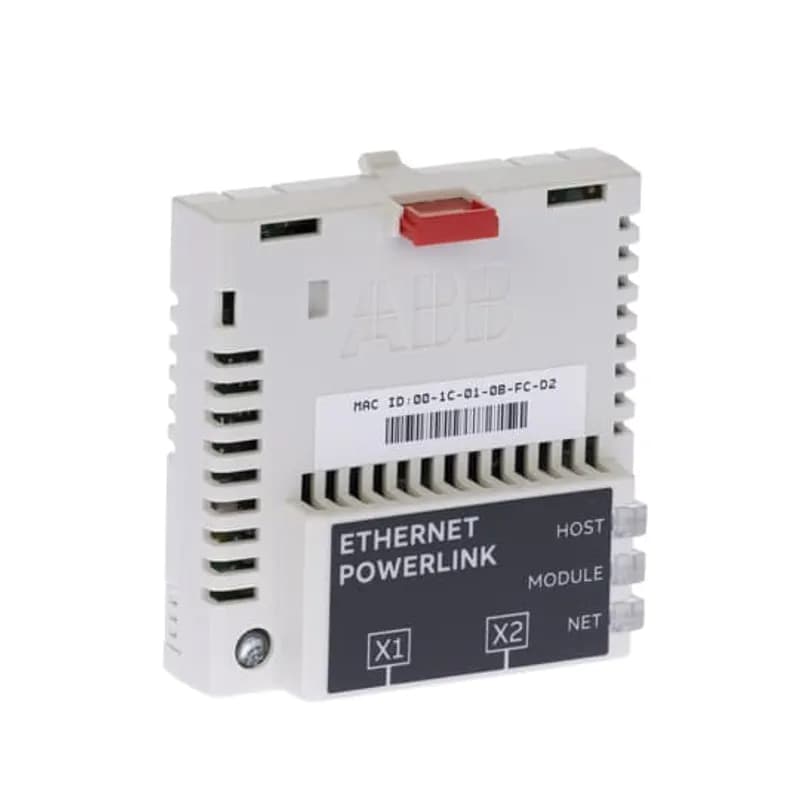

The FEPL-02 Ethernet POWERLINK adapter module enables the connection of a drive to an Ethernet POWERLINK network. Ethernet POWERLINK is a communication profile for Real Time Ethernet. The adapter module is classified as a full Ethernet POWERLINK slave.

MACHINERY DRIVE, Product Family: ACS850, Horsepower: 15 HP, Output Current: 23 A, Voltage: 480 VAC, Voltage Range: 380-500V, UL TYPE OPEN (IP20), Mounting: Cabinet-mounted (Side-by-Side), Control Unit Cover with Drive Mount Control Panel, EMC/RFI Filter (2nd Envir), 3-Phase Input, 3-Phase Output, Frame: C, Product HxWxD: 22.3 in x 6.5 in x 11.8 in, Product Weight: 35 lbs

PANEL DRIVE 2-QUADRANT (NON-REVERSING), Product Family: DCS800, Horsepower: 150 HP, Output Current: 506 A, Voltage: 230 VAC /240 VDC, UL TYPE OPEN (IP00), Mounting: Cabinet-mount, 3-Phase Input, Frame: C-D4, Product HxWxD: 35.32 in x 23.58 in x 16.17 in, Product Weight: 260 lbs

Double plastic fiber optic, Qty 1, 2 meters long

ACS380 AC Drive, 3-380-480V In, 10HP, 14A, Type OPEN, 1.5 overload, Integrated, HxWxD 6.69x6.65x7.52 in, Module, High performance 2-port Ethernet, Ethernet/IP, Modbus/TCP, PROFINET, HTL encoder interface + external 24V DC

Braking Chopper, Nominal AC Line Voltage 380-480V, Minimum 0.95 OHM, RMS Continuous Load Current 50 A

ACS550 AC Drive, 3-200-240V In, 3HP, 11.8A, Type 1/IP21, 1.1 overload, Advanced, 14.5 x 4.9 x 8.3 in, Wall, Pulse encoder

The PROFIsafe safety functions module (FSPS-21) helps connect the all-compatible drives seamlessly to a safety controller. The plug-in safety functions module employs built-in safety functions, Safe Torque Off (STO) and Safe Stop 1 (SS1-t), through PROFIsafe and controls the drive through PROFINET, eliminating the need for external components like safety relays and contactors. Safety communication, drive control and PC tool communication using only one Ethernet cable is made possible using the FSPS-21.

ACS880 AC Drive, 3-380-500V In, 30HP, 41A, Type OPEN, 1.1 overload, Bluetooth, HxWxD 18.39x6.61x12.44 in, Module, EMC/RFI-filters, 2nd Environment, Unrestricted (Earthed Network)

PANEL DRIVE 2-QUADRANT (NON-REVERSING), Product Family: DCS800, Horsepower: 60 HP, Output Current: 104 A, Voltage: 460 VAC /500 VDC, UL TYPE OPEN (IP00), Mounting: Cabinet-mount, Internal Line Reactor, Starter for Auxiliary Mortor Fan, 3-Phase Input, Frame: A-D1, Product HxWxD: 18.79 in x 12.15 in x 14.4 in, Product Weight: 88 lbs

ACS880 AC Drive, 3-380-500V In, 600HP, 705A, Type OPEN, 1.1 overload, Assistant Bluetooth, HxWxD 68.54x13.78x19.92 in, Module, , DC cable connection busbars

MACHINERY DRIVE, Product Family: ACS850, Horsepower: 2 HP, Output Current: 3.4 A, Voltage: 480 VAC, Voltage Range: 380-500V, UL TYPE OPEN (IP20), Mounting: Cabinet-mounted (Side-by-Side or DIN Rail), Control Unit Cover with Drive Mount Control Panel, 3-Phase Input, 3-Phase Output, Frame: A, Product HxWxD: 14.3 in x 3.7 in x 8.7 in, Product Weight: 7 lbs

MODULE DRIVE 4-QUADRANT (REVERSING), Product Family: DCS800, Horsepower: 250 HP @ 230 VAC / 600 HP @ 460 VAC, Output Current: 952 A @ 240 VDC / 965 A @ 500 VDC, Voltage: 230 VAC/240 VDC & 460 VAC/500 VDC, UL TYPE OPEN (IP00), Mounting: Wall-mount, 120 VAC Fan Voltage, 3-Phase Input, Frame: D4, Product HxWxD: 25.4 in x 10.6 in x 13.6 in, Product Weight: 84 lbs

MACHINERY DRIVE, Product Family: ACS850, Horsepower: 60 HP, Output Current: 90 A, Voltage: 480 VAC, Voltage Range: 380-500V, UL TYPE OPEN (IP20), Mounting: Cabinet-mounted (Side-by-Side), Control Unit Cover with Drive Mount Control Panel, 3-Phase Input, 3-Phase Output, Frame: D, Product HxWxD: 22.3 in x 8.7 in x 11.8 in, Product Weight: 51 lbs
