ABB - Low Voltage Drives
ACS800-37-2320-7+C129+H359
Alternate Item Number: 3AUA0000039090
UPC: 662348055793
Documents & Media
Contact for Pricing
Overview

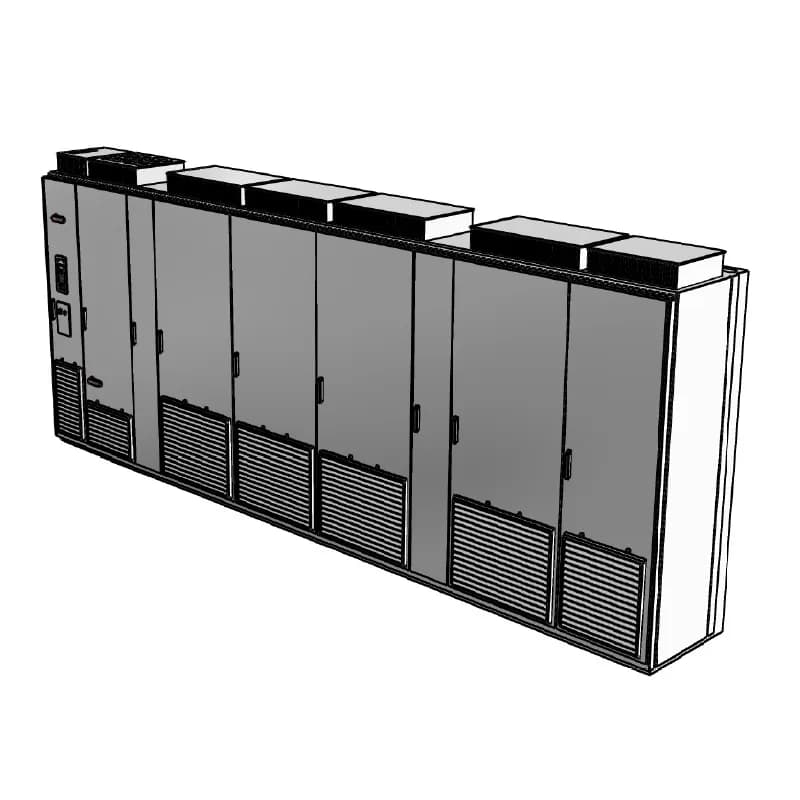

The ABB ACS800-37-2320-7+C129+H359 is a cabinet-style ultra-low harmonic drive designed for heavy-duty industrial motor control. Rated at 2000 HP (1791 A) with a 575 VAC input (525–690 V range), this 3-phase drive delivers precise speed and torque control for large motors in demanding applications. The NEMA 1/IP21 enclosure provides protection against dust and non-pressurized water, suitable for standard industrial environments.
Key features include a floor-mounted design with dimensions of 91.1 in (H) x 178.3 in (W) x 25.4 in (D) and a weight of 7937 lbs. It supports both local and remote operation via an LCD display and keypad. The ACS800-37-2320-7 is part of ABB’s ACS800 product family, optimized for applications requiring minimal harmonic distortion to comply with power quality standards. Frame size 4xR8i ensures compatibility with ABB’s modular drive systems.
- 2000 HP (1791 A) output for heavy-duty motor control
- 575 VAC input (525–690 V range), 3-phase input/output
- NEMA 1/IP21 enclosure for standard industrial environments
- Floor-mounted design with local/remote LCD display and keypad
- Frame size 4xR8i, dimensions: 91.1 in x 178.3 in x 25.4 in, weight: 7937 lbs
Specifications
Connection Type | 3-Phase Input, 3-Phase Output |
Current Rating | 1791 A |
IP Rating | IP21 |
Mounting Type | Floor-mounted |
Nema Rating | NEMA 1 |
Nema Rating | NEMA 1 / UL Type 1 |
Poles | 3-Phase |
Series | ACS800 |
Size | 91.1 in x 178.3 in x 25.4 in |
Voltage Rating | 575 VAC |
