NSi Industries EWZ101 - The TORK EWZ101 7-Day Astronomic Digital Timer is designed for 30 amp / 120-277 volt loads and has a plastic enclosure for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features one SPDT output channel with automatic voltage detection and a photo/override switch. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.
NSI Industries

EWZ101

UPC: 786261824707

Contact for Pricing

Overview

Digital timers simplify your life by automating repeating parts of your schedule, saving the user time, energy and money. The EWZ101 is a 7-day astronomic lighting control timer, ideal for applications in the home, office, factory, church or school. Use a photocell sensor to detect when the ambient light level drops below a programmable threshold, then turn on everything from signage to meeting room lights. Program in up to 20 different on/off settings with unique schedules for each day of the week using the simple interface in order to control equipment exactly as needed. In addition to the astronomic sunset/sunrise programming and the customizable schedule, the EWZ101 also features automatic daylight savings and leap year adjustment and a manual override. This timer features 1 output channel and contains a supercapacitor that provides 4 days of backup power in the event of a power outage. Additionally, the inrush current limiting technology protects the relay contacts in the event of a surge. Choose a digital timer from TORK, a pioneer in the time switch industry since 1922.
  • Astronomic Timer is ideal for outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment
  • Easy to Use: Program in the local sunrise/sunset times based on geographic location as well as up to 20 on/off settings with different settings for each day of the week
  • Designed for Convenience: Built with features such as a 4-day power outage backup, automatic daylight savings adjustment and NEMA 3R-rated Noryl plastic enclosure with locking hasp
  • Save Energy and Money: This time switch saves time, energy and money by providing a convenient way to turn equipment on and off
  • Professional Performance: The EWZ101 is compatible with incandescent, compact fluorescent and LED bulbs, and automatically detects voltages in the 120-277 range

Specifications

Package Dimensions (L x W x H)
9.7 IN x 6.1 IN x 3.6 IN
Package Weight (Imperial)
1.515 L
Package Weight (Metric)
0.687 kg

Similar Products

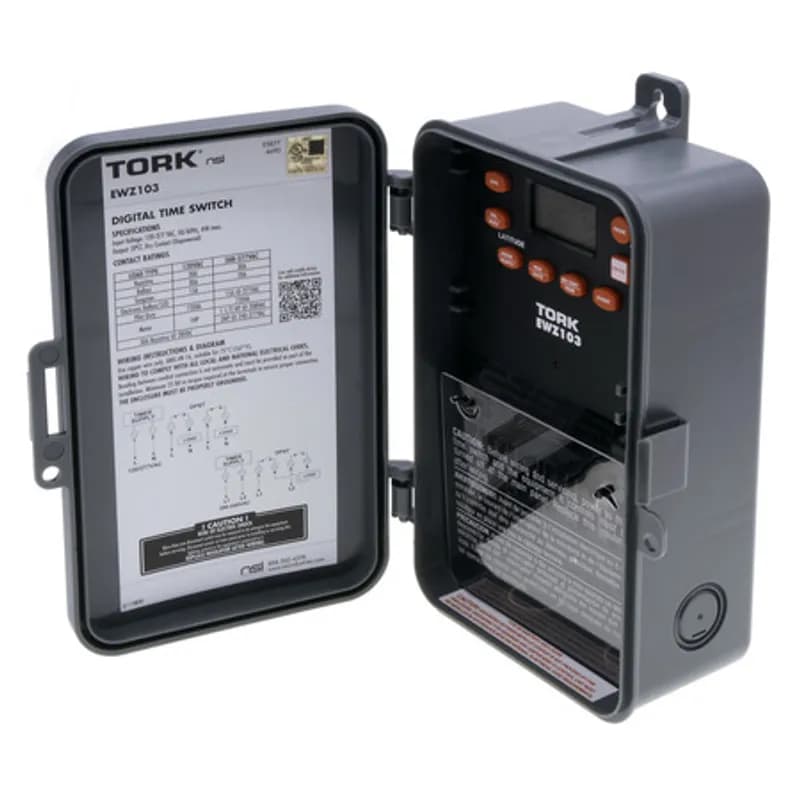

EWZ103

Base: Screw

Frequency Rating: 50-60 Hz

Mounting: Screw Mount

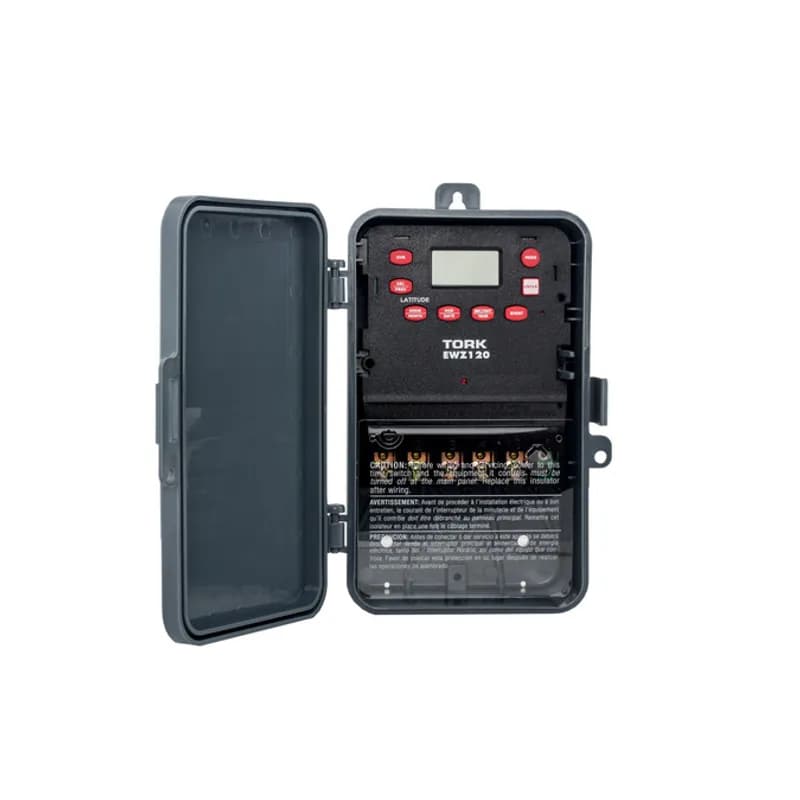

EWZ120

Enclosure: NEMA 3R Plastic Indoor-Outdoor With Locking Hasp

Action: SPDT

Application: NSI

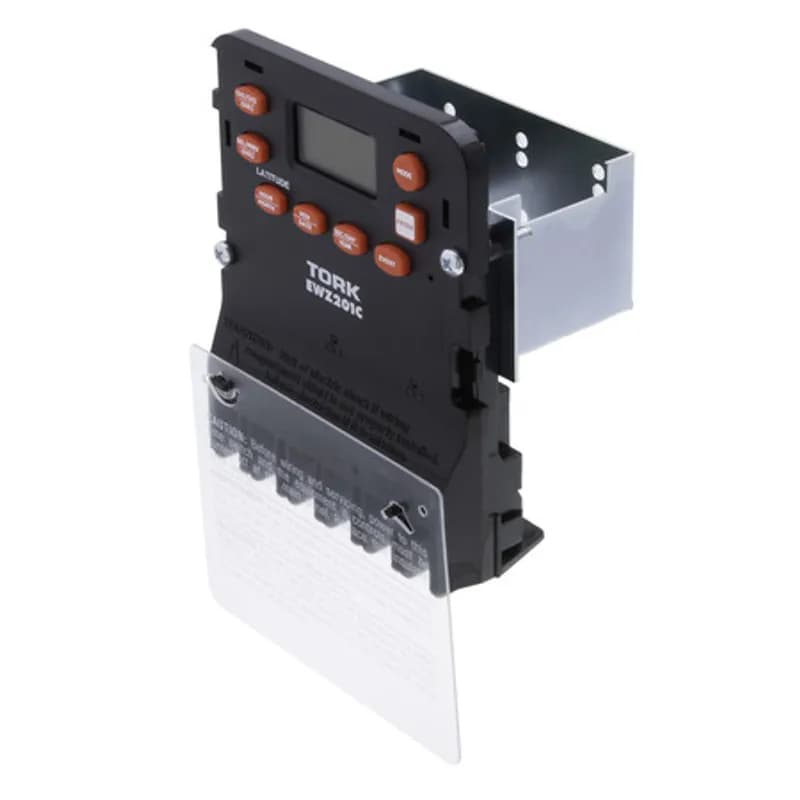

EWZ201C

Base: Screw

Frequency Rating: 50-60 Hz

Mounting: Screw Mount

EWZ201C-MB

Application: NSI

Base: Screw

Contact Rating: 120-277 VAC

EW101B

Timing Range: 7 Day

Size: L=5.062 - H-8.312 - W=3.062 IN

Mounting: Screw Mount

EW103B

Contact Rating: 120-277 VAC

Base: Screw

Mounting: Screw Mount
