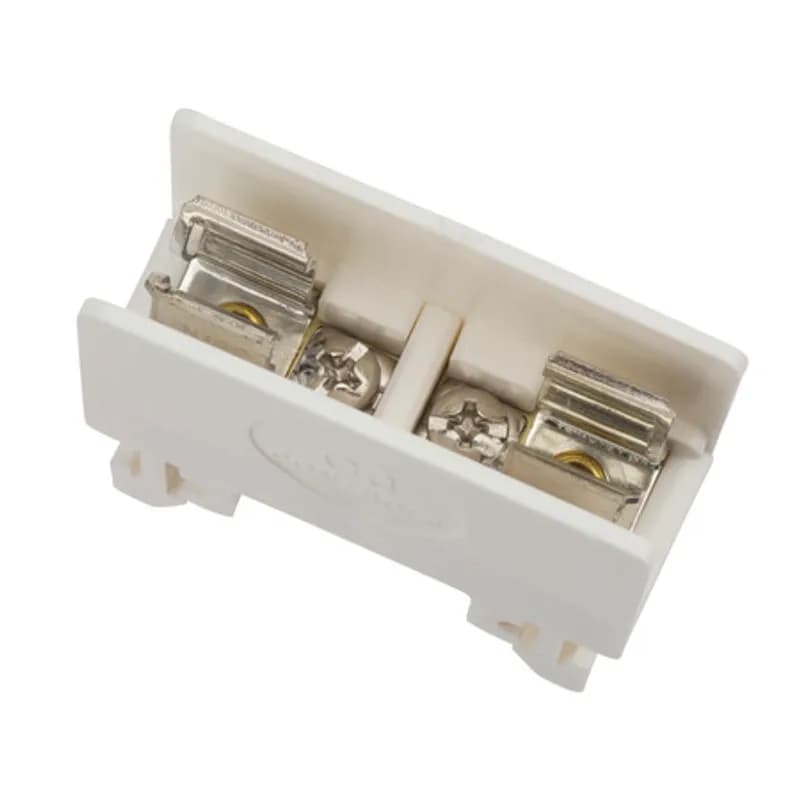

NSi Industries DRDTB-1 - Single Pole Disconnect- Din Rail Mountable Single Pole Disconnects may be used in a single-pole function or linked together with other disconnects to form multiple pole assemblies. Rated 15 Amps per pole. Accepts #22 to two #12 wires per terminal.
NSI Industries

DRDTB-1

UPC: 662381167828

Contact for Pricing

Overview

The NSI Industries DRDTB-1 Single Pole Disconnect is a versatile and reliable component designed for efficient electrical isolation in industrial and commercial applications. This unit is engineered for straightforward DIN rail mounting, allowing for rapid and secure installation within control panels and electrical enclosures. Each DRDTB-1 disconnect is rated for a robust 15 Amps, ensuring it can safely handle moderate current loads. Its single-pole configuration makes it ideal for isolating individual circuits or as a building block for multi-pole assemblies. Flexibility is a key feature of the DRDTB-1. While it functions perfectly as a standalone single-pole disconnect, it can be seamlessly linked with other DRDTB-1 units to create custom multi-pole configurations. This modular approach simplifies the design and assembly of complex electrical systems, offering scalability to meet evolving project requirements. The terminal blocks are designed to accommodate a range of wire sizes, accepting #22 AWG up to two #12 AWG wires per terminal. This broad compatibility simplifies wiring and reduces the need for specialized connectors. Key specifications include a 15 Amp current rating and a single pole design. The DIN rail mounting type ensures quick and tool-efficient installation, a critical factor in reducing assembly time and labor costs. The NSI DRDTB-1 is an excellent choice for applications requiring reliable circuit isolation and the flexibility to build custom switching solutions. Its durable construction and precise engineering from NSI Industries provide confidence in its performance and longevity in demanding environments. Whether used for single-circuit isolation or integrated into larger multi-pole systems, the DRDTB-1 delivers dependable functionality.
  • Single Pole Disconnect for circuit isolation
  • DIN Rail mountable for quick installation
  • Rated for 15 Amps
  • Can be linked to form multi-pole assemblies
  • Accepts #22 to two #12 AWG wires per terminal

Specifications

Application
Rail Mounting
Color
White
Finish
Thermal Plastic
Height
3.12 IN
Length
1.18 in
Material
Thermal Plastic
Mounting
Snap Lock
Size
L=1.18 - W=1.93 - H=3.12 IN
Special Features
Single Pole Disconnect - 15 Amps Per Pole - Accepts # 22 to (2) # 12 Wires Per Pole
Type
Din Rail
Warranty
1 Year
Width
1.93 IN
Package Dimensions (L x W x H)
1.937 IN x 1.187 IN x 3.125 IN
Package Dimensions (L x W x H)
4.92 cm x 3.015 cm x 7.9375 cm
Package Weight (Imperial)
0.840 L
Package Weight (Metric)
0.381 kg
