NSi Industries 630-NM2 - Mighty-Merge Transition Fittings. 3/4" Multi-NM Connector
NSI Industries

630-NM2

UPC: 781747406309

Documents & Media
Specification SheetVideo ClipWarranty

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

The NSi Industries 630-NM2 Mighty-Merge Transition Fitting is a 3/4" Multi-NM Connector designed for reliable connections in industrial applications. This fitting is specifically engineered for use with non-metallic sheathed cable (NM, NMHT, NMFG, and NM2 types), offering a secure and efficient method for splicing and tapping. It eliminates the need for junction boxes, covers, and additional fittings, simplifying installation and reducing labor costs. The Mighty-Merge series utilizes insulation displacement contacts, meaning individual conductors do not require stripping; simply plug the connectors together for a complete connection. This product is compliant with 2014 NEC 334.40 (A) (B). Constructed from Nylon 6 with a flame rating of 94V-2 and a temperature rating of 125°C, it is suitable for indoor/outdoor use. Proudly made in the USA, the 630-NM2 ensures precision engineering for compatibility and ease of installation in various industrial settings, including machine tools, renewable energy, robotics, and telecommunications. The fitting includes an 'O' ring and steel locknut for secure mounting to enclosures. It is UL and cUL Listed.
  • 3/4" Multi-NM Connector for splicing and tapping non-metallic sheathed cable (NM, NMHT, NMFG, NM2)
  • Eliminates need for junction boxes, covers, and additional fittings
  • Uses insulation displacement contacts; no conductor stripping required
  • Compliant with 2014 NEC 334.40 (A) (B)
  • Constructed from Nylon 6 (94V-2 flame rating, 125°C), UL/cUL Listed, Made in USA

Specifications

Application
The 630-NM2 allows for multiple nonmetallic cables to be installed into a single 3/4" KO. Simply squeeze the tabsto install or remove the cables. Each port can hold One 10/3 through 14/2 cable; or One Oval 10/2, 12/2 or 14/2; or Two Oval 14/3 or 12/3; or Two Oval 10/2 thru 14/2 NM Cables. Patented.
Conductor Range
Each port can hold One 10/3 through 14/2 cable; or One Oval 10/2, 12/2 or 14/2; or Two Oval 14/3 or 12/3; or Two Oval 10/2 thru 14/2 NM Cables
Material
Plastic
Number Of Conductors
up to 6 max
Size
3/4 IN
Special Features
They’re perfect for prefabrication of bundles of nonmetallic cable. These fittings provide a huge labor savings, compared to the traditional junction box or fitting assembly installation.
Standard
cETLus
Type
Connector
Package Weight (Imperial)
0.130 L
Package Weight (Metric)
0.059 kg

Similar Products

63-DC

Flexibility: EMT

Special Features: Removable aluminum cover to facilitate wire pulling

Standard: cULus

630

Conductor Range: 14/2 to 10/3 (.430" to 610")

Finish: Zinc Electroplated

Material: Malleable Iron

630-DC2

Conductor Range: 14/2 to 10/3 (.430" to 610")

Finish: Ball burnish

Material: Zinc Die Cast

You May Also Be Interested In

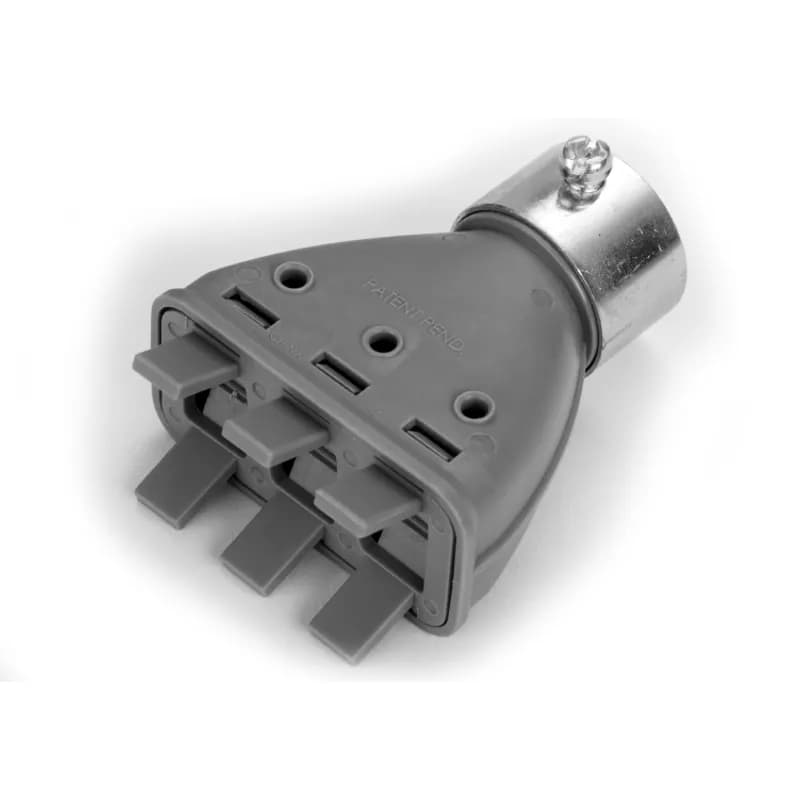

Mighty-Merge Transition Fittings. 3/4" Multi-NM to EMT Coupling

4357-NM

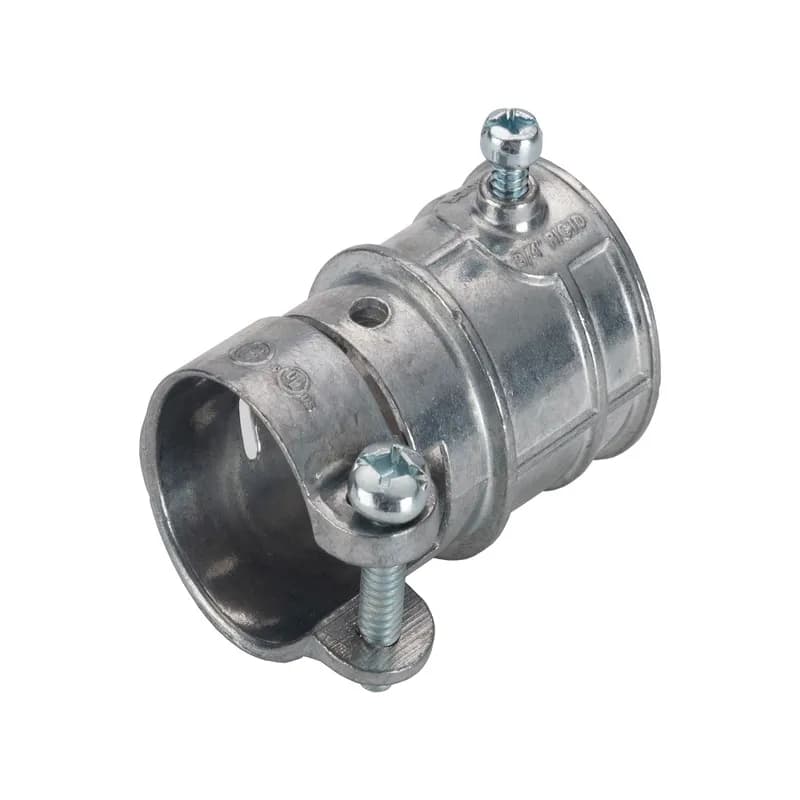

Mighty-Merge Threadless Rigid to FMC Transition Fitting, 3/4"

282-DCR

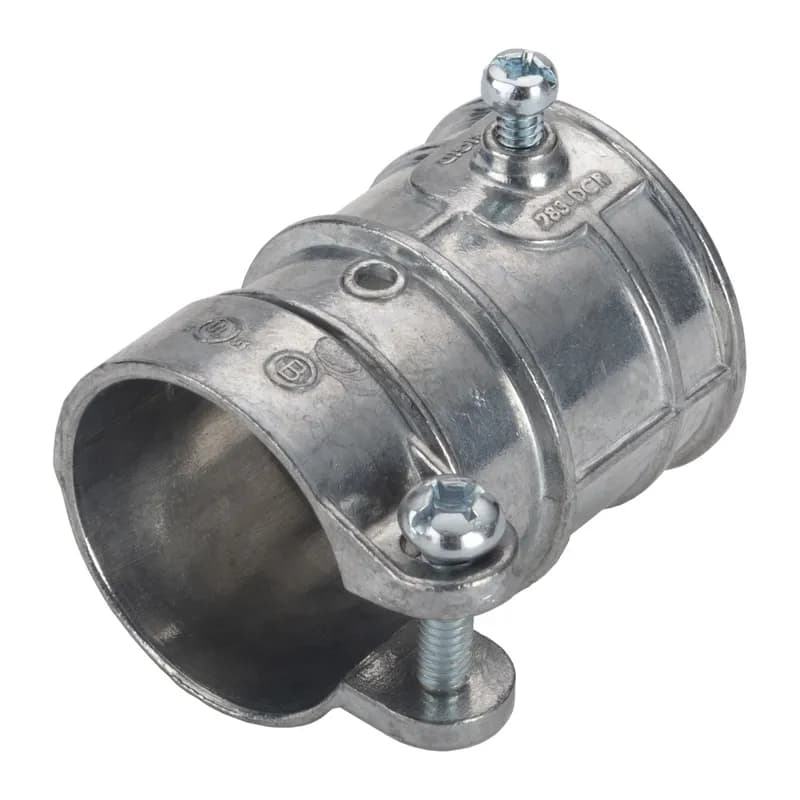

Mighty-Merge Threadless Rigid to FMC Transition Fitting, 1"

283-DCR

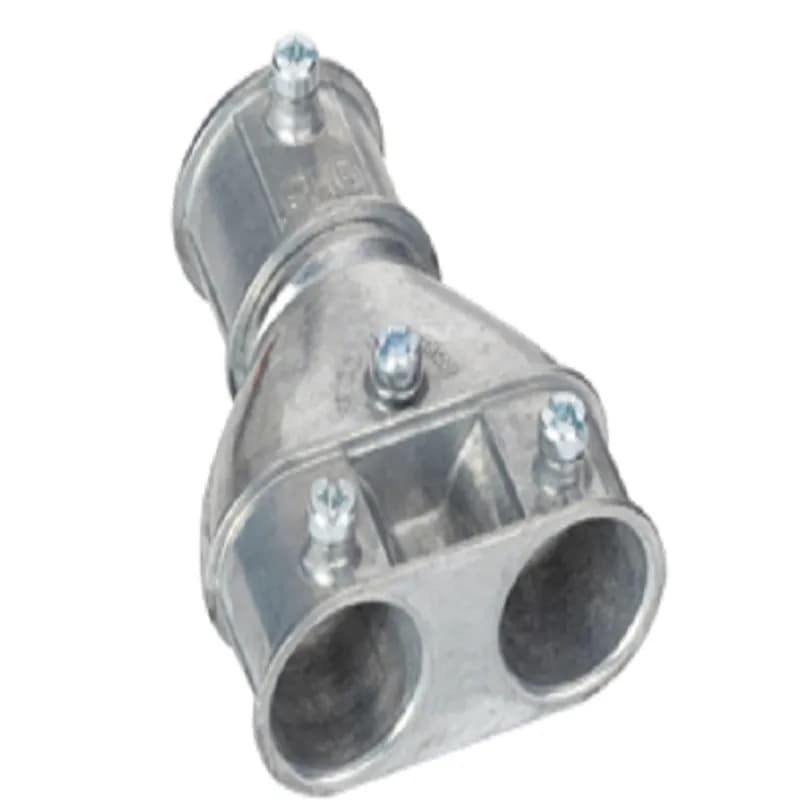

Mighty-Merge™ Transition Fittings. Two 3/4" to One 1" EMT Coupling

4258-DC

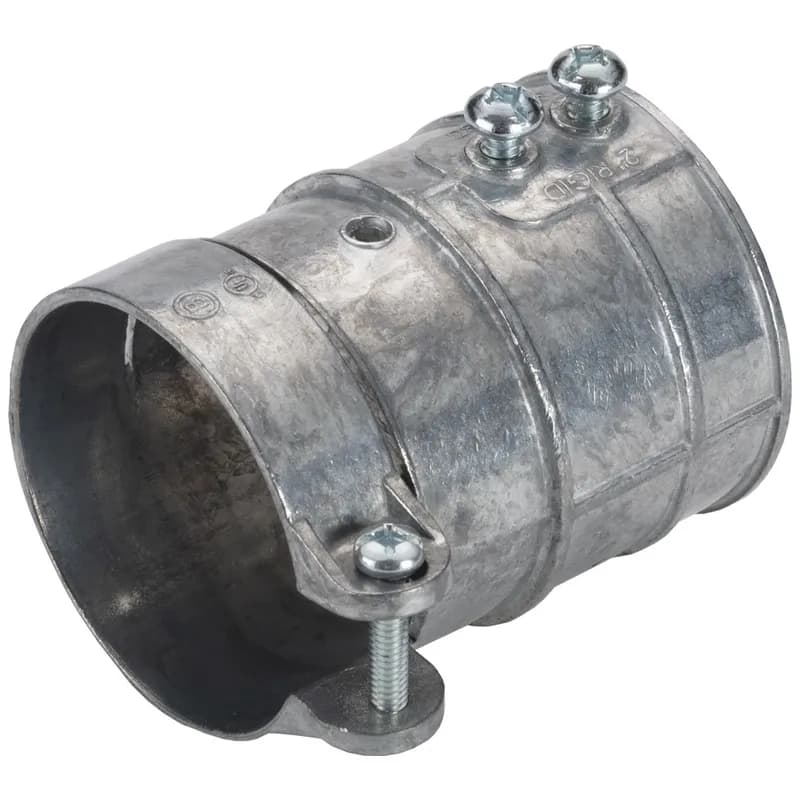

Mighty-Merge Threadless Rigid to FMC Transition Fitting, 2"

286-DCR

Frequently Asked Questions

What types of cables can the 630-NM2 accommodate?

The 630-NM2 can hold one 10/3 through 14/2 cable, one oval 10/2, 12/2, or 14/2, or two oval 14/3 or 12/3 cables, or two oval 10/2 through 14/2 NM cables.

What is the trade size of the 630-NM2?

The trade size of the 630-NM2 is 3/4 inches.

What are the certifications for the 630-NM2?

The 630-NM2 is cETLus Listed and meets UL Standard UL-514B.

What is the benefit of using the 630-NM2?

The 630-NM2 provides significant labor savings compared to traditional junction box or fitting assembly installations.

What material is the 630-NM2 made from?

The 630-NM2 is made from plastic PA-66.

What is the installation method for the 630-NM2?

The 630-NM2 allows for installation by simply squeezing the tabs to install or remove the cables.
