Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Overview

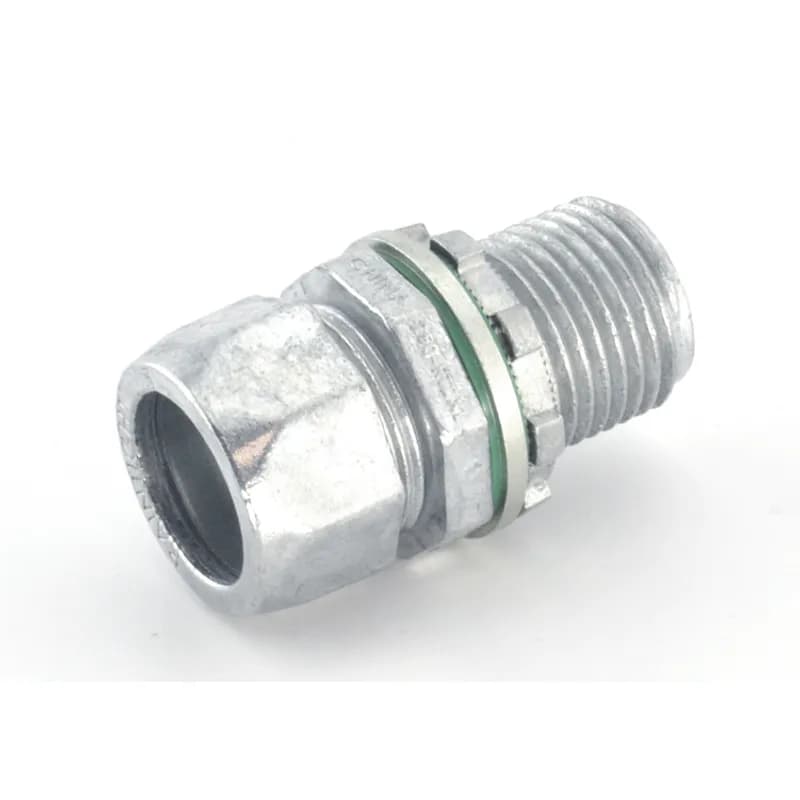

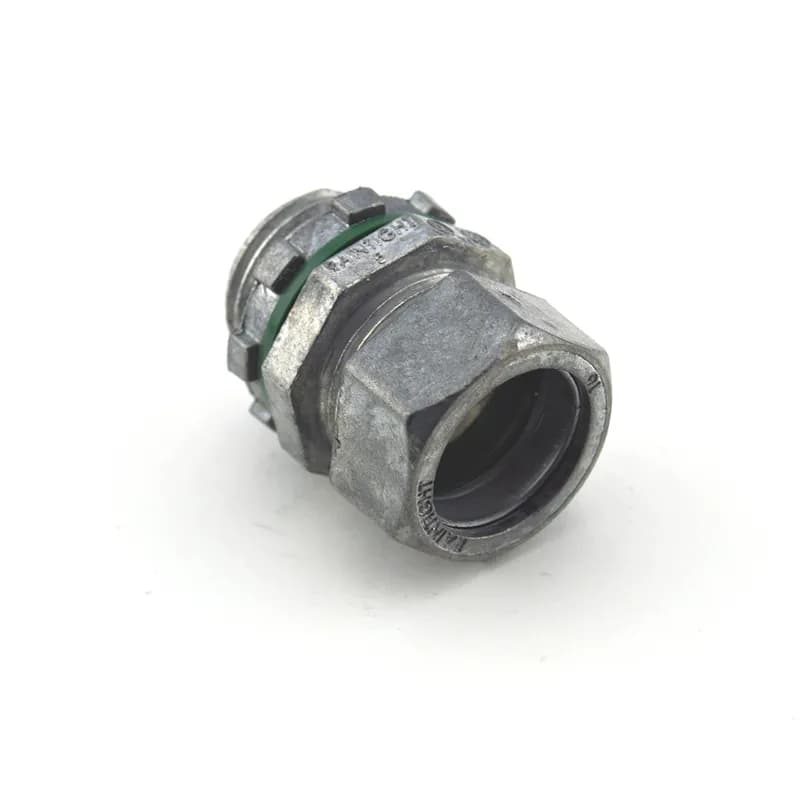

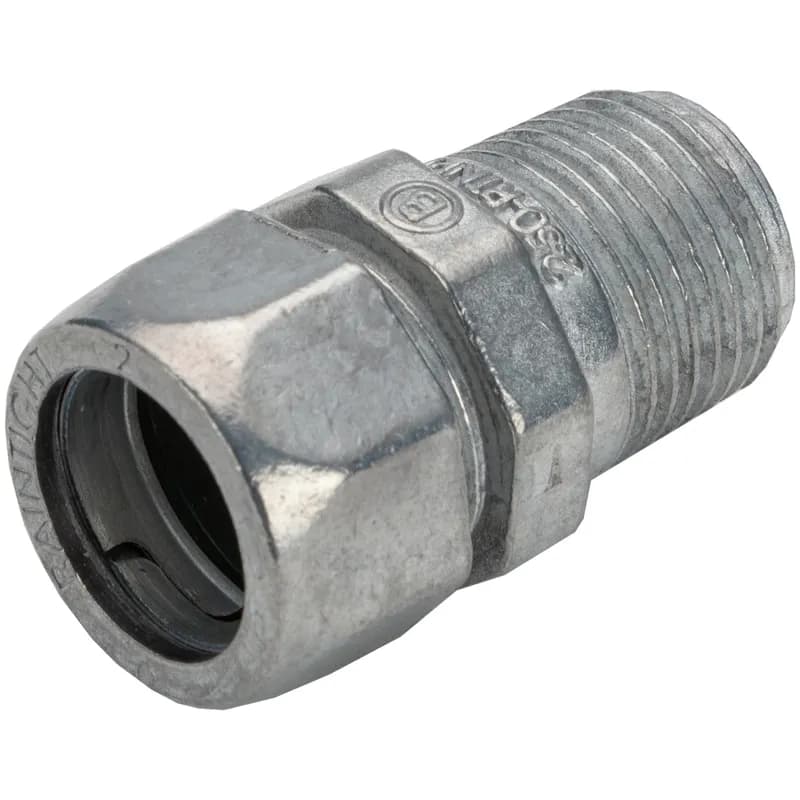

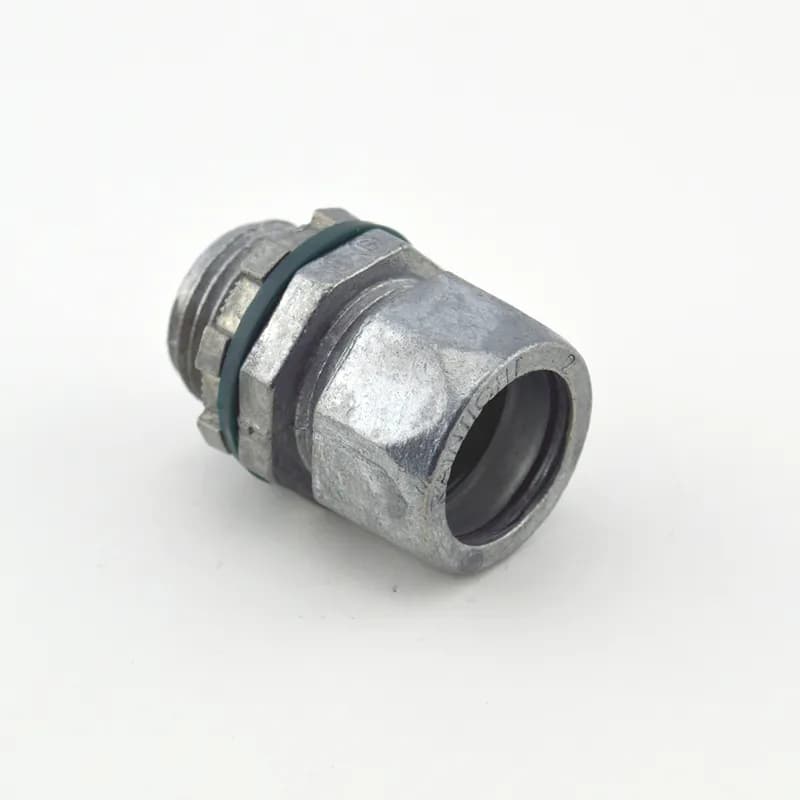

- Raintight compression connector for damp or wet locations
- Made in the U.S. by NSI Industries
- Ensures reliable electrical connections
- Prevents water ingress for long-term durability
- Simplifies installation with compression design
Specifications
Application | Compression style connector with internal sealing ring and knockout gasket to create a raintight seal when connecting EMT to box or enclosure. Insulated Throat - 90degreeC. Patented |
Color | Orange |
Connector Type | Raintight Compression |
Finish | Ball burnish |
Insulation | Insulated Throat |
Ip Rating | IP66/IP67 |
Material | Poly |
Material Quality | Zinc Die Cast |
Nema Rating | Type 4X |
Series | 250-RTI |
Size | 1/2 IN |
Special Features | Raintight/Concrete-Tight |
Standard | UL |
Temperature Rating, Maximum | 194 F |
Temperature Rating, Maximum | 90 C |
Temperature Rating, Maximum | 194.00000 F |
Temperature Rating, Maximum | 90 °C |
Temperature Rating, Minimum | 194 F |
Temperature Rating, Minimum | 90 C |
Temperature Rating, Minimum | 194.00000 F |
Temperature Rating, Minimum | 90 °C |
Trade Size | 1/2 in. |
Type | Connector |
Package Weight (Imperial) | 0.081 L |
Package Weight (Metric) | 0.037 kg |
Similar Products
Frequently Asked Questions
What is the trade size of the connector?
The trade size of the connector is 1/2 inch.
What is the material of the connector?
The connector is made of zinc die cast material.
Is the connector raintight?
Yes, it features an internal sealing ring and knockout gasket for a raintight seal.
What is the maximum operating temperature?
The maximum operating temperature is 90°C.
Where is the connector manufactured?
The connector is manufactured in the USA.
