Mencom Corporation MAPE-24.32 - E-Xtreme Series, Rectangular Base, Double Latch, Surface mount, size 104.27, Side M32 cable entry, High Construction
Mencom Corporation

MAPE-24.32

Documents & Media
BrochureVideo ClipManufacturer Product Website

Contact for Pricing

Overview

The Mencom Corporation MAPE-24.32 is a high-construction rectangular base from the E-Xtreme Series, engineered for demanding industrial applications requiring robust cable management and secure connections. This surface-mount unit features a double latch mechanism for reliable closure and a side M32 cable entry, enabling efficient routing of cables in harsh environments. Constructed from epoxy-coated die-cast aluminum, the base delivers exceptional mechanical strength and resistance to chemical agents, making it ideal for process automation and monitoring equipment in industrial settings. Key specifications include a 24-pole configuration with a 600V, 16A rating, and an IP65 rating for dust and water ingress protection. The unit measures approximately 104.4mm in length, 4.31mm in width, and 5.17mm in height, with a 7/8-16 UN2B female thread and M12x1 female thread for compatibility with standard hardware. The gasket is made of thermoplastic elastomer for superior sealing, while the handle is polyamide and the lever is stainless steel for durability. When paired with 304 or 316 stainless steel screws, the MAPE-24.32 meets UL Type 4X standards, and with any stainless steel screws, it meets UL Type 4 and Type 12 standards. Designed for process automation, the MAPE-24.32 is optimized for monitoring measuring equipment via process control systems, as indicated by its PROFIBS PA series designation. The UL file number E149111 confirms compliance with rigorous safety standards. This product is distributed by Gross Automation and manufactured in the US by Mencom Corporation, ensuring high-quality craftsmanship and reliable performance in critical industrial applications.
  • 24-pole configuration with 600V, 16A rating for high-power applications
  • Epoxy-coated die-cast aluminum construction for mechanical strength and chemical resistance
  • Side M32 cable entry for efficient cable management in harsh environments
  • Double latch mechanism for secure closure and IP65 dust/water ingress protection
  • UL Type 4/4X/12 compliant with 304/316 stainless steel screws (Type 4X)

Specifications

Material
Thermoplastic
Mounting Type
Surface Mount
Series
E-Xtreme Series
Size
104.27

Similar Products

MAPR-24.32

Material: Stainless Steel

Series: High-Temp Rectangular Base Double Latch

Material: Die-Cast Aluminum

MAOE-24.40

Material: Aluminum Die-Cast

IP Rating: IP65

Series: E-Xtreme

MAOS-24.32

Material: Aluminum Die Cast

Ip Rating: IP68/IP69

Series: EMI

MAVS-24.32

Material: Aluminum Die Cast

Mounting Type: Rectangular Hood

Series: EMC Rectangular Hood High Construction

MAOS-24.40

Material: Die-Cast Aluminum

Ip Rating: IP66/IP69

Mounting Type: Side M40 Cable Entry, 4 Pegs

MAVS-24.40

You May Also Be Interested In

Plastic, T Series, Rectangular Base, Double Latch, Surface mount, size 104.27, Side M32 cable entry

TMAP-24.32

Standard, Rectangular Base, Double Latch, Surface mount, size 104.27, 2 x Side M40 cable entry

MAP-24.240

Plastic, T Series, Rectangular Base, Double Latch, Surface mount, size 104.27, Side M40 cable entry

TMAP-24.40

Plastic, T Series, Rectangular Base, Double Latch, Surface mount, size 77.27, Side M32 cable entry

TMAP-16.32

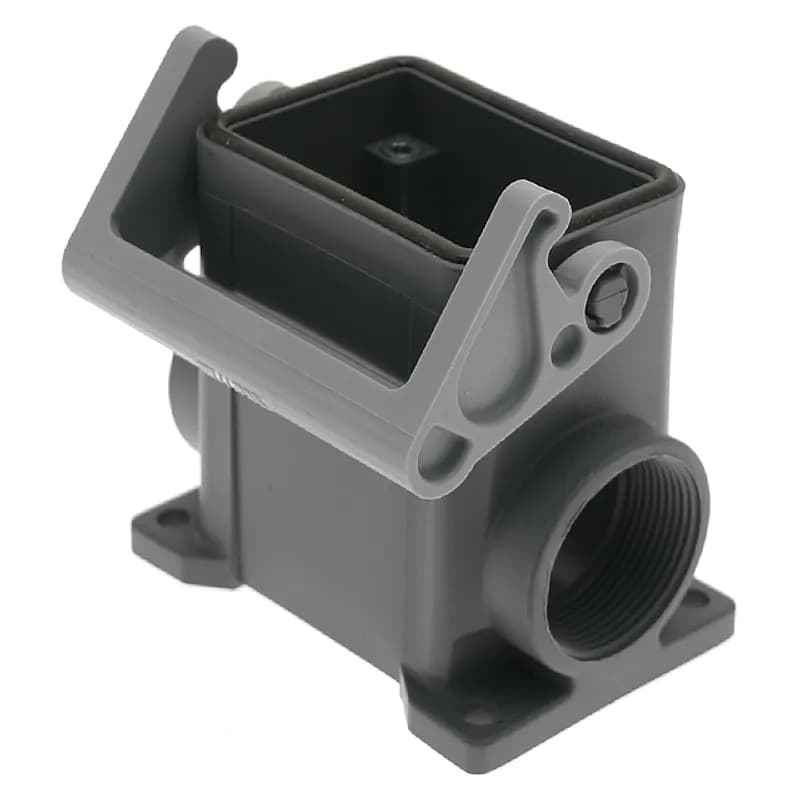

Plastic, T Series, Rectangular Base, Single Latch, Surface mount, size 44.27, Side M32 cable entry
