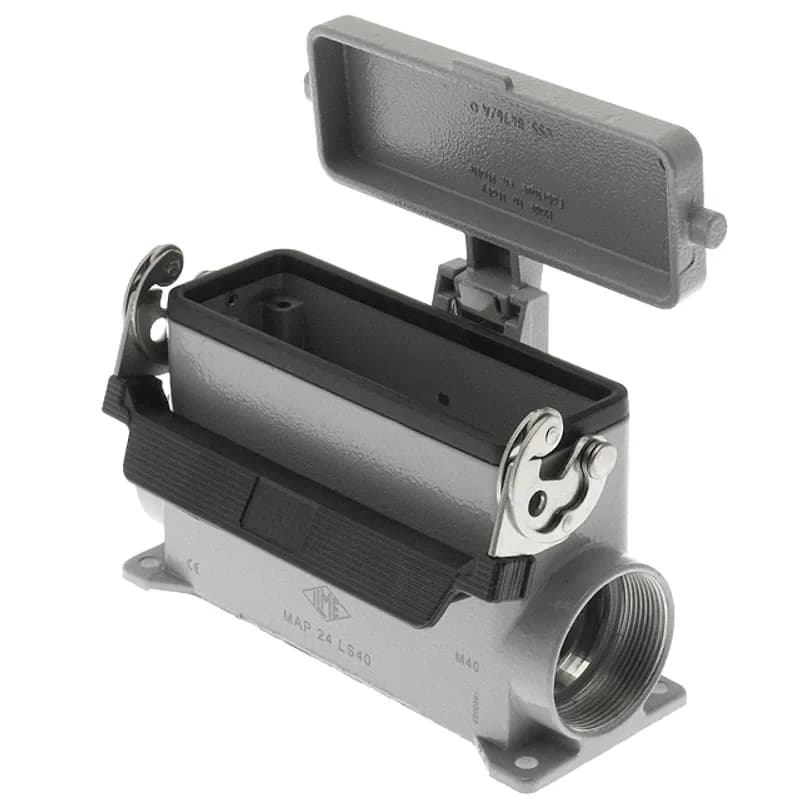

Mencom Corporation MAP-24LS40 - Standard, Rectangular Base, Single Latch, Surface mount, size 104.27, Side M40 cable entry
Mencom Corporation

MAP-24LS40

Documents & Media
BrochureTechnical DrawingLine DrawingVideo ClipManufacturer Product Website

Contact for Pricing

Overview

The Mencom MAP-24LS40 is a 24-pole, surface mount rectangular connector designed for process automation applications. This unit features a thermoplastic housing and a single lever for secure closure. It is rated for 600V and 16A, with an IP65 rating, making it suitable for demanding industrial environments. The base is configured for side M40 cable entry, providing a robust connection point for M40 threaded conduits. Its dimensions are approximately 104.27mm in size. The MAP-24LS40 is part of the Profibus PA series, a standard for fieldbus communication optimized for monitoring measuring equipment via process control systems. This connector offers a reliable interface for data transmission in factory floor settings. UL File #E149111 confirms its compliance. Originates from Germany (DE).
  • 24 Pole, 600V, 16A Thermoplastic Housing
  • Single Lever for Secure Closure
  • Surface Mount Rectangular Base
  • Side M40 Cable Entry
  • IP65 Rated for Industrial Environments

Specifications

Mounting Type
Surface Mount
Series
Profibus PA
Size
104.27 mm

Similar Products

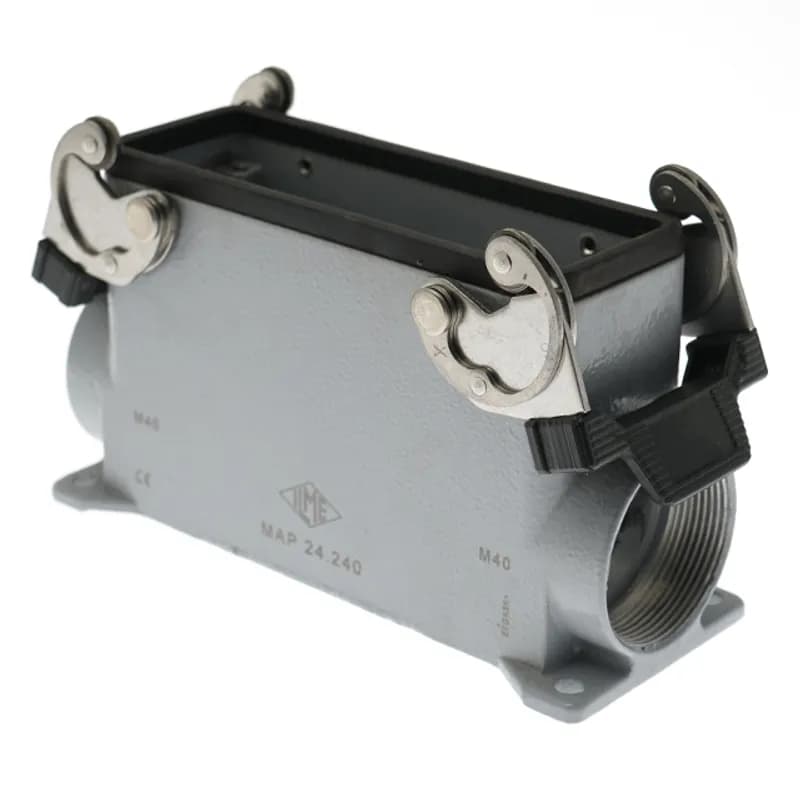

MAP-24.240

MAP-16LS40

Material: Aluminum Die-Cast

Size: 77.27 mm

IP Rating: IP65

MAO-24L32

MAO-24L40

Material: Aluminum

Size: 104.27

IP Rating: IP65

MAP-10LS232

Material: Aluminum Die-Cast

Size: 57.27 mm

IP Rating: IP65

MAP-10LS32

Material: Aluminum Die Cast

Size: 57.27

IP Rating: IP65

You May Also Be Interested In

Standard, Rectangular Base, Double Latch, Surface mount, size 104.27, 2 x Side M40 cable entry

MAP-24.240

Standard, Rectangular Base, Double Latch, Surface mount, size 77.27, Side M40 cable entry

MAP-16.40

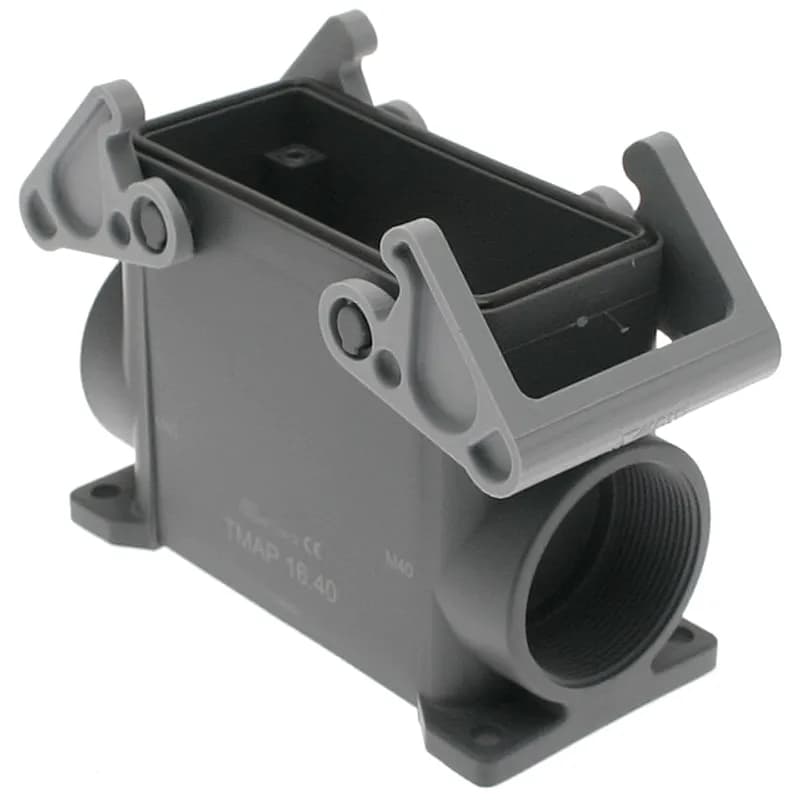

Plastic, T Series, Rectangular Base, Double Latch, Surface mount, size 104.27, Side M40 cable entry
