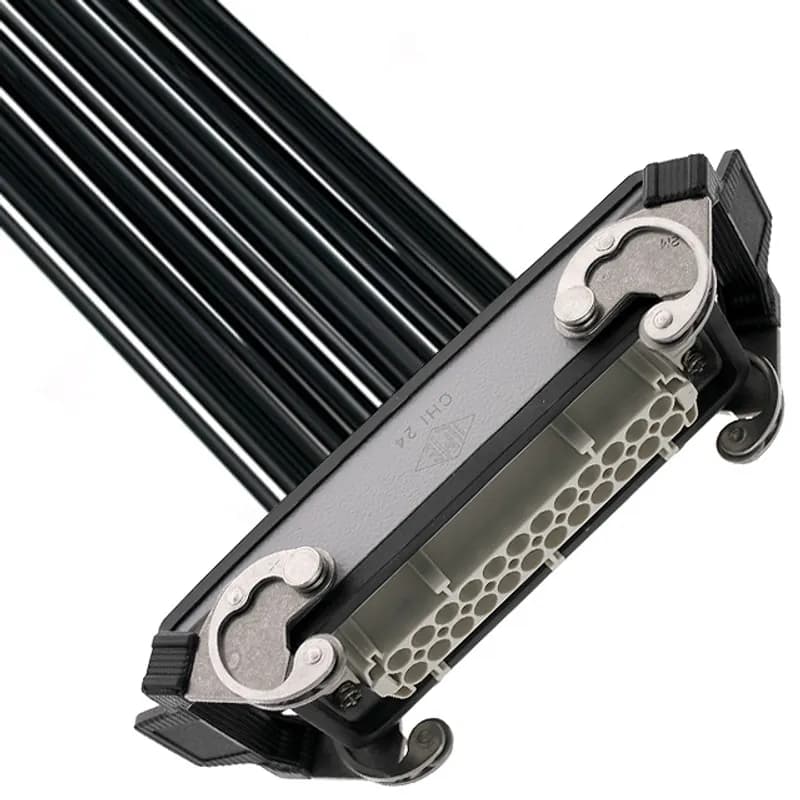

Mencom Corporation IRCD-24NF-140-003 - Pre-wired Female Rectangular Receptacles, 24 Pole, Double Latch, 14 awg, 0.3M, Squich Spring
Mencom Corporation

IRCD-24NF-140-003

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The Mencom Corporation IRCD-24NF-140-003 is a pre-wired female rectangular receptacle designed for efficient panel connections. This unit features a 24-pole configuration, ensuring ample connectivity for complex electrical systems. Each receptacle comes fully wired, simplifying installation by eliminating the need for on-site wire termination. The internal wiring consists of black wires, each clearly marked with printed numbers corresponding to their specific pin locations, facilitating quick and accurate connections within your control panel. The receptacle utilizes a double latch mechanism for secure mating and a Squich spring for reliable contact. The wire length for this specific model is 0.3 meters (0.3M), providing a concise connection solution. Mencom Corporation offers these pre-wired receptacles in configurations ranging from 6 poles to 24 poles to accommodate various application requirements. Standard wire lengths are available at 0.5m, 1m, and 2m, with longer lengths customizable upon request. Manufactured in the USA, this component adheres to high production standards. Its UNSPSC code is 39121406.
  • 24-pole female rectangular receptacle for robust connections
  • Fully pre-wired with numbered black wires for easy identification
  • Double latch mechanism ensures secure and reliable mating
  • Squich spring design for dependable contact
  • 0.3-meter wire length for compact installations

Specifications

Color
Black
Connection Type
Squich Spring
Mounting Type
Panel Mount
Poles
24
Series
IRCD

Similar Products

IRCD-24NF-140-010

IRCD-24NF-140-020

Material: Poly

Material: Plastic

Size: 24 Pole

IRCD-24NF-160-003

Material: Composite (Plastic/Metal)

IRCD-24NF-160-010

Material: Poly

Material: Metal (Receptacle), Copper (Wires)

Material: Metal, Plastic

IRCD-24NF-160-020

IRCD-24NM-140-003

Material: Poly

Series: Mencom Rectangular Receptacles

Material: Plastic

You May Also Be Interested In

Pre-wired Female Rectangular Receptacles, 24 Pole, Double Latch, 14 awg, 1M, Squich Spring

IRCD-24NF-140-010

Pre-wired Female Rectangular Receptacles, 24 Pole, Double Latch, 14 awg, 2M, Squich Spring

IRCD-24NF-140-020

Pre-wired Female Rectangular Receptacles, 24 Pole, Double Latch, 16 awg, 0.3M, Squich Spring

IRCD-24NF-160-003

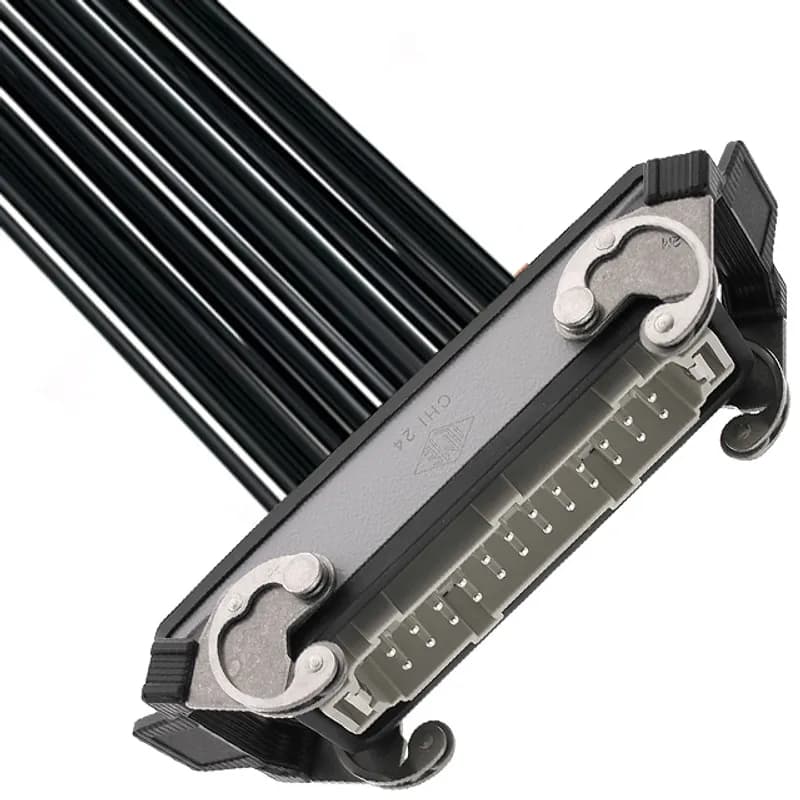

Pre-wired Male Rectangular Receptacles, 24 Pole, Double Latch, 14 awg, 0.3M, Squich Spring
