Mencom Corporation GFDP1-USB-AFAF-10R-32 - Panel Interface Connector with GFCI Duplex Outlet Outside and Simplex Outlet inside, form A USB to form A USB, and a 10amp reset, in a 32 housing
Mencom Corporation

GFDP1-USB-AFAF-10R-32

Documents & Media
Technical DrawingLine DrawingVideo ClipManufacturer Product Website

Contact for Pricing

Overview

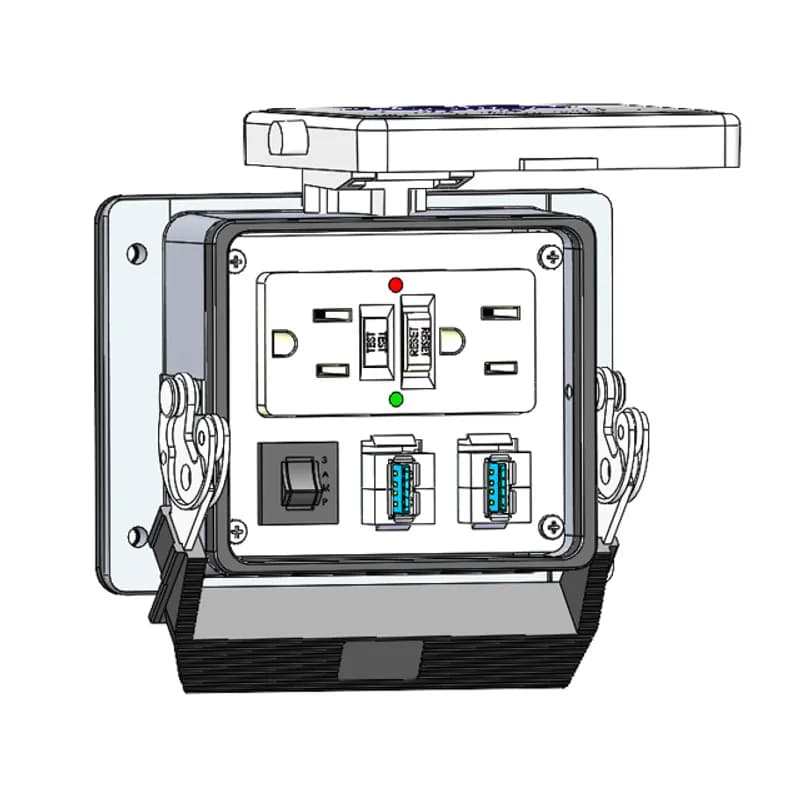

The Mencom GFDP1-USB-AFAF-10R-32 Panel Interface Connector (PIC) provides secure external access to internal control systems without opening panel doors. This device mounts to the exterior of a control panel housing PLCs, computers, or programmable devices, featuring a GFCI duplex outlet outside, a simplex outlet inside, and a form A USB to form A USB connection. The 10A reset ensures overload protection, while the 32 housing accommodates standard panel cutouts. By eliminating the need to open enclosures, the PIC enhances shop floor safety and compliance with NFPA 70E electrical safety standards. Mencom offers over 2000 PIC configurations, with custom designs available upon request. Ideal for industrial automation, manufacturing, and process control applications where secure, code-compliant access is critical.
  • GFCI duplex outlet outside, simplex outlet inside for dual power access
  • Form A USB to form A USB passthrough connection
  • 10A reset for overload protection
  • 32 housing fits standard panel cutouts
  • Enhances NFPA 70E compliance by reducing panel door openings

Specifications

Connection Type
Panel Interface Connector
Connection Type
Pass-through
Connection Type
Form A USB to form A USB
Current Rating
10 A
Mounting Type
Panel Mount
Poles
USB (Form A to Form A)
Poles
USB + GFCI Duplex + Simplex
Poles
USB + GFCI duplex + simplex outlet
Series
GFDP1
Size
32 in
Size
32 housing
