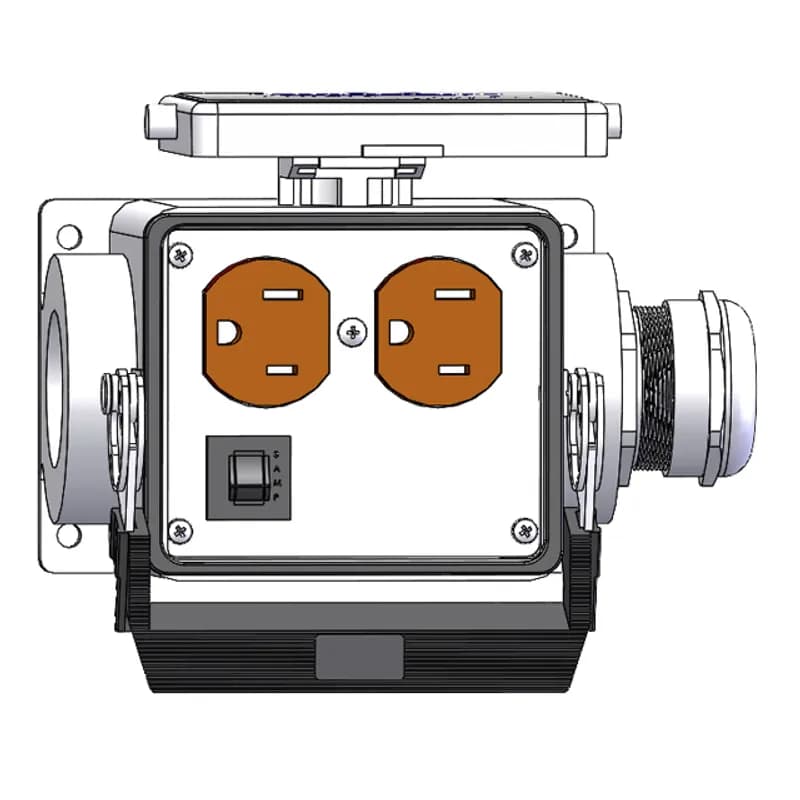

Mencom Corporation DP-R-P32 - Panel Interface Connector with Duplex outlet, and 3amp reset, in a 32 surface mount housing
Mencom Corporation

DP-R-P32

Documents & Media
Technical DrawingLine DrawingVideo ClipManufacturer Product Website

Contact for Pricing

Overview

The Mencom DP-R-P32 Panel Interface Connector (PIC) is a 32-position surface mount device designed for secure external mounting on control panels housing PLCs, computers, or programmable devices. This PIC features a duplex outlet and a 3A reset mechanism, enabling convenient pass-through connections without opening the panel door. By eliminating frequent panel access, the DP-R-P32 enhances shop floor safety and helps comply with NFPA 70E electrical safety standards. With over 2000 standard designs available, Mencom offers a broad selection of PIC configurations to meet diverse application needs. If a standard solution isn't available, Mencom's engineering team can collaborate to develop a custom configuration tailored to your specific requirements. The 32-position housing supports high-density wiring solutions, making it ideal for space-constrained control panels where organization and accessibility are critical. The surface mount design ensures stable installation while maintaining IP-rated protection when properly sealed. Suitable for industrial automation, manufacturing, and process control environments where reliable device interfacing and safety compliance are priorities.
  • 32-position surface mount housing for high-density wiring
  • Duplex outlet with 3A reset for device connectivity
  • External mounting eliminates need to open control panel doors
  • Enhances safety compliance with NFPA 70E standards
  • Over 2000 standard designs available; custom solutions supported

Specifications

Current Rating
3 A
Mounting Type
Surface Mount
Series
DP-R
Size
32 in

Similar Products

DP-2-P32

Poles: 2 Duplex

Series: DP

DP-R-32

Mounting Type: Panel Mount

Series: DP

DP-R-TS

Size: TS housing

Mounting Type: Panel Mount

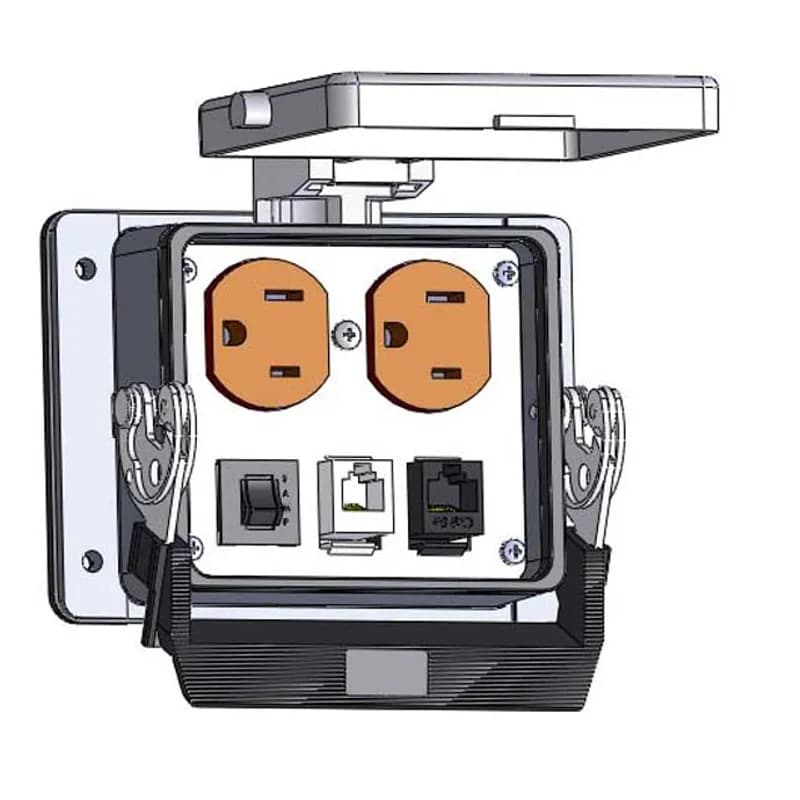

DP-RJ11-RJ45-R-32

DP-RJ11-USB-BFAF-R-32

Mounting Type: Panel Mount

Series: DP

Size: 32-size

DP-RJ45-10R-32

Current Rating: 10 A

Size: 32 housing

Poles: RJ45 (8 pins)

You May Also Be Interested In

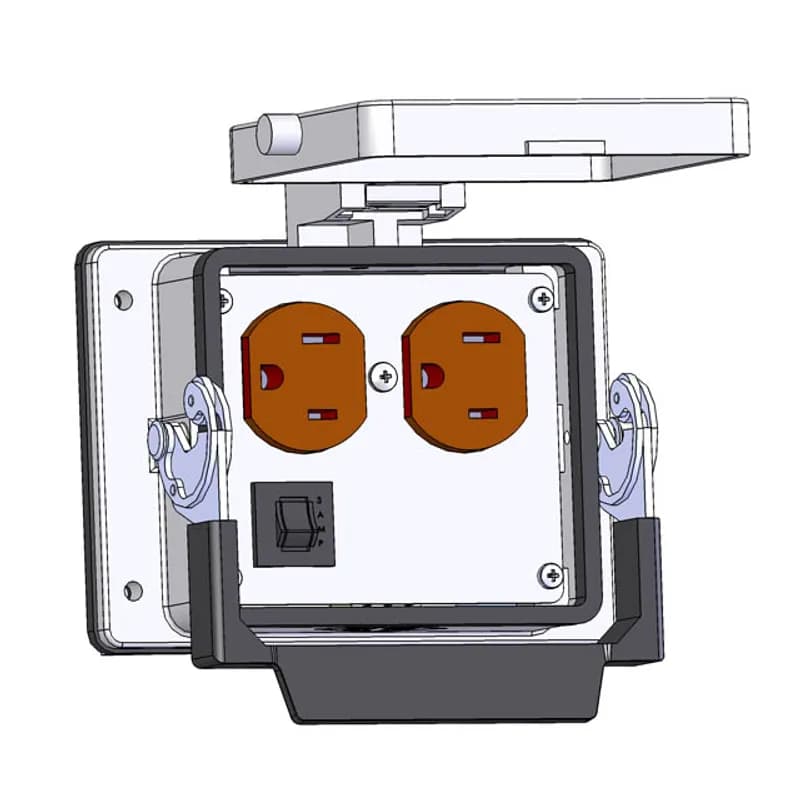

Panel Interface Connector with Duplex outlet, and a 3amp reset, in a 32 housing

DP-R-32

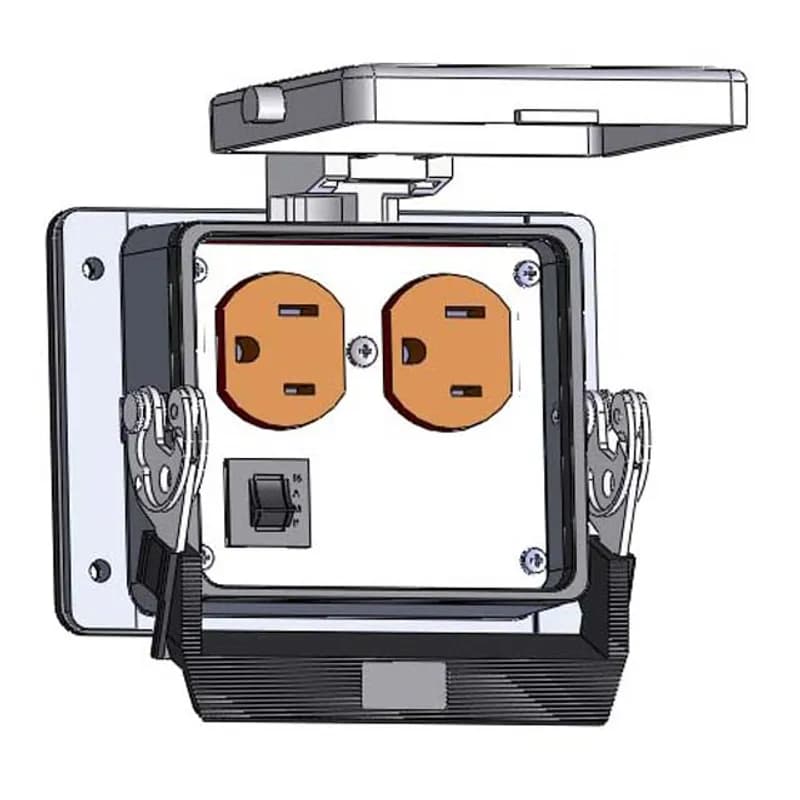

Panel Interface Connector with Duplex outlet, and 15amp reset, in a 32 housing

DP-15R-32

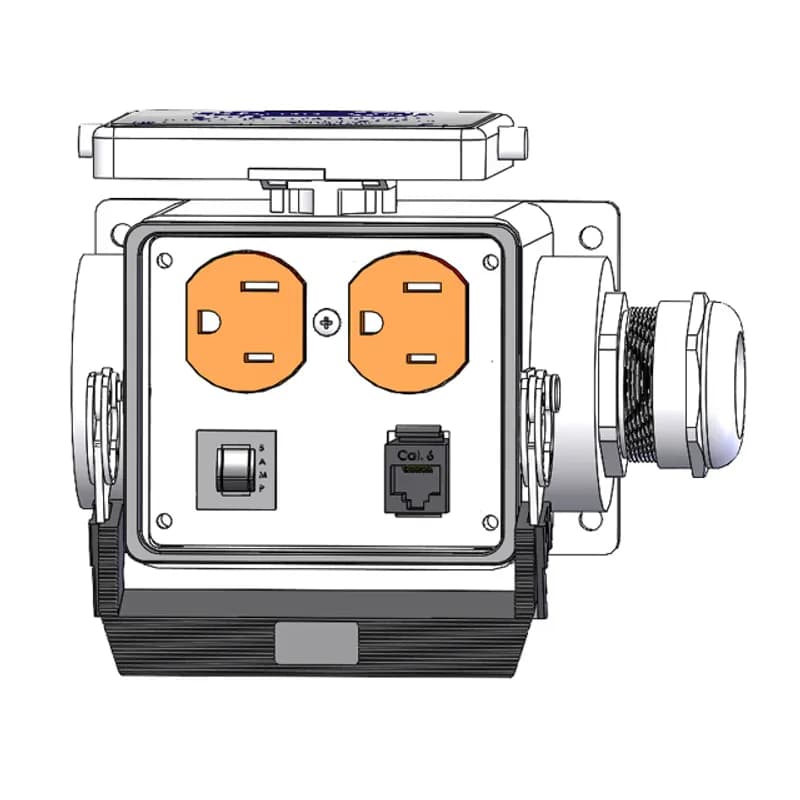

Panel Interface Connector with Duplex outlet, RJ45, and a 5amp reset, in a 32 surface mount housing

DP-RJ45-5R-P32

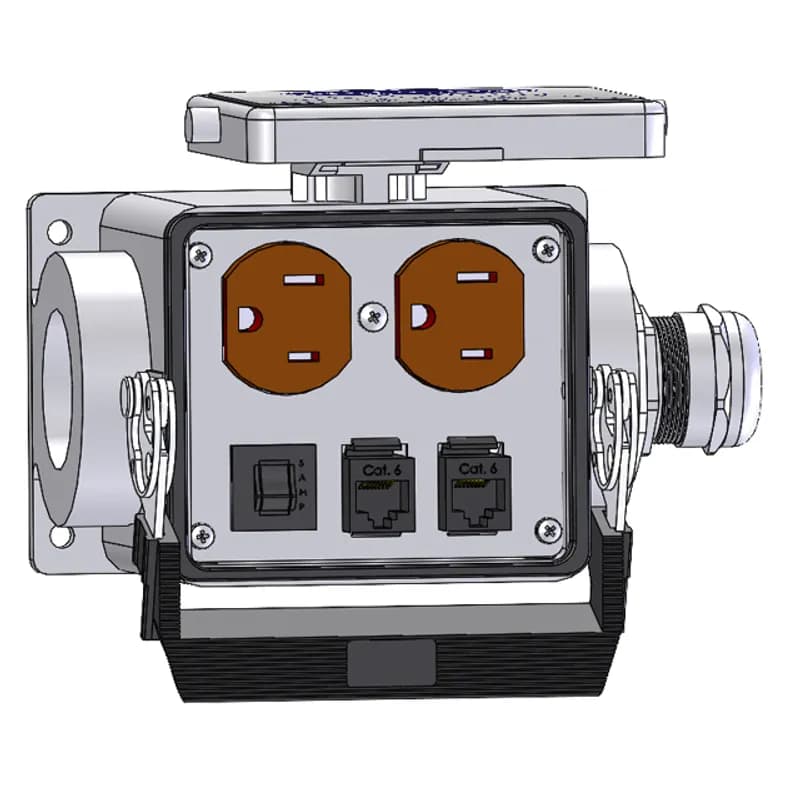

Panel Interface Connector with Duplex outlet, 2 x RJ45, with a 5amp reset, in a 32 surface mount housing

DP-2RJ45-5R-P32

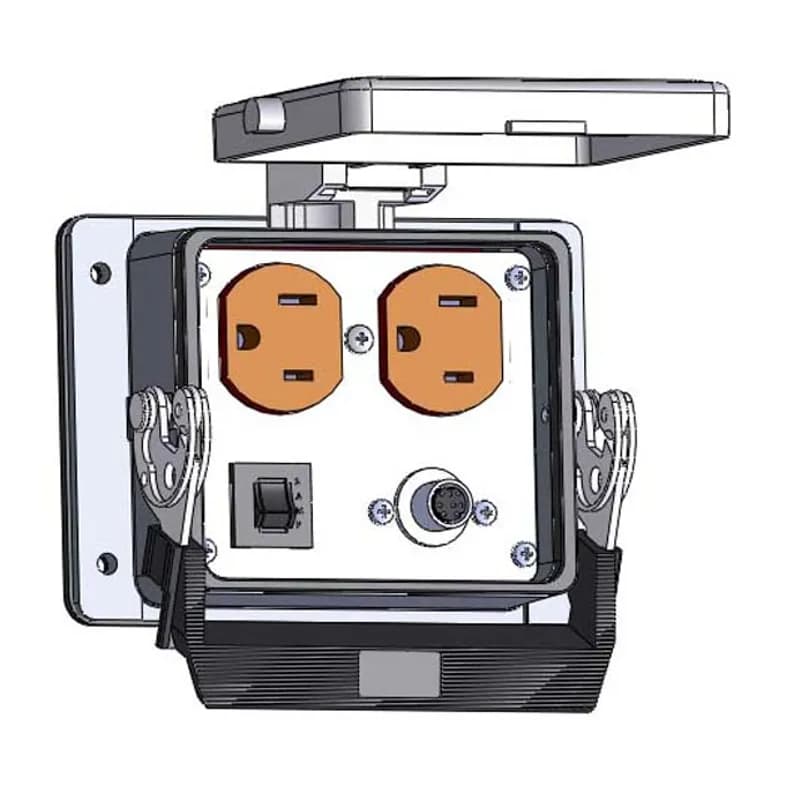

Panel Interface Connector with Duplex outlet, 8M, and a 3amp reset, in a 32 housing
