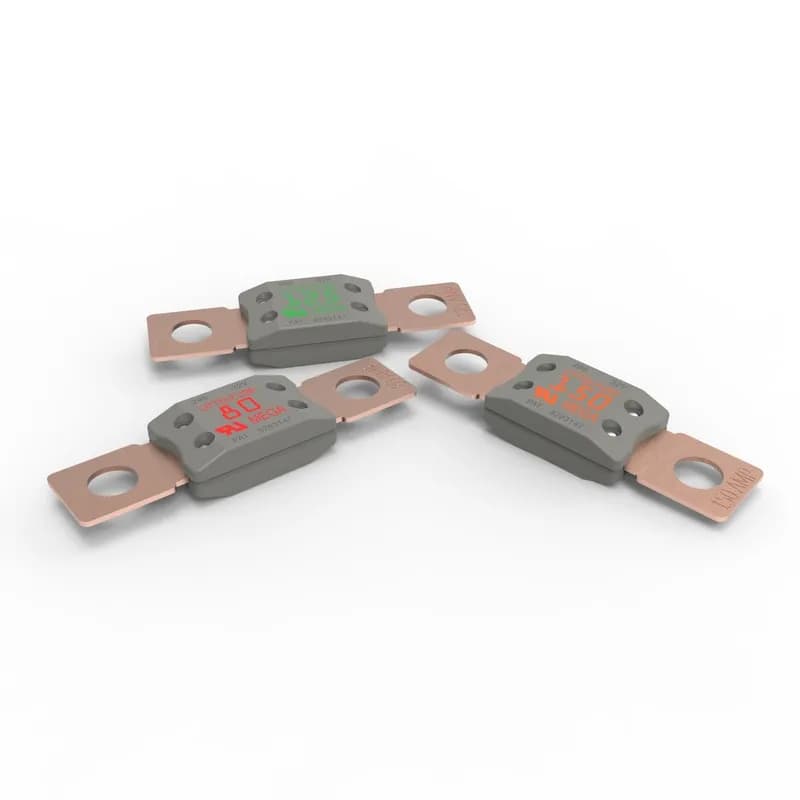

Littelfuse 0298100.ZXEH - FUSE - MEGA 32V 100A. The MEGA® Fuse is designed for high current circuit protection with "Diffusion Pill Technology." The MEGA® Fuse also provides time delay characteristics. Designed and patented by Littelfuse, the MEGA® Fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.
Littelfuse

0298100.ZXEH

UPC: 079458168808

Documents & Media
BrochureSpecification Sheet

Contact for Pricing

Minimum Qty: 500

Multiplier: 500

*Contact for lower quantities*

Overview

The Littelfuse MEGA® Fuse, SKU 0298100.ZXEH, is engineered for robust high-current circuit protection in demanding industrial and automotive applications. Featuring Littelfuse's patented Diffusion Pill Technology, this 32V, 100A fuse provides reliable overcurrent protection with essential time-delay characteristics. This design is ideal for applications prone to momentary surges, such as battery and alternator protection, and other heavy-gauge cable systems that require ultra-high current safeguarding. The MEGA® Fuse is specifically designed for scenarios where standard fuses are insufficient, ensuring critical electrical components are protected from damage. Key features include Diffusion Pill Technology for enhanced interruption efficiency and time-delay capabilities to prevent nuisance tripping during transient load changes. With a maximum operating voltage of 32V and a current rating of 100A, it is suitable for heavy-duty use. Industries that benefit from this fuse include automotive (for alternators and battery systems), industrial machinery, and renewable energy sectors (for battery storage and solar inverters). Littelfuse, a long-standing leader in circuit protection, guarantees quality and reliability through innovations like Diffusion Pill Technology. Installation is straightforward, compatible with standard MEGA fuse sizes. Proper torque during installation is crucial for optimal electrical contact and performance. This fuse is manufactured in the US.
  • 32V Voltage Rating
  • 100A Current Rating
  • MEGA Fuse Size
  • Diffusion Pill Technology
  • Time Delay Characteristics

Specifications

Application
Automotive
Brand Name
Littelfuse
Special Features
Splashproof
Sub Brand
MEGA Series
Type
Bolt Down Fuse Holder
