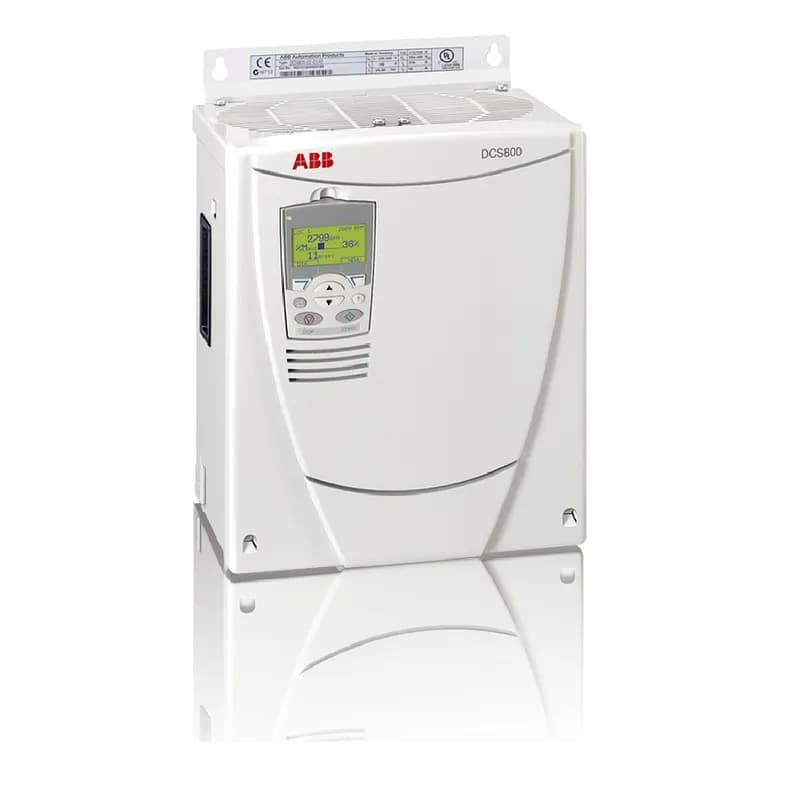

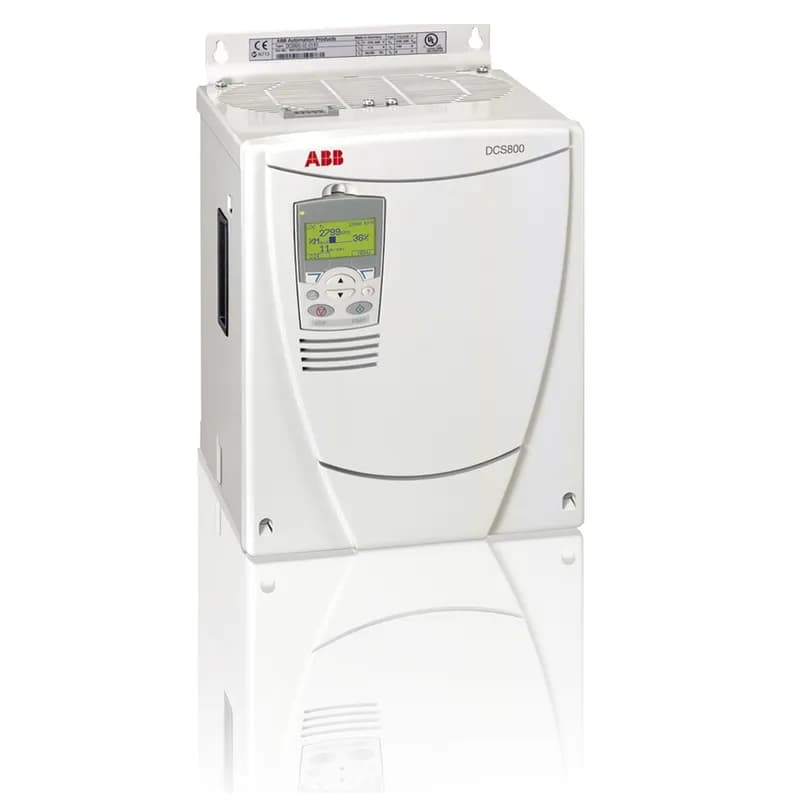

ABB - Low Voltage Drives DCS800-S02-0050-05+J409+K462+L501+L509 - MODULE DRIVE 4-QUADRANT (REVERSING), Product Family: DCS800, Horsepower: 10 HP @ 230 VAC / 25 HP @ 460 VAC, Output Current: 47 A @ 240 VDC / 47 A @ 500 VDC, Voltage: 230 VAC/240 VDC & 460 VAC/500 VDC, UL TYPE OPEN (IP00), Mounting: Wall-mount, NEMA 4x Cabinet Panel Mounting, ControlNet Adapter, Digital I/O Extension Board, DDCS Communications Board, 3-Phase Input, Frame: D1, Product HxWxD: 14.6 in x 10.6 in x 7.9 in, Product Weight: 24 lbs
ABB - Low Voltage Drives

DCS800-S02-0050-05+J409+K462+L501+L509

Alternate Item Number: 3AUA0000127244

UPC: 662348074367

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The ABB DCS800-S02-0050-05+J409+K462+L501+L509 is a high-performance 4-quadrant (reversing) drive from ABB's Low Voltage Drives series, designed for demanding industrial applications. With a power rating of 10 HP at 230VAC and 25 HP at 460VAC, this drive delivers reliable operation in both forward and reverse directions, making it ideal for applications requiring precise speed control and dynamic braking. Featuring a robust construction with NEMA 4x and IP00 ratings, it ensures durability in harsh environments. The drive supports 3-phase input and includes a ControlNet adapter, digital I/O extension board, and DDCS communications board for seamless integration into automation systems. Its compact dimensions (14.6 in x 10.6 in x 7.9 in) and wall-mount design allow for flexible installation. Whether used in manufacturing, material handling, or process control, this drive offers superior performance, energy efficiency, and ease of maintenance.
  • 4-quadrant (reversing) drive with 10 HP @ 230VAC and 25 HP @ 460VAC power ratings
  • 47A output current at 240VDC and 500VDC for high-performance applications
  • NEMA 4x and IP00 ratings for durability in industrial environments
  • Wall-mount design with compact dimensions (14.6 in x 10.6 in x 7.9 in)
  • Includes ControlNet adapter, digital I/O extension board, and DDCS communications board for advanced connectivity

Specifications

Connection Type
3-Phase Input
Current Rating
47 A
IP Rating
IP00
Mounting Type
Wall-mount, NEMA 4x Cabinet Panel Mounting
Nema Rating
Type 4X
Nema Rating
NEMA 4X
Poles
3-Phase
Series
DCS800
Size
14.6 in x 10.6 in x 7.9 in
Voltage Rating
230 VAC/240 VDC & 460 VAC/500 VDC
Package Dimensions (L x W x H)
21 in x 15 in x 15 in
Package Dimensions (L x W x H)
53.34 cm x 38.1 cm x 38.1 cm
Package Weight (Imperial)
31.000 L
Package Weight (Metric)
14.062 kg

Similar Products

DCS800-S02-0075-05+J409+K462+L501+L509

Current Rating: 71 A

DCS800-S02-0050-05+J409

Mounting Type: Wall-mount

DCS800-S02-0350-05+S199+K451+L508

DCS800-S02-0260-05+J409+L509

Current Rating: 247 A

Size: 14.6 in x 10.6 in x 10.6 in

DCS800-S02-0075-05+J409

DCS800-S02-0100-05+J409
