ABB - Low Voltage Drives
ACS880-31-180A-5+J425+K475
Alternate Item Number: 3AXD50000559992
Contact for Pricing
Overview

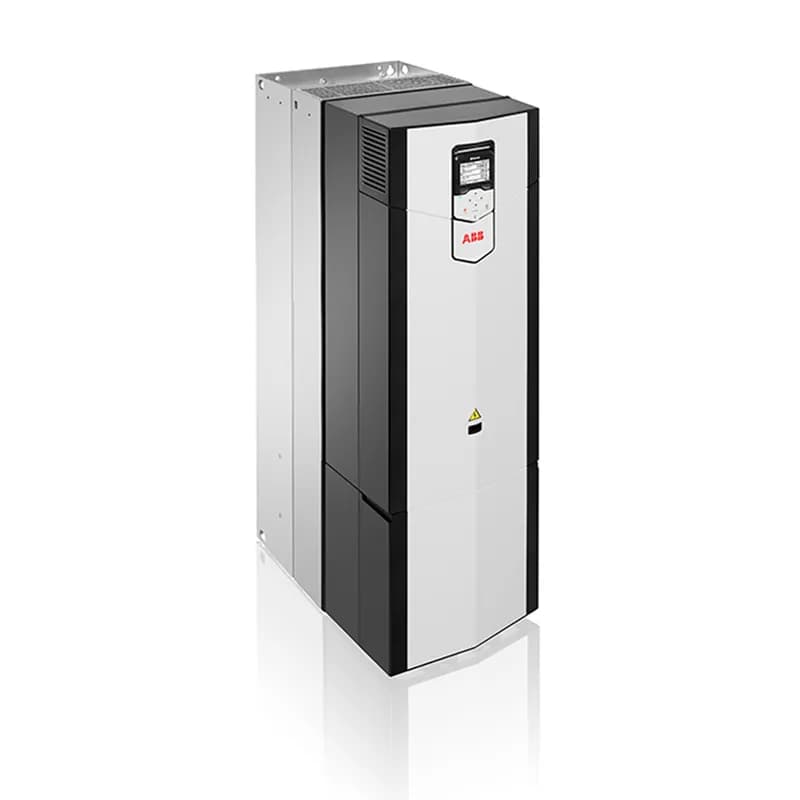

The ABB ACS880-31-180A-5+J425+K475 AC Drive is a high-performance industrial drive designed for demanding applications requiring efficiency, reliability, and advanced connectivity. With a power rating of 150HP and a current capacity of 180A, this drive operates across a voltage range of 3-380-500V, making it versatile for various industrial environments. Featuring a Type 1 overload capacity of 1.1, it ensures robust performance under heavy loads. The drive includes high-performance 2-port Ethernet connectivity, supporting Ethernet/IP, Modbus/TCP, and PROFINET protocols, enabling seamless integration into modern automation systems. Its compact yet durable design, with dimensions of 37.99x11.81x16.93 inches, allows for easy installation in space-constrained environments. The ULH wall-mount configuration enhances flexibility in industrial setups. Engineered with harmonic mitigation capabilities, the ACS880 drive helps reduce energy costs and improve system efficiency. Ideal for applications in manufacturing, material handling, and process automation, this drive delivers the performance and connectivity needed for today's industrial challenges.
- 150HP, 180A AC Drive with 3-380-500V input voltage range
- High-performance 2-port Ethernet with Ethernet/IP, Modbus/TCP, and PROFINET support
- Type 1 overload capacity of 1.1 for robust performance under heavy loads
- Compact ULH wall-mount design (37.99x11.81x16.93 inches) for space-efficient installation
- Harmonic mitigation capabilities for improved energy efficiency and system reliability
Specifications
Amerage | 180 A |
Control Panel | Assistant Industrial |
Enclosure UL Type | 1 |
Frame Size | R8 |
Height | 37.99 in |
Horsepower | 150 HP |
Horsepower 10% & 50% Overload/ 1 min | 150 HP |
Input Phase | 3-Phase |
IP Rating | IP21 |
Length | 16.93 in |
Mounting | ULH Wall |
Number of Phases Input | 3 |
Number of Phases Output | 3 |
Options | High performance 2-port Ethernet, Ethernet/IP, Modbus/TCP, PROFINET |
Output Current | 180 A |
Output Current 10% & 50% Overload/ 1 min | 180 A |
Output Phase | 3-Phase |
Phases | 3-Phase A |
Type | ACS880 Drive |
UL Enclosure Construction | 1 |
UL Type | 1 |
Voltage | 480 V |
Voltage Range | 380-500 V |
Voltage Range | 380-500 |
Voltage Rating | 480 VAC |
Voltage Rating | 480 V |
Weight | 154 lb |
Width | 11.81 in |
Width | 299.974 mm |
Package Dimensions (L x W x H) | 16.93 IN x 11.81 IN x 37.99 IN |
Package Dimensions (L x W x H) | 43.0022 cm x 29.9974 cm x 96.4946 cm |
Package Weight (Imperial) | 154.000 L |
Package Weight (Metric) | 69.854 kg |
