ABB - Low Voltage Drives
ACS255-03U-04A1-6+B063+F278
Alternate Item Number: 3AUA0000199609
UPC: 662348077788
Documents & Media
Contact for Pricing
Overview

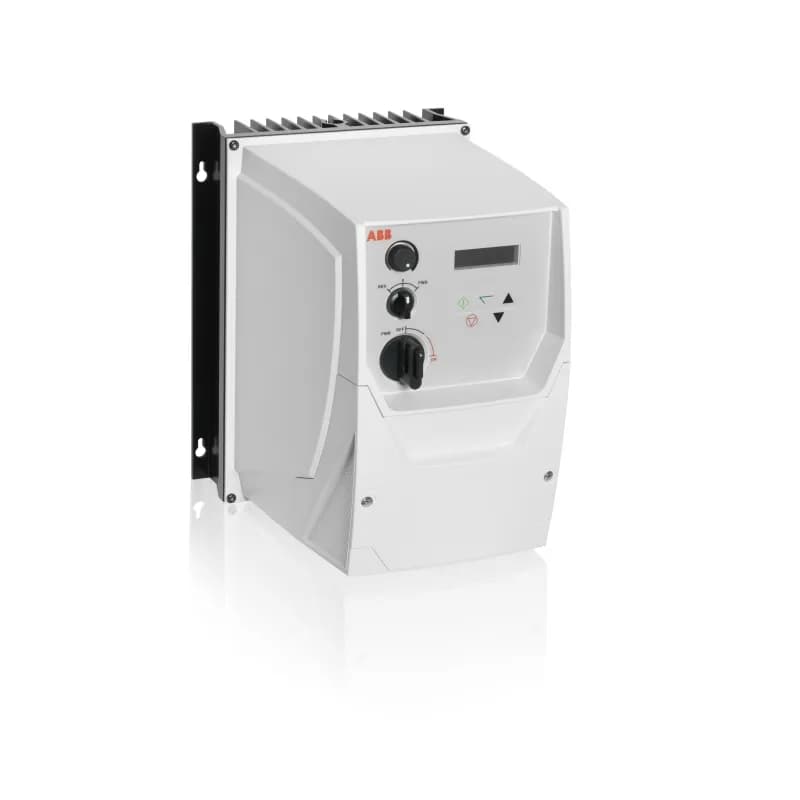

The ABB ACS255 AC Drive (SKU: ACS255-03U-04A1-6+B063+F278) provides reliable motor control for industrial applications. This low-voltage drive operates within a wide input voltage range of 3-500-600V and is rated for 3 horsepower (HP) with a continuous output current of 4.1 amps (A). It features a 1.5 overload capacity, allowing it to handle temporary surges in demand. Designed for challenging environments, the ACS255 boasts a Type 4X protection rating, safeguarding against water and dust ingress. Installation is simplified with its wall-mounting design and integrated drive main switch. The compact dimensions of 10.12 inches in height, 7.4 inches in width, and 7.09 inches in depth ensure efficient space utilization. Manufactured by ABB, a leader in low-voltage drives, this unit offers consistent performance and operational flexibility for various industrial processes.
- 3HP, 4.1A motor control
- Wide input voltage range: 3-500-600V
- Type 4X protection rating for harsh environments
- 1.5 overload capacity
- Wall-mounted with integrated drive main switch
Specifications
Amerage | 4.1 A |
Control Panel | Integrated |
Current Rating | 4.1 A |
Enclosure UL Type | 4X |
Frame Size | P2 |
Height | 10.12 in |
Horsepower | 3 HP |
Input Phase | 3-Phase |
Ip Rating | IP4X |
IP Rating | IP66 |
Length | 7.09 in |
Length | 180.18 mm |
Mounting | Wall |
Mounting Type | Wall |
Nema Rating | Type 4X |
Options | Drive main switch |
Output Current | 4.1 A |
Output Phase | 3-Phase |
Phases | 3-Phase A |
Series | ACS255 |
Size | 10.12x7.4x7.09 in |
UL Type | 4X |
Voltage | 600 V |
Voltage Range | 500-600 VAC |
Voltage Range | 500-600 V |
Voltage Rating | 600 VAC |
Voltage Rating | 3-500-600 VAC |
Weight | 6.61 lb |
Width | 7.4 in |
Width | 187.96 mm |
Package Dimensions (L x W x H) | 7.09 IN x 7.4 IN x 10.12 IN |
Package Dimensions (L x W x H) | 18.0086 cm x 18.796 cm x 25.7048 cm |
Package Weight (Imperial) | 6.610 L |
Package Weight (Metric) | 2.998 kg |
